Dormer Pramet R454 5/32 Inch CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L

Name: Dormer Pramet R454 5/32 Inch CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L
Brand: Dormer Pramet
SKU: DOR-R4545/32
Price: 39.47 GBP
Availability: InStock

SKU:DOR-R4545/32

Material Compatibility

Specifications at a glance

Type	Jobber Drill
Drill Diameter	5/32
Flute Length	36
Overall Length	74

View all specifications ↓

£39.47

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

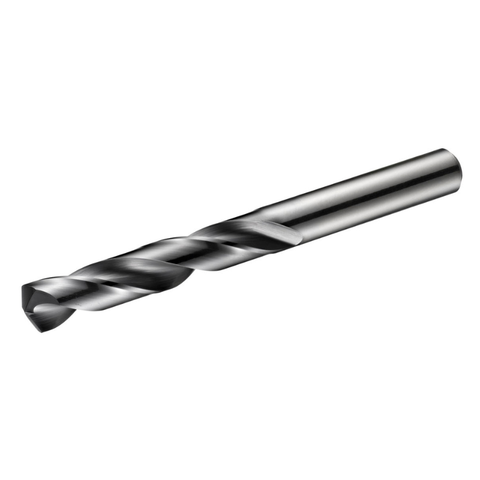

The Dormer Pramet R454 5/32 Inch Carbide TiAlN FORCE-X Stepped Shank Standard Series (X5D) drill is built for versatile, reliable hole making. Crafted from premium carbide and coated with Titanium Aluminium Nitride, it delivers durable performance across a range of materials, including steel, aluminium, and stainless steel. The stepped DIN 6537 L shank ensures secure engagement in common chucks and adapters, making it a dependable choice for both shop floors and professional jobs.

140° Split Point (4-Facet): Self-centering start that minimizes wandering and reduces the push force required, helping you begin holes cleanly and with less effort.
TiAlN Coating: Titanium Aluminium Nitride coating extends tool life and enhances performance when drilling harder materials, delivering longer intervals between sharpness checks.
CTW Flute Design: Special flute geometry increases drill strength and enables higher cutting speeds and feeds for faster, more consistent hole production.

Designed for high-quality, accurate holes at higher speeds and feeds (h9 tolerance), this drill supports efficient workflows and dependable results across multiple materials, making it a reliable addition to professional toolkits and busy production environments.

Part Numbers

Protool Part Number: DOR-R4545/32
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R454 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILLS DIN 6537 L

View full collection →

You are viewing DOR-R4545/32. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4543.0	3.00	28	66	6	£39.47	2 days
DOR-R4543.1	3.10	28	66	6	£39.47	2 days
DOR-R4541/8	1/8	28	66	6	£39.47	2 days
DOR-R4543.2	3.20	28	66	6	£39.47	2 days
DOR-R4543.3	3.30	28	66	6	£39.47	2 days
DOR-R4543.4	3.40	28	66	6	£39.47	2 days
DOR-R4543.5	3.50	28	66	6	£39.47	2 days
DOR-R4549/64	9/64	28	66	6	£39.47	2 days
DOR-R4543.6	3.60	28	66	6	£39.47	2 days
DOR-R4543.7	3.70	28	66	6	£39.47	2 days
DOR-R4543.8	3.80	36	74	6	£39.47	2 days
DOR-R4543.9	3.90	36	74	6	£39.47	2 days
DOR-R4545/32 Viewing	5/32	36	74	6	£39.47	2 days
DOR-R4544.0	4.00	36	74	6	£39.47	2 days
DOR-R4544.1	4.10	36	74	6	£40.66	2 days
DOR-R4544.2	4.20	36	74	6	£40.66	2 days
DOR-R4544.3	4.30	36	74	6	£40.66	2 days
DOR-R45411/64	11/64	36	74	6	£40.66	2 days
DOR-R4544.4	4.40	36	74	6	£40.66	2 days
DOR-R4544.5	4.50	36	74	6	£40.66	2 days
DOR-R4544.6	4.60	36	74	6	£40.66	2 days
DOR-R4544.7	4.70	36	74	6	£40.66	2 days
DOR-R4543/16	3/16	44	82	6	£40.66	2 days
DOR-R4544.8	4.80	44	82	6	£40.66	2 days
DOR-R4544.9	4.90	44	82	6	£40.66	2 days
DOR-R4545.0	5.00	44	82	6	£40.66	2 days
DOR-R4545.1	5.10	44	82	6	£40.66	2 days
DOR-R45413/64	13/64	44	82	6	£40.66	2 days
DOR-R4545.2	5.20	44	82	6	£40.66	2 days
DOR-R4545.5	5.50	44	82	6	£40.66	2 days
DOR-R4547/32	7/32	44	82	6	£40.66	2 days
DOR-R4545.6	5.60	44	82	6	£40.66	2 days
DOR-R4545.7	5.70	44	82	6	£40.66	2 days
DOR-R4545.8	5.80	44	82	6	£40.66	2 days
DOR-R45415/64	15/64	44	82	6	£40.66	2 days
DOR-R4546.0	6.00	44	82	6	£40.66	2 days
DOR-R4546.1	6.10	53	91	8	£46.79	2 days
DOR-R4546.2	6.20	53	91	8	£46.79	2 days
DOR-R4546.3	6.30	53	91	8	£46.79	2 days
DOR-R4541/4	1/4	53	91	8	£46.79	2 days
DOR-R4546.4	6.40	53	91	8	£46.79	2 days
DOR-R4546.5	6.50	53	91	8	£46.79	2 days
DOR-R4546.6	6.60	53	91	8	£46.79	2 days
DOR-R4546.7	6.70	53	91	8	£46.79	2 days
DOR-R45417/64	17/64	53	91	8	£46.79	2 days
DOR-R4546.8	6.80	53	91	8	£46.79	2 days
DOR-R4546.9	6.90	53	91	8	£46.79	2 days
DOR-R4547.0	7.00	53	91	8	£46.79	2 days
DOR-R4547.1	7.10	53	91	8	£46.79	2 days
DOR-R4549/32	9/32	53	91	8	£46.79	2 days
DOR-R4547.3	7.30	53	91	8	£46.79	2 days
DOR-R4547.4	7.40	53	91	8	£46.79	2 days
DOR-R4547.5	7.50	53	91	8	£46.79	2 days
DOR-R45419/64	19/64	53	91	8	£46.79	2 days
DOR-R4547.6	7.60	53	91	8	£46.79	2 days
DOR-R4547.7	7.70	53	91	8	£46.79	2 days
DOR-R4547.8	7.80	53	91	8	£46.79	2 days
DOR-R4547.9	7.90	53	91	8	£46.79	2 days
DOR-R4545/16	5/16	53	91	8	£46.79	2 days
DOR-R4548.0	8.00	53	91	8	£46.79	2 days
DOR-R4548.1	8.10	61	103	10	£52.87	2 days
DOR-R4548.2	8.20	61	103	10	£52.87	2 days
DOR-R45421/64	21/64	61	103	10	£52.87	2 days
DOR-R4548.4	8.40	61	103	10	£52.87	2 days
DOR-R4548.5	8.50	61	103	10	£52.87	2 days
DOR-R4548.6	8.60	61	103	10	£52.87	2 days
DOR-R4548.7	8.70	61	103	10	£52.87	2 days
DOR-R45411/32	11/32	61	103	10	£52.87	2 days
DOR-R4548.8	8.80	61	103	10	£52.87	2 days
DOR-R4548.9	8.90	61	103	10	£52.87	2 days
DOR-R4549.0	9.00	61	103	10	£52.87	2 days
DOR-R4549.1	9.10	61	103	10	£52.87	2 days
DOR-R45423/64	23/64	61	103	10	£52.87	2 days
DOR-R4549.3	9.30	61	103	10	£52.87	2 days
DOR-R4549.4	9.40	61	103	10	£52.87	2 days
DOR-R4549.5	9.50	61	103	10	£52.87	2 days
DOR-R4543/8	3/8	61	103	10	£52.87	2 days
DOR-R4549.6	9.60	61	103	10	£52.87	2 days
DOR-R4549.7	9.70	61	103	10	£52.87	2 days
DOR-R4549.8	9.80	61	103	10	£52.87	2 days
DOR-R4549.9	9.90	61	103	10	£52.87	2 days
DOR-R45425/64	25/64	61	103	10	£52.87	2 days
DOR-R45410.0	10.00	61	103	10	£52.87	2 days
DOR-R45410.1	10.10	70	118	12	£77.05	2 days
DOR-R45410.2	10.20	70	118	12	£77.05	2 days
DOR-R45410.3	10.30	70	118	12	£77.05	2 days
DOR-R45413/32	13/32	70	118	12	£77.05	2 days
DOR-R45410.4	10.40	70	118	12	£77.05	2 days
DOR-R45410.5	10.50	70	118	12	£77.05	2 days
DOR-R45410.6	10.60	70	118	12	£77.05	2 days
DOR-R45427/64	27/64	70	118	12	£77.05	2 days
DOR-R45411.0	11.00	70	118	12	£77.05	2 days
DOR-R4547/16	7/16	70	118	12	£77.05	2 days
DOR-R45411.2	11.20	70	118	12	£77.05	2 days
DOR-R45411.4	11.40	70	118	12	£77.05	2 days
DOR-R45411.5	11.50	70	118	12	£77.05	2 days
DOR-R45429/64	29/64	70	118	12	£77.05	2 days
DOR-R45411.6	11.60	70	118	12	£77.05	2 days
DOR-R45411.8	11.80	70	118	12	£77.05	2 days
DOR-R45415/32	15/32	70	118	12	£77.05	2 days
DOR-R45412.0	12.00	70	118	12	£77.05	2 days
DOR-R45412.1	12.10	76	124	14	£99.54	2 days
DOR-R45412.2	12.20	76	124	14	£99.54	2 days
DOR-R45431/64	31/64	76	124	14	£99.54	2 days
DOR-R45412.5	12.50	76	124	14	£99.54	2 days
DOR-R45412.7	12.70	76	124	14	£99.54	2 days
DOR-R4541/2	1/2	76	124	14	£99.54	2 days
DOR-R45412.8	12.80	76	124	14	£99.54	2 days
DOR-R45413.0	13.00	76	124	14	£99.54	2 days
DOR-R45433/64	33/64	76	124	14	£99.54	2 days
DOR-R45417/32	17/32	76	124	14	£99.54	2 days
DOR-R45413.5	13.50	76	124	14	£99.54	2 days
DOR-R45413.8	13.80	76	124	14	£99.54	2 days
DOR-R45435/64	35/64	76	124	14	£99.54	2 days
DOR-R45414.0	14.00	76	124	14	£99.54	2 days
DOR-R45414.25	14.25	82	133	16	£128.23	2 days
DOR-R4549/16	9/16	82	133	16	£128.23	2 days
DOR-R45414.5	14.50	82	133	16	£128.23	2 days
DOR-R45437/64	37/64	82	133	16	£128.23	2 days
DOR-R45414.8	14.80	82	133	16	£128.23	2 days
DOR-R45415.0	15.00	82	133	16	£128.23	2 days
DOR-R45419/32	19/32	82	133	16	£128.23	2 days
DOR-R45415.1	15.10	82	133	16	£128.23	2 days
DOR-R45439/64	39/64	82	133	16	£128.23	2 days
DOR-R45415.5	15.50	82	133	16	£128.23	2 days
DOR-R45415.8	15.80	82	133	16	£128.23	2 days
DOR-R4545/8	5/8	82	133	16	£128.23	2 days
DOR-R45416.0	16.00	82	133	16	£128.23	2 days
DOR-R45441/64	41/64	91	143	18	£201.90	2 days
DOR-R45416.5	16.50	91	143	18	£201.90	2 days
DOR-R45421/32	21/32	91	143	18	£201.90	2 days
DOR-R45417.0	17.00	91	143	18	£201.90	2 days
DOR-R45443/64	43/64	91	143	18	£201.90	2 days
DOR-R45411/16	11/16	91	143	18	£201.90	2 days
DOR-R45417.5	17.50	91	143	18	£201.90	2 days
DOR-R45417.8	17.80	91	143	18	£201.90	2 days
DOR-R45445/64	45/64	91	143	18	£201.90	2 days
DOR-R45418.0	18.00	91	143	18	£201.90	2 days
DOR-R45423/32	23/32	99	153	20	£224.40	2 days
DOR-R45418.5	18.50	99	153	20	£224.40	2 days
DOR-R45447/64	47/64	99	153	20	£224.40	2 days
DOR-R45419.0	19.00	99	153	20	£224.40	2 days
DOR-R4543/4	3/4	99	153	20	£224.40	2 days
DOR-R45419.5	19.50	99	153	20	£224.40	2 days
DOR-R45419.8	19.80	99	153	20	£224.40	2 days
DOR-R45420.0	20.00	99	153	20	£224.40	2 days
DOR-R454A	5.94	44	82	6	£40.66	2 days
DOR-R454B	6.05	53	91	8	£46.79	2 days
DOR-R454C	6.15	53	91	8	£46.79	2 days
DOR-R454D	6.25	53	91	8	£46.79	2 days
DOR-R454E	6.35	53	91	8	£46.79	2 days
DOR-R454F	6.53	53	91	8	£46.79	2 days
DOR-R454G	6.63	53	91	8	£46.79	2 days
DOR-R454H	6.76	53	91	8	£46.79	2 days
DOR-R454I	6.91	53	91	8	£46.79	2 days
DOR-R454J	7.04	53	91	8	£46.79	2 days
DOR-R454L	7.37	53	91	8	£46.79	2 days
DOR-R454N	7.67	53	91	8	£46.79	2 days
DOR-R454O	8.03	61	103	10	£52.87	2 days
DOR-R454Q	8.43	61	103	10	£52.87	2 days
DOR-R454R	8.61	61	103	10	£52.87	2 days
DOR-R454S	8.84	61	103	10	£52.87	2 days
DOR-R454U	9.35	61	103	10	£52.87	2 days
DOR-R454W	9.80	61	103	10	£52.87	2 days
DOR-R454X	10.08	70	118	12	£77.05	2 days
DOR-R454Y	10.26	70	118	12	£77.05	2 days
DOR-R454Z	10.49	70	118	12	£77.05	2 days
DOR-R454N1	5.79	44	82	6	£40.66	2 days
DOR-R454N2	5.61	44	82	6	£40.66	2 days
DOR-R454N3	5.41	44	82	6	£40.66	2 days
DOR-R454N4	5.31	44	82	6	£40.66	2 days
DOR-R454N5	5.22	44	82	6	£40.66	2 days
DOR-R454N6	5.18	44	82	6	£40.66	2 days
DOR-R454N7	5.11	44	82	6	£40.66	2 days
DOR-R454N8	5.06	44	82	6	£40.66	2 days
DOR-R454N9	4.98	44	82	6	£40.66	2 days
DOR-R454N10	4.92	44	82	6	£40.66	2 days
DOR-R454N11	4.85	44	82	6	£40.66	2 days
DOR-R454N14	4.62	36	74	6	£40.66	2 days
DOR-R454N15	4.57	36	74	6	£40.66	2 days
DOR-R454N16	4.50	36	74	6	£40.66	2 days
DOR-R454N19	4.22	36	74	6	£40.66	2 days
DOR-R454N20	4.09	36	74	6	£40.66	2 days
DOR-R454N21	4.04	36	74	6	£40.66	2 days
DOR-R454N24	3.86	36	74	6	£39.47	2 days
DOR-R454N26	3.73	36	74	6	£39.47	2 days
DOR-R454N27	3.66	28	66	6	£39.47	2 days
DOR-R454N28	3.57	28	66	6	£39.47	2 days
DOR-R454N29	3.45	28	66	6	£39.47	2 days
DOR-R454N30	3.26	28	66	6	£39.47	2 days
