Dormer Pramet R454 N16 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L

Please log in here to access all benefits, including promotional discounts and faster checkouts.

Dormer Pramet R454 N16 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L

Name: Dormer Pramet R454 N16 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILL DIN 6537 L
Brand: Dormer Pramet
SKU: DOR-R454N16
Price: 40.66 GBP
Availability: InStock

SKU:DOR-R454N16

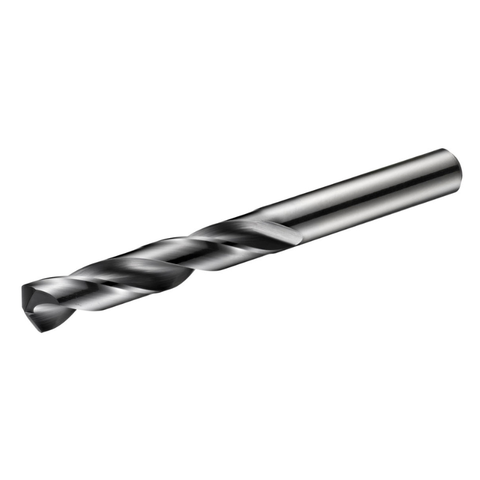

The Dormer Pramet R454 N16 carbide drill is a high‑performance twist drill designed for precise, reliable hole making across steel, aluminium, and stainless steel. With a DIN 6537 L stepped shank,... Read more ↓

Material Compatibility

Specifications at a glance

Type	Jobber Drill
Drill Diameter	4.50
Flute Length	36
Overall Length	74

View all specifications ↓

£40.66

Prices shown ex. VAT

2 days estimated lead time — subject to availability

View Other Sizes →

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Description

140° Four‑Facet Split Point: Self‑centering starting geometry reduces wandering and lowers the thrust required to begin each hole, helping you start cleanly every time.
TiAlN Coating for Longer Life: The Titanium Aluminium Nitride coating extends tool life and improves cutting performance when drilling harder materials, reducing downtime and replacement costs.
CTW Flute Design and Premium Carbide: The reinforced flute geometry and top‑quality carbide deliver higher cutting speeds and feeds while maintaining hole quality, enabling consistent results across steel, aluminium, and stainless steel with h9 hole tolerance.

The combination of hard‑wearing carbide, TiAlN protection, and optimized flute geometry means this drill can handle busy production cycles, deliver accurate holes quickly, and keep your workflow moving from start to finish.

Part Numbers

Protool Part Number: DOR-R454N16
Brand: Dormer Pramet
Category: Drill

No downloads are attached to this product yet.
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Dormer Pramet R454 CARBIDE TIALN FORCE-X STEPPED SHANK STANDARD SERIES (X5D) DRILLS DIN 6537 L

View full collection →

You are viewing DOR-R454N16. Click any other SKU to view its full details.

Product SKU	Drill Diameter	Flute Length	Overall Length	Shank Diameter	Price	Stock

DOR-R4543.0	3.00	28	66	6	£39.47	2 days
DOR-R4543.1	3.10	28	66	6	£39.47	2 days
DOR-R4541/8	1/8	28	66	6	£39.47	2 days
DOR-R4543.2	3.20	28	66	6	£39.47	2 days
DOR-R4543.3	3.30	28	66	6	£39.47	2 days
DOR-R4543.4	3.40	28	66	6	£39.47	2 days
DOR-R4543.5	3.50	28	66	6	£39.47	2 days
DOR-R4549/64	9/64	28	66	6	£39.47	2 days
DOR-R4543.6	3.60	28	66	6	£39.47	2 days
DOR-R4543.7	3.70	28	66	6	£39.47	2 days
DOR-R4543.8	3.80	36	74	6	£39.47	2 days
DOR-R4543.9	3.90	36	74	6	£39.47	2 days
DOR-R4545/32	5/32	36	74	6	£39.47	2 days
DOR-R4544.0	4.00	36	74	6	£39.47	2 days
DOR-R4544.1	4.10	36	74	6	£40.66	2 days
DOR-R4544.2	4.20	36	74	6	£40.66	2 days
DOR-R4544.3	4.30	36	74	6	£40.66	2 days
DOR-R45411/64	11/64	36	74	6	£40.66	2 days
DOR-R4544.4	4.40	36	74	6	£40.66	2 days
DOR-R4544.5	4.50	36	74	6	£40.66	2 days
DOR-R4544.6	4.60	36	74	6	£40.66	2 days
DOR-R4544.7	4.70	36	74	6	£40.66	2 days
DOR-R4543/16	3/16	44	82	6	£40.66	2 days
DOR-R4544.8	4.80	44	82	6	£40.66	2 days
DOR-R4544.9	4.90	44	82	6	£40.66	2 days
DOR-R4545.0	5.00	44	82	6	£40.66	2 days
DOR-R4545.1	5.10	44	82	6	£40.66	2 days
DOR-R45413/64	13/64	44	82	6	£40.66	2 days
DOR-R4545.2	5.20	44	82	6	£40.66	2 days
DOR-R4545.5	5.50	44	82	6	£40.66	2 days
DOR-R4547/32	7/32	44	82	6	£40.66	2 days
DOR-R4545.6	5.60	44	82	6	£40.66	2 days
DOR-R4545.7	5.70	44	82	6	£40.66	2 days
DOR-R4545.8	5.80	44	82	6	£40.66	2 days
DOR-R45415/64	15/64	44	82	6	£40.66	2 days
DOR-R4546.0	6.00	44	82	6	£40.66	2 days
DOR-R4546.1	6.10	53	91	8	£46.79	2 days
DOR-R4546.2	6.20	53	91	8	£46.79	2 days
DOR-R4546.3	6.30	53	91	8	£46.79	2 days
DOR-R4541/4	1/4	53	91	8	£46.79	2 days
DOR-R4546.4	6.40	53	91	8	£46.79	2 days
DOR-R4546.5	6.50	53	91	8	£46.79	2 days
DOR-R4546.6	6.60	53	91	8	£46.79	2 days
DOR-R4546.7	6.70	53	91	8	£46.79	2 days
DOR-R45417/64	17/64	53	91	8	£46.79	2 days
DOR-R4546.8	6.80	53	91	8	£46.79	2 days
DOR-R4546.9	6.90	53	91	8	£46.79	2 days
DOR-R4547.0	7.00	53	91	8	£46.79	2 days
DOR-R4547.1	7.10	53	91	8	£46.79	2 days
DOR-R4549/32	9/32	53	91	8	£46.79	2 days
DOR-R4547.3	7.30	53	91	8	£46.79	2 days
DOR-R4547.4	7.40	53	91	8	£46.79	2 days
DOR-R4547.5	7.50	53	91	8	£46.79	2 days
DOR-R45419/64	19/64	53	91	8	£46.79	2 days
DOR-R4547.6	7.60	53	91	8	£46.79	2 days
DOR-R4547.7	7.70	53	91	8	£46.79	2 days
DOR-R4547.8	7.80	53	91	8	£46.79	2 days
DOR-R4547.9	7.90	53	91	8	£46.79	2 days
DOR-R4545/16	5/16	53	91	8	£46.79	2 days
DOR-R4548.0	8.00	53	91	8	£46.79	2 days
DOR-R4548.1	8.10	61	103	10	£52.87	2 days
DOR-R4548.2	8.20	61	103	10	£52.87	2 days
DOR-R45421/64	21/64	61	103	10	£52.87	2 days
DOR-R4548.4	8.40	61	103	10	£52.87	2 days
DOR-R4548.5	8.50	61	103	10	£52.87	2 days
DOR-R4548.6	8.60	61	103	10	£52.87	2 days
DOR-R4548.7	8.70	61	103	10	£52.87	2 days
DOR-R45411/32	11/32	61	103	10	£52.87	2 days
DOR-R4548.8	8.80	61	103	10	£52.87	2 days
DOR-R4548.9	8.90	61	103	10	£52.87	2 days
DOR-R4549.0	9.00	61	103	10	£52.87	2 days
DOR-R4549.1	9.10	61	103	10	£52.87	2 days
DOR-R45423/64	23/64	61	103	10	£52.87	2 days
DOR-R4549.3	9.30	61	103	10	£52.87	2 days
DOR-R4549.4	9.40	61	103	10	£52.87	2 days
DOR-R4549.5	9.50	61	103	10	£52.87	2 days
DOR-R4543/8	3/8	61	103	10	£52.87	2 days
DOR-R4549.6	9.60	61	103	10	£52.87	2 days
DOR-R4549.7	9.70	61	103	10	£52.87	2 days
DOR-R4549.8	9.80	61	103	10	£52.87	2 days
DOR-R4549.9	9.90	61	103	10	£52.87	2 days
DOR-R45425/64	25/64	61	103	10	£52.87	2 days
DOR-R45410.0	10.00	61	103	10	£52.87	2 days
DOR-R45410.1	10.10	70	118	12	£77.05	2 days
DOR-R45410.2	10.20	70	118	12	£77.05	2 days
DOR-R45410.3	10.30	70	118	12	£77.05	2 days
DOR-R45413/32	13/32	70	118	12	£77.05	2 days
DOR-R45410.4	10.40	70	118	12	£77.05	2 days
DOR-R45410.5	10.50	70	118	12	£77.05	2 days
DOR-R45410.6	10.60	70	118	12	£77.05	2 days
DOR-R45427/64	27/64	70	118	12	£77.05	2 days
DOR-R45411.0	11.00	70	118	12	£77.05	2 days
DOR-R4547/16	7/16	70	118	12	£77.05	2 days
DOR-R45411.2	11.20	70	118	12	£77.05	2 days
DOR-R45411.4	11.40	70	118	12	£77.05	2 days
DOR-R45411.5	11.50	70	118	12	£77.05	2 days
DOR-R45429/64	29/64	70	118	12	£77.05	2 days
DOR-R45411.6	11.60	70	118	12	£77.05	2 days
DOR-R45411.8	11.80	70	118	12	£77.05	2 days
DOR-R45415/32	15/32	70	118	12	£77.05	2 days
DOR-R45412.0	12.00	70	118	12	£77.05	2 days
DOR-R45412.1	12.10	76	124	14	£99.54	2 days
DOR-R45412.2	12.20	76	124	14	£99.54	2 days
DOR-R45431/64	31/64	76	124	14	£99.54	2 days
DOR-R45412.5	12.50	76	124	14	£99.54	2 days
DOR-R45412.7	12.70	76	124	14	£99.54	2 days
DOR-R4541/2	1/2	76	124	14	£99.54	2 days
DOR-R45412.8	12.80	76	124	14	£99.54	2 days
DOR-R45413.0	13.00	76	124	14	£99.54	2 days
DOR-R45433/64	33/64	76	124	14	£99.54	2 days
DOR-R45417/32	17/32	76	124	14	£99.54	2 days
DOR-R45413.5	13.50	76	124	14	£99.54	2 days
DOR-R45413.8	13.80	76	124	14	£99.54	2 days
DOR-R45435/64	35/64	76	124	14	£99.54	2 days
DOR-R45414.0	14.00	76	124	14	£99.54	2 days
DOR-R45414.25	14.25	82	133	16	£128.23	2 days
DOR-R4549/16	9/16	82	133	16	£128.23	2 days
DOR-R45414.5	14.50	82	133	16	£128.23	2 days
DOR-R45437/64	37/64	82	133	16	£128.23	2 days
DOR-R45414.8	14.80	82	133	16	£128.23	2 days
DOR-R45415.0	15.00	82	133	16	£128.23	2 days
DOR-R45419/32	19/32	82	133	16	£128.23	2 days
DOR-R45415.1	15.10	82	133	16	£128.23	2 days
DOR-R45439/64	39/64	82	133	16	£128.23	2 days
DOR-R45415.5	15.50	82	133	16	£128.23	2 days
DOR-R45415.8	15.80	82	133	16	£128.23	2 days
DOR-R4545/8	5/8	82	133	16	£128.23	2 days
DOR-R45416.0	16.00	82	133	16	£128.23	2 days
DOR-R45441/64	41/64	91	143	18	£201.90	2 days
DOR-R45416.5	16.50	91	143	18	£201.90	2 days
DOR-R45421/32	21/32	91	143	18	£201.90	2 days
DOR-R45417.0	17.00	91	143	18	£201.90	2 days
DOR-R45443/64	43/64	91	143	18	£201.90	2 days
DOR-R45411/16	11/16	91	143	18	£201.90	2 days
DOR-R45417.5	17.50	91	143	18	£201.90	2 days
DOR-R45417.8	17.80	91	143	18	£201.90	2 days
DOR-R45445/64	45/64	91	143	18	£201.90	2 days
DOR-R45418.0	18.00	91	143	18	£201.90	2 days
DOR-R45423/32	23/32	99	153	20	£224.40	2 days
DOR-R45418.5	18.50	99	153	20	£224.40	2 days
DOR-R45447/64	47/64	99	153	20	£224.40	2 days
DOR-R45419.0	19.00	99	153	20	£224.40	2 days
DOR-R4543/4	3/4	99	153	20	£224.40	2 days
DOR-R45419.5	19.50	99	153	20	£224.40	2 days
DOR-R45419.8	19.80	99	153	20	£224.40	2 days
DOR-R45420.0	20.00	99	153	20	£224.40	2 days
DOR-R454A	5.94	44	82	6	£40.66	2 days
DOR-R454B	6.05	53	91	8	£46.79	2 days
DOR-R454C	6.15	53	91	8	£46.79	2 days
DOR-R454D	6.25	53	91	8	£46.79	2 days
DOR-R454E	6.35	53	91	8	£46.79	2 days
DOR-R454F	6.53	53	91	8	£46.79	2 days
DOR-R454G	6.63	53	91	8	£46.79	2 days
DOR-R454H	6.76	53	91	8	£46.79	2 days
DOR-R454I	6.91	53	91	8	£46.79	2 days
DOR-R454J	7.04	53	91	8	£46.79	2 days
DOR-R454L	7.37	53	91	8	£46.79	2 days
DOR-R454N	7.67	53	91	8	£46.79	2 days
DOR-R454O	8.03	61	103	10	£52.87	2 days
DOR-R454Q	8.43	61	103	10	£52.87	2 days
DOR-R454R	8.61	61	103	10	£52.87	2 days
DOR-R454S	8.84	61	103	10	£52.87	2 days
DOR-R454U	9.35	61	103	10	£52.87	2 days
DOR-R454W	9.80	61	103	10	£52.87	2 days
DOR-R454X	10.08	70	118	12	£77.05	2 days
DOR-R454Y	10.26	70	118	12	£77.05	2 days
DOR-R454Z	10.49	70	118	12	£77.05	2 days
DOR-R454N1	5.79	44	82	6	£40.66	2 days
DOR-R454N2	5.61	44	82	6	£40.66	2 days
DOR-R454N3	5.41	44	82	6	£40.66	2 days
DOR-R454N4	5.31	44	82	6	£40.66	2 days
DOR-R454N5	5.22	44	82	6	£40.66	2 days
DOR-R454N6	5.18	44	82	6	£40.66	2 days
DOR-R454N7	5.11	44	82	6	£40.66	2 days
DOR-R454N8	5.06	44	82	6	£40.66	2 days
DOR-R454N9	4.98	44	82	6	£40.66	2 days
DOR-R454N10	4.92	44	82	6	£40.66	2 days
DOR-R454N11	4.85	44	82	6	£40.66	2 days
DOR-R454N14	4.62	36	74	6	£40.66	2 days
DOR-R454N15	4.57	36	74	6	£40.66	2 days
DOR-R454N16 Viewing	4.50	36	74	6	£40.66	2 days
DOR-R454N19	4.22	36	74	6	£40.66	2 days
DOR-R454N20	4.09	36	74	6	£40.66	2 days
DOR-R454N21	4.04	36	74	6	£40.66	2 days
DOR-R454N24	3.86	36	74	6	£39.47	2 days
DOR-R454N26	3.73	36	74	6	£39.47	2 days
DOR-R454N27	3.66	28	66	6	£39.47	2 days
DOR-R454N28	3.57	28	66	6	£39.47	2 days
DOR-R454N29	3.45	28	66	6	£39.47	2 days
DOR-R454N30	3.26	28	66	6	£39.47	2 days
