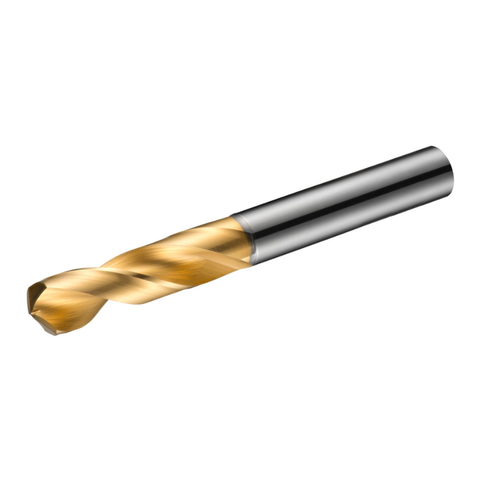

Dormer Pramet R520 9.60 mm CARBIDE TiN CDX STRAIGHT SHANK STUB DRILL DIN 6539
| Type | Short Series |
| Drill Diameter | 9.60 |
| Flute Length | 43 |
| Overall Length | 89 |
Learn more about Klarna
Description
The Dormer Pramet R520 9.60 mm carbide straight shank stub drill (DIN 6539) is designed for precise, repeatable hole making across steel, aluminium and stainless steel. The straight shank fits a wide range of chucks and collets for quick setup, delivering clean, accurate holes with an h8 tolerance.
Its 130° point geometry helps self-center and reduce the push force required to start holes, while the Titanium Nitride coating extends tool life and maintains performance when drilling harder materials.
- 130° point for self-centering: Starts holes cleanly with reduced startup effort, improving first-pass accuracy.
- Titanium Nitride coating: Extends tool life and sustains performance when drilling harder materials, reducing downtime.
- Convex cutting edges: Aids chip breaking and removal, enabling higher cutting speeds and feeds for faster, reliable drilling.
With a premium carbide core and TiN coating, this drill delivers consistent, high-quality holes at speed while resisting wear. It achieves h8 hole tolerance across common engineering tasks, making it suitable for production runs and demanding applications. The DIN 6539 straight shank and compatible holders provide smooth, repeatable setup, helping to reduce changeover time and boost overall workflow efficiency.
Part Numbers
- Protool Part Number
- DOR-R5209.6
- Brand
- Dormer Pramet
- Category
- Drill
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Dormer Pramet R520 CARBIDE TiN CDX STRAIGHT SHANK STUB DRILLS DIN 6539
View full collection →You are viewing DOR-R5209.6. Click any other SKU to view its full details.
| Product SKU | Drill Diameter | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|
| DOR-R5203.0 | 3.00 | 16 | 46 | 3 | £35.16 | 2 days | |
| DOR-R5203.1 | 3.10 | 18 | 49 | 3.1 | £35.16 | 2 days | |
| DOR-R5201/8 | 1/8 | 18 | 49 | 3.18 | £35.16 | 2 days | |
| DOR-R5203.2 | 3.20 | 18 | 49 | 3.2 | £35.16 | 2 days | |
| DOR-R5203.3 | 3.30 | 18 | 49 | 3.3 | £35.16 | 2 days | |
| DOR-R5203.4 | 3.40 | 20 | 52 | 3.4 | £35.16 | 2 days | |
| DOR-R5203.5 | 3.50 | 20 | 52 | 3.5 | £36.39 | 2 days | |
| DOR-R5203.6 | 3.60 | 20 | 52 | 3.6 | £37.41 | 2 days | |
| DOR-R5203.7 | 3.70 | 20 | 52 | 3.7 | £37.41 | 2 days | |
| DOR-R5203.8 | 3.80 | 22 | 55 | 3.8 | £37.41 | 2 days | |
| DOR-R5203.9 | 3.90 | 22 | 55 | 3.9 | £37.41 | 2 days | |
| DOR-R5204.0 | 4.00 | 22 | 55 | 4 | £37.41 | 2 days | |
| DOR-R5204.1 | 4.10 | 22 | 55 | 4.1 | £38.70 | 2 days | |
| DOR-R5204.2 | 4.20 | 22 | 55 | 4.2 | £38.70 | 2 days | |
| DOR-R5204.3 | 4.30 | 24 | 58 | 4.3 | £38.70 | 2 days | |
| DOR-R5204.4 | 4.40 | 24 | 58 | 4.4 | £38.70 | 2 days | |
| DOR-R5204.5 | 4.50 | 24 | 58 | 4.5 | £41.12 | 2 days | |
| DOR-R5204.6 | 4.60 | 24 | 58 | 4.6 | £41.12 | 2 days | |
| DOR-R5204.7 | 4.70 | 24 | 58 | 4.7 | £41.12 | 2 days | |
| DOR-R5204.8 | 4.80 | 26 | 62 | 4.8 | £41.12 | 2 days | |
| DOR-R5204.9 | 4.90 | 26 | 62 | 4.9 | £41.12 | 2 days | |
| DOR-R5205.0 | 5.00 | 26 | 62 | 5 | £43.53 | 2 days | |
| DOR-R5205.1 | 5.10 | 26 | 62 | 5.1 | £43.53 | 2 days | |
| DOR-R5205.2 | 5.20 | 26 | 62 | 5.2 | £43.53 | 2 days | |
| DOR-R5205.3 | 5.30 | 26 | 62 | 5.3 | £43.53 | 2 days | |
| DOR-R5205.4 | 5.40 | 28 | 66 | 5.4 | £43.53 | 2 days | |
| DOR-R5205.5 | 5.50 | 28 | 66 | 5.5 | £48.37 | 2 days | |
| DOR-R5205.6 | 5.60 | 28 | 66 | 5.6 | £48.37 | 2 days | |
| DOR-R5205.8 | 5.80 | 28 | 66 | 5.8 | £48.37 | 2 days | |
| DOR-R5205.9 | 5.90 | 28 | 66 | 5.9 | £48.37 | 2 days | |
| DOR-R5206.0 | 6.00 | 28 | 66 | 6 | £53.20 | 2 days | |
| DOR-R5206.1 | 6.10 | 31 | 70 | 6.1 | £56.24 | 2 days | |
| DOR-R5206.2 | 6.20 | 31 | 70 | 6.2 | £56.24 | 2 days | |
| DOR-R5206.3 | 6.30 | 31 | 70 | 6.3 | £56.24 | 2 days | |
| DOR-R5201/4 | 1/4 | 31 | 70 | 6.35 | £56.24 | 2 days | |
| DOR-R5206.4 | 6.40 | 31 | 70 | 6.4 | £56.24 | 2 days | |
| DOR-R5206.5 | 6.50 | 31 | 70 | 6.5 | £56.24 | 2 days | |
| DOR-R5206.6 | 6.60 | 31 | 70 | 6.6 | £59.61 | 2 days | |
| DOR-R5206.7 | 6.70 | 31 | 70 | 6.7 | £59.61 | 2 days | |
| DOR-R5206.8 | 6.80 | 34 | 74 | 6.8 | £59.61 | 2 days | |
| DOR-R5206.9 | 6.90 | 34 | 74 | 6.9 | £59.61 | 2 days | |
| DOR-R5207.0 | 7.00 | 34 | 74 | 7 | £59.61 | 2 days | |
| DOR-R5207.1 | 7.10 | 34 | 74 | 7.1 | £61.30 | 2 days | |
| DOR-R5207.2 | 7.20 | 34 | 74 | 7.2 | £61.30 | 2 days | |
| DOR-R5207.3 | 7.30 | 34 | 74 | 7.3 | £61.30 | 2 days | |
| DOR-R5207.4 | 7.40 | 34 | 74 | 7.4 | £61.30 | 2 days | |
| DOR-R5207.5 | 7.50 | 34 | 74 | 7.5 | £61.30 | 2 days | |
| DOR-R5207.6 | 7.60 | 37 | 79 | 7.6 | £62.43 | 2 days | |
| DOR-R5207.7 | 7.70 | 37 | 79 | 7.7 | £62.43 | 2 days | |
| DOR-R5207.8 | 7.80 | 37 | 79 | 7.8 | £62.43 | 2 days | |
| DOR-R5205/16 | 5/16 | 37 | 79 | 7.94 | £62.43 | 2 days | |
| DOR-R5208.0 | 8.00 | 37 | 79 | 8 | £62.43 | 2 days | |
| DOR-R5208.1 | 8.10 | 37 | 79 | 8.1 | £67.49 | 2 days | |
| DOR-R5208.2 | 8.20 | 37 | 79 | 8.2 | £67.49 | 2 days | |
| DOR-R5208.3 | 8.30 | 37 | 79 | 8.3 | £67.49 | 2 days | |
| DOR-R5208.4 | 8.40 | 37 | 79 | 8.4 | £67.49 | 2 days | |
| DOR-R5208.5 | 8.50 | 37 | 79 | 8.5 | £67.49 | 2 days | |
| DOR-R5208.6 | 8.60 | 40 | 84 | 8.6 | £68.61 | 2 days | |
| DOR-R5208.7 | 8.70 | 40 | 84 | 8.7 | £68.61 | 2 days | |
| DOR-R5208.8 | 8.80 | 40 | 84 | 8.8 | £68.61 | 2 days | |
| DOR-R5209.0 | 9.00 | 40 | 84 | 9 | £71.99 | 2 days | |
| DOR-R5209.1 | 9.10 | 40 | 84 | 9.1 | £73.67 | 2 days | |
| DOR-R5209.3 | 9.30 | 40 | 84 | 9.3 | £73.67 | 2 days | |
| DOR-R5209.5 | 9.50 | 40 | 84 | 9.5 | £73.67 | 2 days | |
| DOR-R5203/8 | 3/8 | 43 | 89 | 9.52 | £75.36 | 2 days | |
| DOR-R5209.6 Viewing | 9.60 | 43 | 89 | 9.6 | £75.36 | 2 days | |
| DOR-R5209.7 | 9.70 | 43 | 89 | 9.7 | £75.36 | 2 days | |
| DOR-R5209.8 | 9.80 | 43 | 89 | 9.8 | £75.36 | 2 days | |
| DOR-R52010.0 | 10.00 | 43 | 89 | 10 | £75.36 | 2 days | |
| DOR-R52010.1 | 10.10 | 43 | 89 | 10.1 | £87.17 | 2 days | |
| DOR-R52010.2 | 10.20 | 43 | 89 | 10.2 | £87.17 | 2 days | |
| DOR-R52010.3 | 10.30 | 43 | 89 | 10.3 | £87.17 | 2 days | |
| DOR-R52010.4 | 10.40 | 43 | 89 | 10.4 | £87.17 | 2 days | |
| DOR-R52010.5 | 10.50 | 43 | 89 | 10.5 | £87.17 | 2 days | |
| DOR-R52011.0 | 11.00 | 47 | 95 | 11 | £98.42 | 2 days | |
| DOR-R5207/16 | 7/16 | 47 | 95 | 11.11 | £101.79 | 2 days | |
| DOR-R52011.2 | 11.20 | 47 | 95 | 11.2 | £101.79 | 2 days | |
| DOR-R52011.5 | 11.50 | 47 | 95 | 11.5 | £101.79 | 2 days | |
| DOR-R52012.0 | 12.00 | 51 | 102 | 12 | £103.48 | 2 days | |
| DOR-R52012.5 | 12.50 | 51 | 102 | 12.5 | £114.73 | 2 days | |
| DOR-R5201/2 | 1/2 | 51 | 102 | 12.7 | £125.98 | 2 days | |
| DOR-R52013.0 | 13.00 | 51 | 102 | 13 | £125.98 | 2 days | |
| DOR-R52013.5 | 13.50 | 54 | 107 | 13.5 | £128.23 | 2 days | |
| DOR-R52014.0 | 14.00 | 54 | 107 | 14 | £131.60 | 2 days | |
| DOR-R52014.2 | 14.20 | 56 | 111 | 14.2 | £164.78 | 2 days | |
| DOR-R52014.25 | 14.25 | 56 | 111 | 14.25 | £164.78 | 2 days | |
| DOR-R52014.5 | 14.50 | 56 | 111 | 14.5 | £164.78 | 2 days | |
| DOR-R52015.0 | 15.00 | 56 | 111 | 15 | £198.53 | 2 days | |
| DOR-R52015.1 | 15.10 | 58 | 115 | 15.1 | £198.53 | 2 days | |
| DOR-R5205/8 | 5/8 | 58 | 115 | 15.88 | £198.53 | 2 days | |
| DOR-R52016.0 | 16.00 | 58 | 115 | 16 | £201.34 | 2 days | |
| DOR-R52016.5 | 16.50 | 60 | 119 | 16.5 | £262.08 | 2 days |
