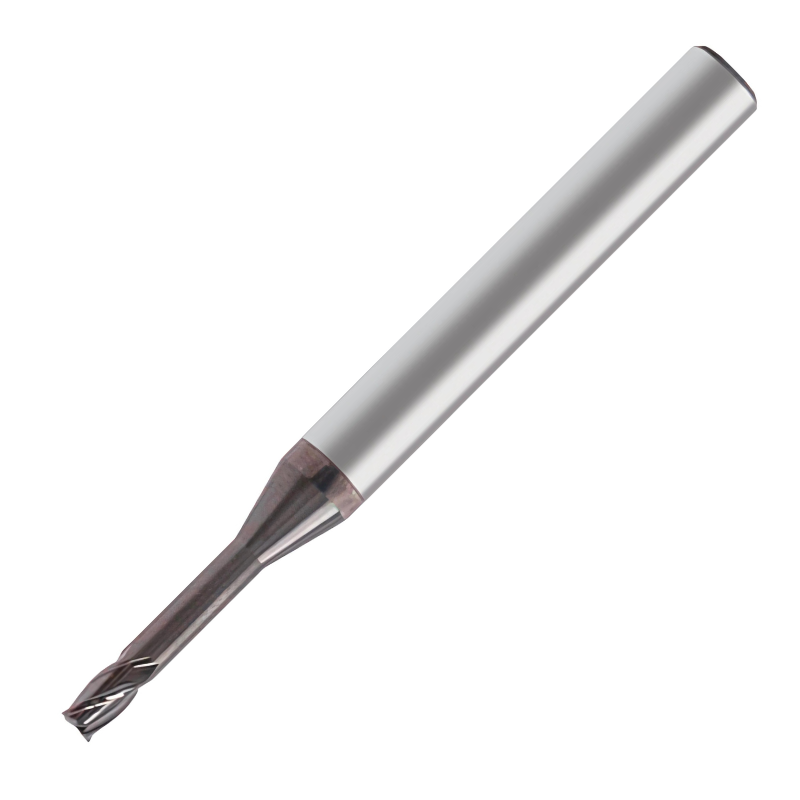

Europa Tools Carbide End Mill 4 Flute Corner Radius - Extended Neck - Pulsar DMX - 1.2mm x R0.1 x 6mm
SKU:EUR-1143650121
The Europa Tools Carbide End Mill is a precision cutting solution designed for engineers and machinists tackling hard‑to‑reach pockets and pre‑hardened steels. With a four‑flute geometry, corner ...
Read more ↓
Material Compatibility
P
K
H

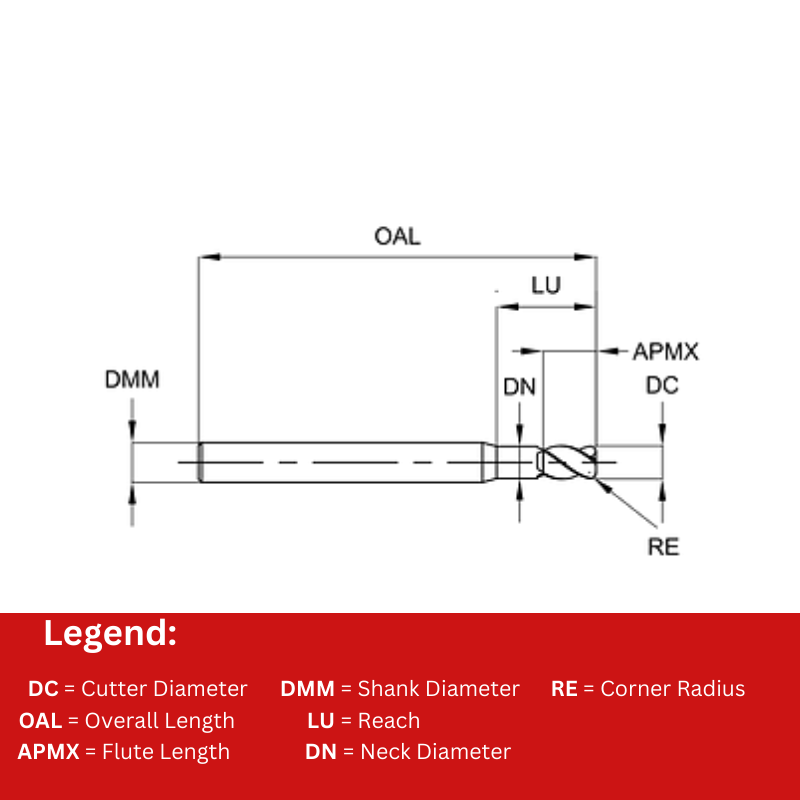

Specification
View all specifications ↓
Download Cutting Data
| Cutter Diameter (DC) | 1.2 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 1.8 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 6 |
£36.18
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Europa Tools Carbide End Mill is a precision cutting solution designed for engineers and machinists tackling hard‑to‑reach pockets and pre‑hardened steels. With a four‑flute geometry, corner radius, extended neck, and a Pulsar DMX coating, this tool delivers reliable, high‑quality cuts in demanding applications.
- Diameter: 1.2 mm
- Corner Radius: R0.1
- Flutes: 4‑flute design for efficient chip evacuation and smoother finishes
- Neck/Reach: Extended neck to access deep cavities and complex geometries
- Length: 6 mm (overall length specification)
- Coating: Pulsar DMX for optimized dry cutting and high‑speed machining
- Material: Solid carbide for exceptional hardness and wear resistance
- Material Suitability: Engineered for pre‑hardened steels up to HRc55
Designed for precision and durability, this end mill excels in high‑speed dry cutting where rigidity and surface finish matter most. The corner radius strengthens the tool against chipping, while the extended neck provides the reach needed for deep pockets and intricate contours. The Pulsar DMX coating reduces friction and wear, helping maintain consistent performance across demanding cycles.
| Cutter Diameter (DC) | 1.2 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 1.8 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 4 |
| Reach (LU) | 6 |
| Corner Radius (RE) | 0.1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1143650121. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1143650100 | 1 | 1.5 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650101 | 1 | 1.5 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650102 | 1 | 1.5 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650103 | 1 | 1.5 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650104 | 1 | 1.5 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650105 | 1 | 1.5 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650106 | 1 | 1.5 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650107 | 1 | 1.5 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650108 | 1 | 1.5 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650120 | 1.2 | 1.8 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650121 Viewing | 1.2 | 1.8 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650122 | 1.2 | 1.8 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650123 | 1.2 | 1.8 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650124 | 1.2 | 1.8 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650125 | 1.2 | 1.8 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650126 | 1.2 | 1.8 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650127 | 1.2 | 1.8 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650128 | 1.2 | 1.8 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650150 | 1.5 | 2.3 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650151 | 1.5 | 2.3 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650152 | 1.5 | 2.3 | 50 | 4 | 10 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650153 | 1.5 | 2.3 | 50 | 4 | 12 | 0.1 | £38.20 | 1-2 days | |
| EUR-1143650154 | 1.5 | 2.3 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650155 | 1.5 | 2.3 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650156 | 1.5 | 2.3 | 50 | 4 | 10 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650157 | 1.5 | 2.3 | 50 | 4 | 12 | 0.2 | £38.20 | 1-2 days | |
| EUR-1143650158 | 1.5 | 2.3 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650159 | 1.5 | 2.3 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650160 | 1.5 | 2.3 | 50 | 4 | 10 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650161 | 1.5 | 2.3 | 50 | 4 | 12 | 0.3 | £38.20 | 1-2 days | |
| EUR-1143650162 | 1.5 | 2.3 | 50 | 4 | 6 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650163 | 1.5 | 2.3 | 50 | 4 | 8 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650164 | 1.5 | 2.3 | 50 | 4 | 10 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650165 | 1.5 | 2.3 | 50 | 4 | 12 | 0.5 | £38.20 | 1-2 days | |
| EUR-1143650200 | 2 | 3 | 50 | 4 | 6 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650201 | 2 | 3 | 50 | 4 | 8 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650202 | 2 | 3 | 50 | 4 | 10 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650203 | 2 | 3 | 50 | 4 | 12 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650204 | 2 | 3 | 50 | 4 | 6 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650205 | 2 | 3 | 50 | 4 | 8 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650206 | 2 | 3 | 50 | 4 | 10 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650207 | 2 | 3 | 50 | 4 | 12 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650208 | 2 | 3 | 50 | 4 | 6 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650209 | 2 | 3 | 50 | 4 | 8 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650210 | 2 | 3 | 50 | 4 | 10 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650211 | 2 | 3 | 50 | 4 | 12 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650212 | 2 | 3 | 50 | 4 | 6 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650213 | 2 | 3 | 50 | 4 | 8 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650214 | 2 | 3 | 50 | 4 | 10 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650215 | 2 | 3 | 50 | 4 | 12 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650300 | 3 | 4.5 | 50 | 6 | 8 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650301 | 3 | 4.5 | 50 | 6 | 10 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650302 | 3 | 4.5 | 50 | 6 | 12 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650303 | 3 | 4.5 | 60 | 6 | 16 | 0.1 | £52.11 | 1-2 days | |
| EUR-1143650304 | 3 | 4.5 | 50 | 6 | 10 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650305 | 3 | 4.5 | 50 | 6 | 12 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650306 | 3 | 4.5 | 60 | 6 | 16 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650307 | 3 | 4.5 | 60 | 6 | 20 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650308 | 3 | 4.5 | 50 | 6 | 8 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650309 | 3 | 4.5 | 50 | 6 | 10 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650310 | 3 | 4.5 | 50 | 6 | 12 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650311 | 3 | 4.5 | 60 | 6 | 16 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650312 | 3 | 4.5 | 60 | 6 | 20 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650313 | 3 | 4.5 | 50 | 6 | 8 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650314 | 3 | 4.5 | 50 | 6 | 10 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650315 | 3 | 4.5 | 50 | 6 | 12 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650316 | 3 | 4.5 | 60 | 6 | 16 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650317 | 3 | 4.5 | 60 | 6 | 20 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650318 | 3 | 4.5 | 50 | 6 | 8 | 1 | £51.62 | 1-2 days | |
| EUR-1143650319 | 3 | 4.5 | 50 | 6 | 10 | 1 | £51.62 | 1-2 days | |
| EUR-1143650320 | 3 | 4.5 | 50 | 6 | 12 | 1 | £51.62 | 1-2 days | |
| EUR-1143650321 | 3 | 4.5 | 60 | 6 | 16 | 1 | £52.11 | 1-2 days | |
| EUR-1143650400 | 4 | 6 | 50 | 6 | 10 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650401 | 4 | 6 | 50 | 6 | 12 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650402 | 4 | 6 | 60 | 6 | 16 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650403 | 4 | 6 | 60 | 6 | 20 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650404 | 4 | 6 | 50 | 6 | 10 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650405 | 4 | 6 | 50 | 6 | 12 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650406 | 4 | 6 | 60 | 6 | 16 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650407 | 4 | 6 | 60 | 6 | 20 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650408 | 4 | 6 | 65 | 6 | 26 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650409 | 4 | 6 | 50 | 6 | 10 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650410 | 4 | 6 | 50 | 6 | 12 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650411 | 4 | 6 | 60 | 6 | 16 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650412 | 4 | 6 | 60 | 6 | 20 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650413 | 4 | 6 | 65 | 6 | 26 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650414 | 4 | 6 | 50 | 6 | 12 | 0.5 | £53.66 | 1-2 days | |
| EUR-1143650415 | 4 | 6 | 60 | 6 | 16 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650416 | 4 | 6 | 60 | 6 | 20 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650417 | 4 | 6 | 65 | 6 | 26 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650418 | 4 | 6 | 50 | 6 | 10 | 1 | £53.66 | 1-2 days | |
| EUR-1143650419 | 4 | 6 | 50 | 6 | 12 | 1 | £53.66 | 1-2 days | |
| EUR-1143650420 | 4 | 6 | 60 | 6 | 16 | 1 | £54.10 | 1-2 days | |
| EUR-1143650421 | 4 | 6 | 60 | 6 | 20 | 1 | £54.10 | 1-2 days | |
| EUR-1143650422 | 4 | 6 | 65 | 6 | 26 | 1 | £54.10 | 1-2 days | |
| EUR-1143650600 | 6 | 9 | 60 | 6 | 20 | 0.3 | £52.08 | 1-2 days | |
| EUR-1143650601 | 6 | 9 | 60 | 6 | 20 | 0.5 | £52.08 | 1-2 days | |
| EUR-1143650602 | 6 | 9 | 60 | 6 | 20 | 1 | £52.08 | 1-2 days | |
| EUR-1143650800 | 8 | 12 | 70 | 8 | 25 | 0.2 | £64.94 | 1-2 days | |
| EUR-1143650801 | 8 | 12 | 70 | 8 | 25 | 0.5 | £64.94 | 1-2 days | |
| EUR-1143650803 | 8 | 12 | 70 | 8 | 25 | 1 | £64.94 | 1-2 days | |
| EUR-1143651000 | 10 | 15 | 75 | 10 | 30 | 0.5 | £87.56 | 1-2 days | |
| EUR-1143651001 | 10 | 15 | 75 | 10 | 30 | 1 | £87.56 | 1-2 days | |
| EUR-1143651200 | 12 | 18 | 80 | 12 | 32 | 0.5 | £119.61 | 1-2 days | |
| EUR-1143651201 | 12 | 18 | 80 | 12 | 32 | 1 | £119.61 | 1-2 days |
