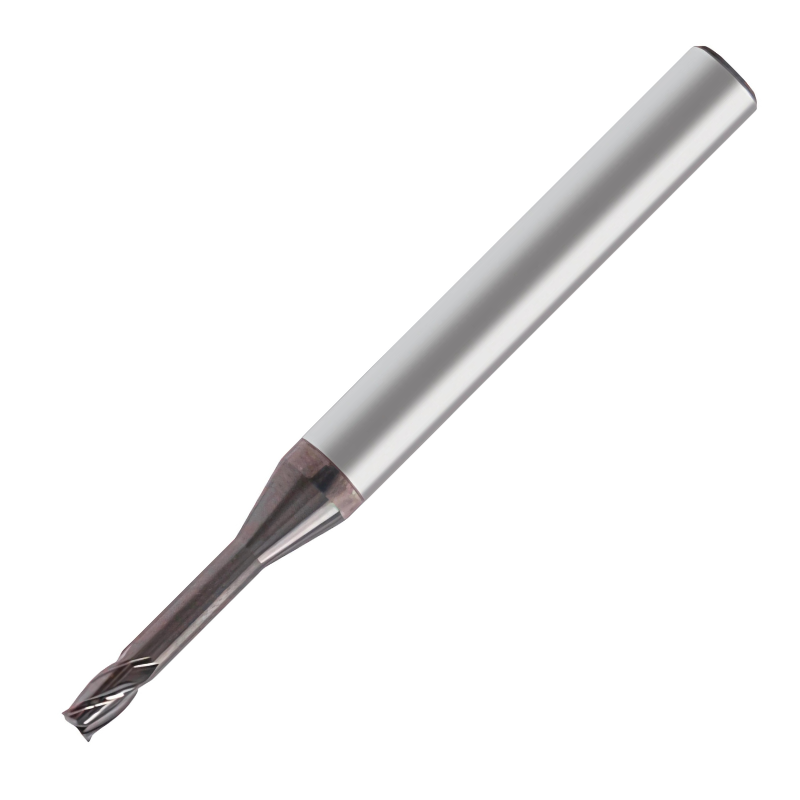

Europa Tools Carbide End Mill 4 Flute Corner Radius - Extended Neck - Pulsar DMX - 3mm x R1 x 12mm
SKU:EUR-1143650320
The Europa Tools Carbide End Mill with a 4-flute corner-radius design is built for precision milling in tight spaces and deep cavities. Ideal for engineers and machinists working with pre-hardene...
Read more ↓
Material Compatibility
P
K
H
Specification
View all specifications ↓
Download Cutting Data
| Cutter Diameter (DC) | 3 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 4.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
£51.62
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Europa Tools Carbide End Mill with a 4-flute corner-radius design is built for precision milling in tight spaces and deep cavities. Ideal for engineers and machinists working with pre-hardened steels, it delivers durable performance and smooth finishes where it matters most.
- Diameter: 3 mm cutting diameter for precision in small features
- Number of Flutes: 4-flute configuration for efficient chip evacuation and superior surface finish
- Corner Radius: R1 corner radius strengthens the tip and reduces chipping during demanding cuts
- Neck Length: 12 mm extended neck enables access to deep pockets and complex geometries
- Coating: Pulsar DMX coating optimized for dry cutting and high-speed machining of pre-hardened steels up to HRc55
- Material: Solid carbide for rigidity and wear resistance in tough milling tasks
- Applications: Perfect for molds, dies, and precision components requiring tight radii and deep cavities
In practice, this end mill delivers smoother cuts, reduced chipping, and excellent surface finishes even at high speeds. The extended neck minimizes setup constraints when working in deep pockets, while the 4-flute design promotes steady chip evacuation for consistent feeds and speeds. With the Pulsar DMX coating, you get enhanced wear resistance and heat management in dry-cutting environments, enabling reliable performance on pre-hardened steels up to HRc55 and helping you achieve tight tolerances with fewer rework steps.

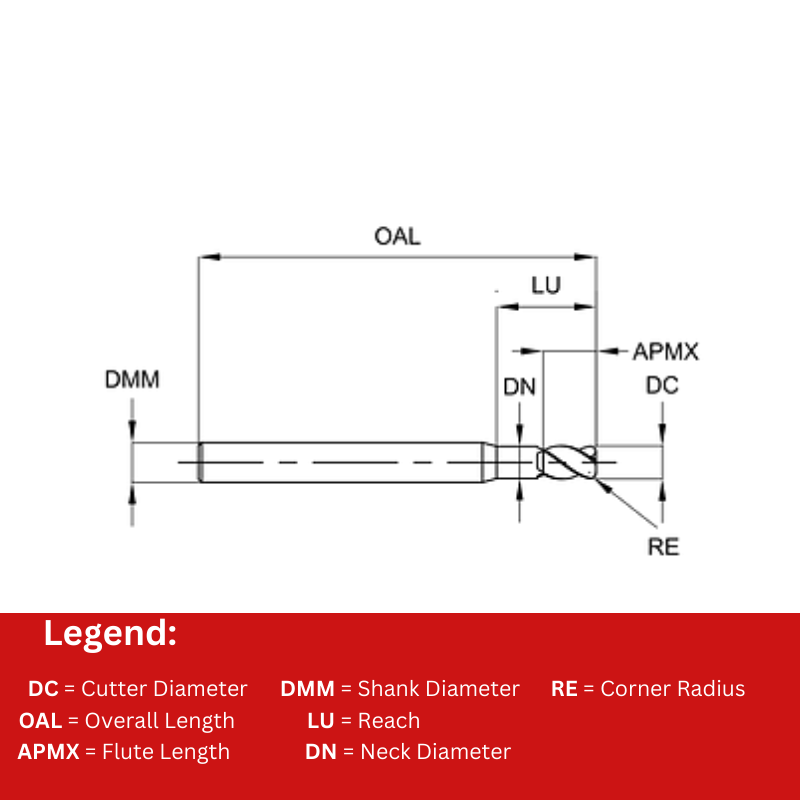

| Cutter Diameter (DC) | 3 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 4.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
| Corner Radius (RE) | 1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1143650320. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1143650100 | 1 | 1.5 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650101 | 1 | 1.5 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650102 | 1 | 1.5 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650103 | 1 | 1.5 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650104 | 1 | 1.5 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650105 | 1 | 1.5 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650106 | 1 | 1.5 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650107 | 1 | 1.5 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650108 | 1 | 1.5 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650120 | 1.2 | 1.8 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650121 | 1.2 | 1.8 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650122 | 1.2 | 1.8 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650123 | 1.2 | 1.8 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650124 | 1.2 | 1.8 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650125 | 1.2 | 1.8 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650126 | 1.2 | 1.8 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650127 | 1.2 | 1.8 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650128 | 1.2 | 1.8 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650150 | 1.5 | 2.3 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650151 | 1.5 | 2.3 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650152 | 1.5 | 2.3 | 50 | 4 | 10 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650153 | 1.5 | 2.3 | 50 | 4 | 12 | 0.1 | £38.20 | 1-2 days | |
| EUR-1143650154 | 1.5 | 2.3 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650155 | 1.5 | 2.3 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650156 | 1.5 | 2.3 | 50 | 4 | 10 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650157 | 1.5 | 2.3 | 50 | 4 | 12 | 0.2 | £38.20 | 1-2 days | |
| EUR-1143650158 | 1.5 | 2.3 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650159 | 1.5 | 2.3 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650160 | 1.5 | 2.3 | 50 | 4 | 10 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650161 | 1.5 | 2.3 | 50 | 4 | 12 | 0.3 | £38.20 | 1-2 days | |
| EUR-1143650162 | 1.5 | 2.3 | 50 | 4 | 6 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650163 | 1.5 | 2.3 | 50 | 4 | 8 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650164 | 1.5 | 2.3 | 50 | 4 | 10 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650165 | 1.5 | 2.3 | 50 | 4 | 12 | 0.5 | £38.20 | 1-2 days | |
| EUR-1143650200 | 2 | 3 | 50 | 4 | 6 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650201 | 2 | 3 | 50 | 4 | 8 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650202 | 2 | 3 | 50 | 4 | 10 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650203 | 2 | 3 | 50 | 4 | 12 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650204 | 2 | 3 | 50 | 4 | 6 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650205 | 2 | 3 | 50 | 4 | 8 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650206 | 2 | 3 | 50 | 4 | 10 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650207 | 2 | 3 | 50 | 4 | 12 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650208 | 2 | 3 | 50 | 4 | 6 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650209 | 2 | 3 | 50 | 4 | 8 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650210 | 2 | 3 | 50 | 4 | 10 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650211 | 2 | 3 | 50 | 4 | 12 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650212 | 2 | 3 | 50 | 4 | 6 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650213 | 2 | 3 | 50 | 4 | 8 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650214 | 2 | 3 | 50 | 4 | 10 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650215 | 2 | 3 | 50 | 4 | 12 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650300 | 3 | 4.5 | 50 | 6 | 8 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650301 | 3 | 4.5 | 50 | 6 | 10 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650302 | 3 | 4.5 | 50 | 6 | 12 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650303 | 3 | 4.5 | 60 | 6 | 16 | 0.1 | £52.11 | 1-2 days | |
| EUR-1143650304 | 3 | 4.5 | 50 | 6 | 10 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650305 | 3 | 4.5 | 50 | 6 | 12 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650306 | 3 | 4.5 | 60 | 6 | 16 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650307 | 3 | 4.5 | 60 | 6 | 20 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650308 | 3 | 4.5 | 50 | 6 | 8 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650309 | 3 | 4.5 | 50 | 6 | 10 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650310 | 3 | 4.5 | 50 | 6 | 12 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650311 | 3 | 4.5 | 60 | 6 | 16 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650312 | 3 | 4.5 | 60 | 6 | 20 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650313 | 3 | 4.5 | 50 | 6 | 8 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650314 | 3 | 4.5 | 50 | 6 | 10 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650315 | 3 | 4.5 | 50 | 6 | 12 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650316 | 3 | 4.5 | 60 | 6 | 16 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650317 | 3 | 4.5 | 60 | 6 | 20 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650318 | 3 | 4.5 | 50 | 6 | 8 | 1 | £51.62 | 1-2 days | |
| EUR-1143650319 | 3 | 4.5 | 50 | 6 | 10 | 1 | £51.62 | 1-2 days | |
| EUR-1143650320 Viewing | 3 | 4.5 | 50 | 6 | 12 | 1 | £51.62 | 1-2 days | |
| EUR-1143650321 | 3 | 4.5 | 60 | 6 | 16 | 1 | £52.11 | 1-2 days | |
| EUR-1143650400 | 4 | 6 | 50 | 6 | 10 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650401 | 4 | 6 | 50 | 6 | 12 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650402 | 4 | 6 | 60 | 6 | 16 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650403 | 4 | 6 | 60 | 6 | 20 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650404 | 4 | 6 | 50 | 6 | 10 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650405 | 4 | 6 | 50 | 6 | 12 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650406 | 4 | 6 | 60 | 6 | 16 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650407 | 4 | 6 | 60 | 6 | 20 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650408 | 4 | 6 | 65 | 6 | 26 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650409 | 4 | 6 | 50 | 6 | 10 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650410 | 4 | 6 | 50 | 6 | 12 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650411 | 4 | 6 | 60 | 6 | 16 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650412 | 4 | 6 | 60 | 6 | 20 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650413 | 4 | 6 | 65 | 6 | 26 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650414 | 4 | 6 | 50 | 6 | 12 | 0.5 | £53.66 | 1-2 days | |
| EUR-1143650415 | 4 | 6 | 60 | 6 | 16 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650416 | 4 | 6 | 60 | 6 | 20 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650417 | 4 | 6 | 65 | 6 | 26 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650418 | 4 | 6 | 50 | 6 | 10 | 1 | £53.66 | 1-2 days | |
| EUR-1143650419 | 4 | 6 | 50 | 6 | 12 | 1 | £53.66 | 1-2 days | |
| EUR-1143650420 | 4 | 6 | 60 | 6 | 16 | 1 | £54.10 | 1-2 days | |
| EUR-1143650421 | 4 | 6 | 60 | 6 | 20 | 1 | £54.10 | 1-2 days | |
| EUR-1143650422 | 4 | 6 | 65 | 6 | 26 | 1 | £54.10 | 1-2 days | |
| EUR-1143650600 | 6 | 9 | 60 | 6 | 20 | 0.3 | £52.08 | 1-2 days | |
| EUR-1143650601 | 6 | 9 | 60 | 6 | 20 | 0.5 | £52.08 | 1-2 days | |
| EUR-1143650602 | 6 | 9 | 60 | 6 | 20 | 1 | £52.08 | 1-2 days | |
| EUR-1143650800 | 8 | 12 | 70 | 8 | 25 | 0.2 | £64.94 | 1-2 days | |
| EUR-1143650801 | 8 | 12 | 70 | 8 | 25 | 0.5 | £64.94 | 1-2 days | |
| EUR-1143650803 | 8 | 12 | 70 | 8 | 25 | 1 | £64.94 | 1-2 days | |
| EUR-1143651000 | 10 | 15 | 75 | 10 | 30 | 0.5 | £87.56 | 1-2 days | |
| EUR-1143651001 | 10 | 15 | 75 | 10 | 30 | 1 | £87.56 | 1-2 days | |
| EUR-1143651200 | 12 | 18 | 80 | 12 | 32 | 0.5 | £119.61 | 1-2 days | |
| EUR-1143651201 | 12 | 18 | 80 | 12 | 32 | 1 | £119.61 | 1-2 days |
