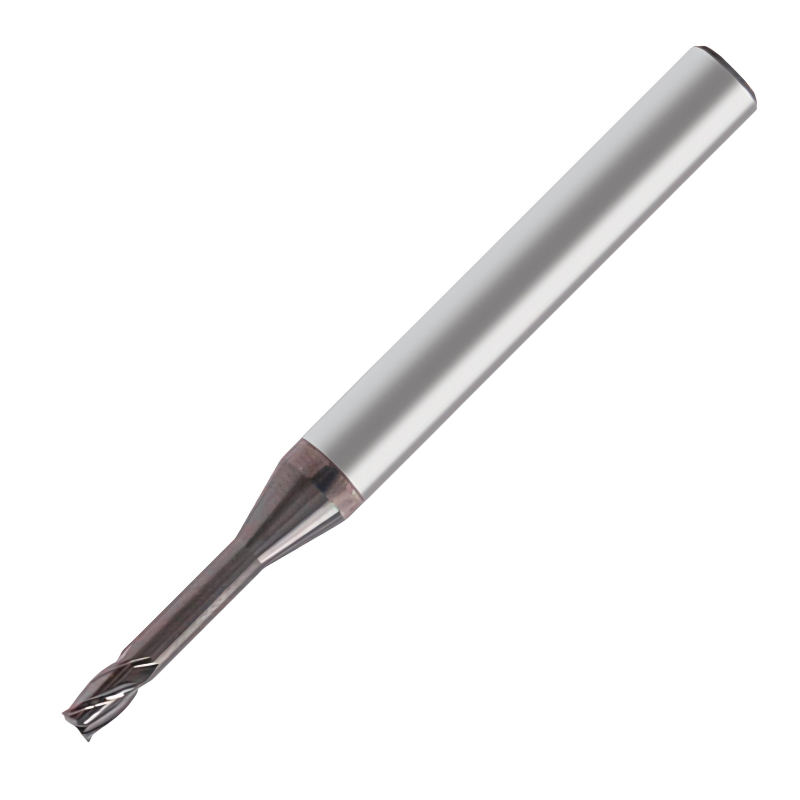

Europa Tools Carbide End Mill 4 Flute Corner Radius - Extended Neck - Pulsar DMX - 3mm x R0.1 x 12mm
SKU:EUR-1143650302
The Europa Tools Carbide End Mill with a 3 mm cutting diameter is engineered for precision work in tight spaces. Designed for high-speed machining on pre-hardened steels up to HRc55, this 4-flute...
Read more ↓
Material Compatibility
P
K
H
Specification
View all specifications ↓
Download Cutting Data

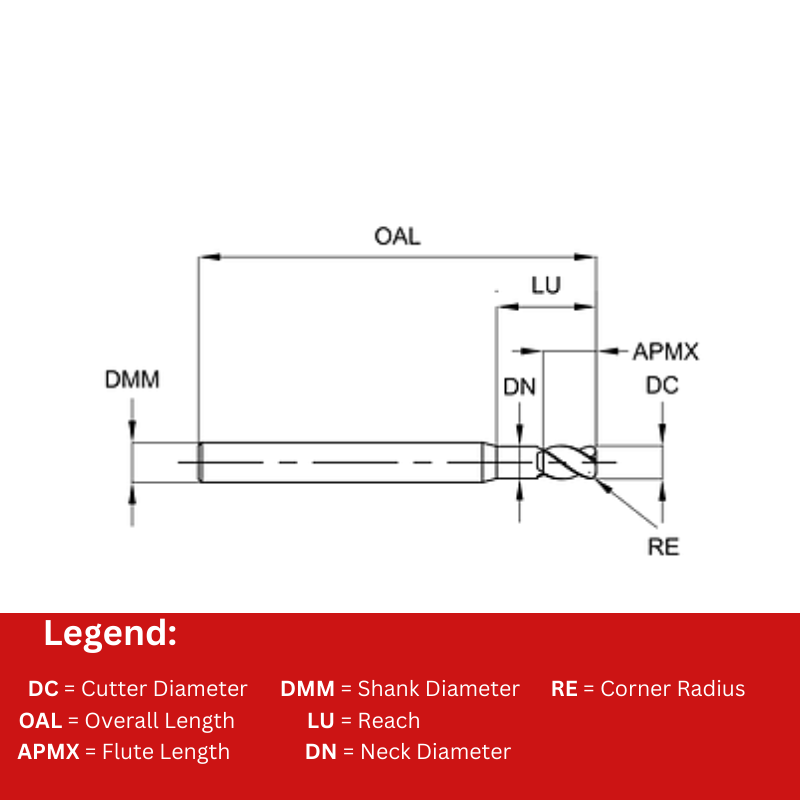

| Cutter Diameter (DC) | 3 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 4.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
£51.62
Prices shown ex. VAT
1–2 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Europa Tools Carbide End Mill with a 3 mm cutting diameter is engineered for precision work in tight spaces. Designed for high-speed machining on pre-hardened steels up to HRc55, this 4-flute end mill combines extended reach with robust corner-radius performance to deliver smooth, accurate cuts in challenging geometries.
- Diameter: 3 mm cutting diameter for precise material removal in small features
- Corner Radius: R0.1 radius to strengthen the tool edge and reduce chipping on contours
- Flutes: 4-flute configuration enhances rigidity and efficient chip evacuation
- Extended Neck: Longer neck geometry allows access to deep cavities and complex geometries
- Coating: Pulsar DMX coating optimized for dry cutting and heat resistance
- Material: Solid carbide for high hardness workpieces and durable performance
- Length: Overall tool length of 12 mm for versatile reach in compact setups
- Application: Specifically engineered for high-speed machining of pre-hardened steels up to HRc55
This end mill is built to deliver reliable finishes in demanding applications. The combination of a reinforced corner radius, extended neck for deep access, and a coating designed for dry cutting means fewer tool changes, cleaner surfaces, and longer tool life in precision milling tasks. Ideal for aerospace components, automotive dies, and intricate mold work where consistency and control matter most.
| Cutter Diameter (DC) | 3 |
| Number Of Flute | 4 |
| Flute Length (APMX) | 4.5 |
| Overall Length (OAL) | 50 |
| Shank Diameter (DMM) | 6 |
| Reach (LU) | 12 |
| Corner Radius (RE) | 0.1 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Europa Tools Carbide End Mills 4 Flute Corner Radius - Extended Neck - Pulsar DMX
View full collection →You are viewing EUR-1143650302. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter (DC) | Flute Length (APMX) | Overall Length (OAL) | Shank Diameter (DMM) | Reach (LU) | Corner Radius (RE) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| EUR-1143650100 | 1 | 1.5 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650101 | 1 | 1.5 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650102 | 1 | 1.5 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650103 | 1 | 1.5 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650104 | 1 | 1.5 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650105 | 1 | 1.5 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650106 | 1 | 1.5 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650107 | 1 | 1.5 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650108 | 1 | 1.5 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650120 | 1.2 | 1.8 | 50 | 4 | 4 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650121 | 1.2 | 1.8 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650122 | 1.2 | 1.8 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650123 | 1.2 | 1.8 | 50 | 4 | 4 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650124 | 1.2 | 1.8 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650125 | 1.2 | 1.8 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650126 | 1.2 | 1.8 | 50 | 4 | 4 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650127 | 1.2 | 1.8 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650128 | 1.2 | 1.8 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650150 | 1.5 | 2.3 | 50 | 4 | 6 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650151 | 1.5 | 2.3 | 50 | 4 | 8 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650152 | 1.5 | 2.3 | 50 | 4 | 10 | 0.1 | £36.18 | 1-2 days | |
| EUR-1143650153 | 1.5 | 2.3 | 50 | 4 | 12 | 0.1 | £38.20 | 1-2 days | |
| EUR-1143650154 | 1.5 | 2.3 | 50 | 4 | 6 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650155 | 1.5 | 2.3 | 50 | 4 | 8 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650156 | 1.5 | 2.3 | 50 | 4 | 10 | 0.2 | £36.18 | 1-2 days | |
| EUR-1143650157 | 1.5 | 2.3 | 50 | 4 | 12 | 0.2 | £38.20 | 1-2 days | |
| EUR-1143650158 | 1.5 | 2.3 | 50 | 4 | 6 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650159 | 1.5 | 2.3 | 50 | 4 | 8 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650160 | 1.5 | 2.3 | 50 | 4 | 10 | 0.3 | £36.18 | 1-2 days | |
| EUR-1143650161 | 1.5 | 2.3 | 50 | 4 | 12 | 0.3 | £38.20 | 1-2 days | |
| EUR-1143650162 | 1.5 | 2.3 | 50 | 4 | 6 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650163 | 1.5 | 2.3 | 50 | 4 | 8 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650164 | 1.5 | 2.3 | 50 | 4 | 10 | 0.5 | £36.18 | 1-2 days | |
| EUR-1143650165 | 1.5 | 2.3 | 50 | 4 | 12 | 0.5 | £38.20 | 1-2 days | |
| EUR-1143650200 | 2 | 3 | 50 | 4 | 6 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650201 | 2 | 3 | 50 | 4 | 8 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650202 | 2 | 3 | 50 | 4 | 10 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650203 | 2 | 3 | 50 | 4 | 12 | 0.1 | £34.51 | 1-2 days | |
| EUR-1143650204 | 2 | 3 | 50 | 4 | 6 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650205 | 2 | 3 | 50 | 4 | 8 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650206 | 2 | 3 | 50 | 4 | 10 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650207 | 2 | 3 | 50 | 4 | 12 | 0.2 | £34.51 | 1-2 days | |
| EUR-1143650208 | 2 | 3 | 50 | 4 | 6 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650209 | 2 | 3 | 50 | 4 | 8 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650210 | 2 | 3 | 50 | 4 | 10 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650211 | 2 | 3 | 50 | 4 | 12 | 0.3 | £34.51 | 1-2 days | |
| EUR-1143650212 | 2 | 3 | 50 | 4 | 6 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650213 | 2 | 3 | 50 | 4 | 8 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650214 | 2 | 3 | 50 | 4 | 10 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650215 | 2 | 3 | 50 | 4 | 12 | 0.5 | £34.51 | 1-2 days | |
| EUR-1143650300 | 3 | 4.5 | 50 | 6 | 8 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650301 | 3 | 4.5 | 50 | 6 | 10 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650302 Viewing | 3 | 4.5 | 50 | 6 | 12 | 0.1 | £51.62 | 1-2 days | |
| EUR-1143650303 | 3 | 4.5 | 60 | 6 | 16 | 0.1 | £52.11 | 1-2 days | |
| EUR-1143650304 | 3 | 4.5 | 50 | 6 | 10 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650305 | 3 | 4.5 | 50 | 6 | 12 | 0.2 | £51.62 | 1-2 days | |
| EUR-1143650306 | 3 | 4.5 | 60 | 6 | 16 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650307 | 3 | 4.5 | 60 | 6 | 20 | 0.2 | £52.11 | 1-2 days | |
| EUR-1143650308 | 3 | 4.5 | 50 | 6 | 8 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650309 | 3 | 4.5 | 50 | 6 | 10 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650310 | 3 | 4.5 | 50 | 6 | 12 | 0.3 | £51.62 | 1-2 days | |
| EUR-1143650311 | 3 | 4.5 | 60 | 6 | 16 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650312 | 3 | 4.5 | 60 | 6 | 20 | 0.3 | £52.11 | 1-2 days | |
| EUR-1143650313 | 3 | 4.5 | 50 | 6 | 8 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650314 | 3 | 4.5 | 50 | 6 | 10 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650315 | 3 | 4.5 | 50 | 6 | 12 | 0.5 | £51.62 | 1-2 days | |
| EUR-1143650316 | 3 | 4.5 | 60 | 6 | 16 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650317 | 3 | 4.5 | 60 | 6 | 20 | 0.5 | £52.11 | 1-2 days | |
| EUR-1143650318 | 3 | 4.5 | 50 | 6 | 8 | 1 | £51.62 | 1-2 days | |
| EUR-1143650319 | 3 | 4.5 | 50 | 6 | 10 | 1 | £51.62 | 1-2 days | |
| EUR-1143650320 | 3 | 4.5 | 50 | 6 | 12 | 1 | £51.62 | 1-2 days | |
| EUR-1143650321 | 3 | 4.5 | 60 | 6 | 16 | 1 | £52.11 | 1-2 days | |
| EUR-1143650400 | 4 | 6 | 50 | 6 | 10 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650401 | 4 | 6 | 50 | 6 | 12 | 0.1 | £53.66 | 1-2 days | |
| EUR-1143650402 | 4 | 6 | 60 | 6 | 16 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650403 | 4 | 6 | 60 | 6 | 20 | 0.1 | £54.10 | 1-2 days | |
| EUR-1143650404 | 4 | 6 | 50 | 6 | 10 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650405 | 4 | 6 | 50 | 6 | 12 | 0.2 | £53.66 | 1-2 days | |
| EUR-1143650406 | 4 | 6 | 60 | 6 | 16 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650407 | 4 | 6 | 60 | 6 | 20 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650408 | 4 | 6 | 65 | 6 | 26 | 0.2 | £54.10 | 1-2 days | |
| EUR-1143650409 | 4 | 6 | 50 | 6 | 10 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650410 | 4 | 6 | 50 | 6 | 12 | 0.3 | £53.66 | 1-2 days | |
| EUR-1143650411 | 4 | 6 | 60 | 6 | 16 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650412 | 4 | 6 | 60 | 6 | 20 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650413 | 4 | 6 | 65 | 6 | 26 | 0.3 | £54.10 | 1-2 days | |
| EUR-1143650414 | 4 | 6 | 50 | 6 | 12 | 0.5 | £53.66 | 1-2 days | |
| EUR-1143650415 | 4 | 6 | 60 | 6 | 16 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650416 | 4 | 6 | 60 | 6 | 20 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650417 | 4 | 6 | 65 | 6 | 26 | 0.5 | £54.10 | 1-2 days | |
| EUR-1143650418 | 4 | 6 | 50 | 6 | 10 | 1 | £53.66 | 1-2 days | |
| EUR-1143650419 | 4 | 6 | 50 | 6 | 12 | 1 | £53.66 | 1-2 days | |
| EUR-1143650420 | 4 | 6 | 60 | 6 | 16 | 1 | £54.10 | 1-2 days | |
| EUR-1143650421 | 4 | 6 | 60 | 6 | 20 | 1 | £54.10 | 1-2 days | |
| EUR-1143650422 | 4 | 6 | 65 | 6 | 26 | 1 | £54.10 | 1-2 days | |
| EUR-1143650600 | 6 | 9 | 60 | 6 | 20 | 0.3 | £52.08 | 1-2 days | |
| EUR-1143650601 | 6 | 9 | 60 | 6 | 20 | 0.5 | £52.08 | 1-2 days | |
| EUR-1143650602 | 6 | 9 | 60 | 6 | 20 | 1 | £52.08 | 1-2 days | |
| EUR-1143650800 | 8 | 12 | 70 | 8 | 25 | 0.2 | £64.94 | 1-2 days | |
| EUR-1143650801 | 8 | 12 | 70 | 8 | 25 | 0.5 | £64.94 | 1-2 days | |
| EUR-1143650803 | 8 | 12 | 70 | 8 | 25 | 1 | £64.94 | 1-2 days | |
| EUR-1143651000 | 10 | 15 | 75 | 10 | 30 | 0.5 | £87.56 | 1-2 days | |
| EUR-1143651001 | 10 | 15 | 75 | 10 | 30 | 1 | £87.56 | 1-2 days | |
| EUR-1143651200 | 12 | 18 | 80 | 12 | 32 | 0.5 | £119.61 | 1-2 days | |
| EUR-1143651201 | 12 | 18 | 80 | 12 | 32 | 1 | £119.61 | 1-2 days |
