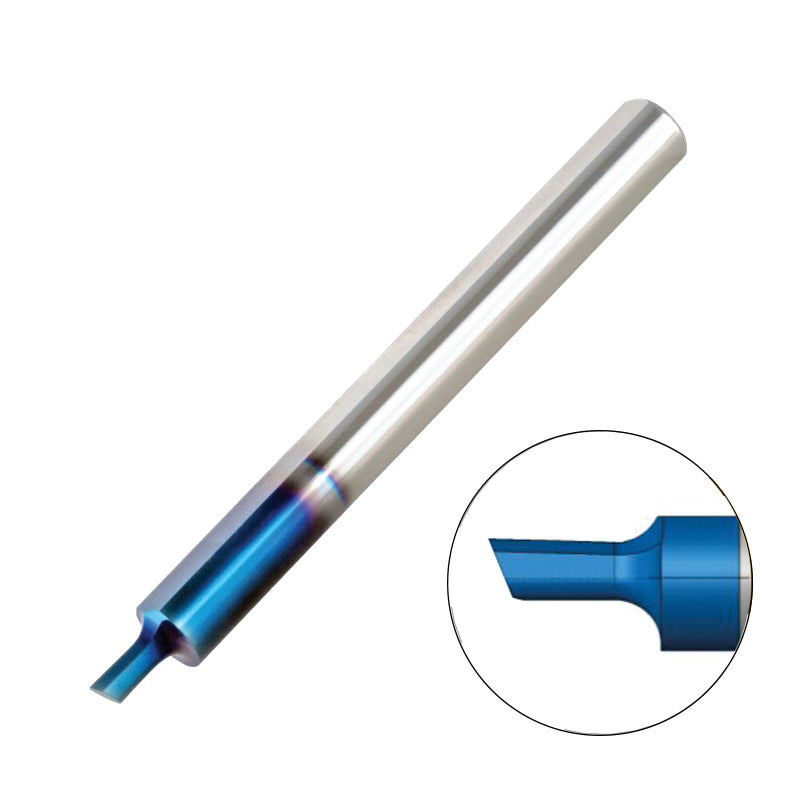

Carmex Carbide Tiny Tool - Broaching Hexagon Keys - HK - BMK Grade - 1.6mm Minimum Diameter
HK1S16L2BMK
Availability: 5 days subject to availability
The HK broaching system has been developed in order to machine internal keyways inside blind or through holes, using CNC machines. Note: To be used with standard Tiny holders (SIM…H#). The holder can be placed either in the turret, or in the spindle of the machine. Sub-micron grade with advanced PVD triple coating (ISO K10-K20). Extremely high heat resistance for maximum performance; Smooth cutting operation. General purpose for all materials.

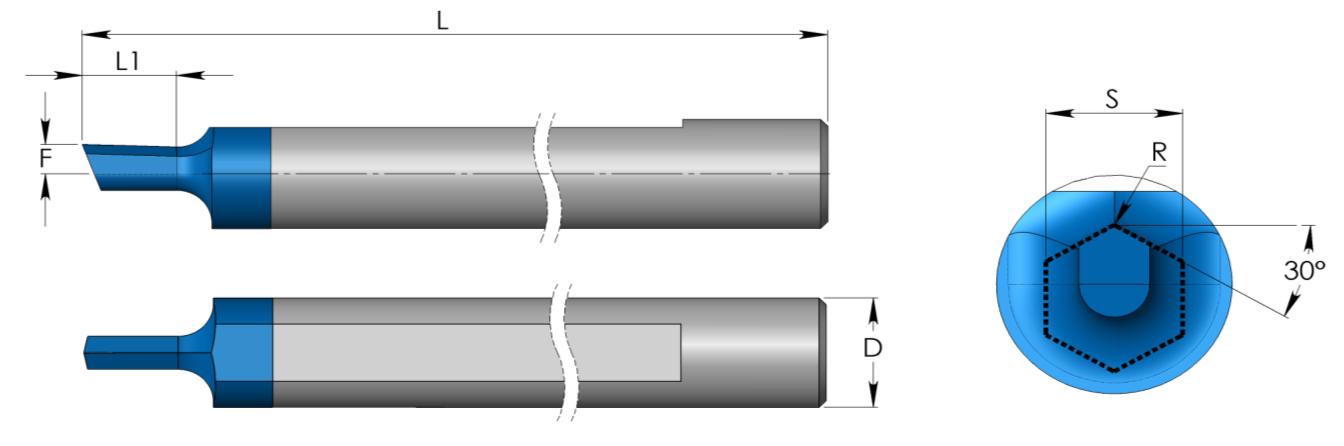

Application | Broaching Hexgon Keys (HK) |
Socket Size | 1.6-2.3 |
Overall Length | 51 |
Broach Depth | 2.5 |
R | 0.05 |
F | 0.10 |
Min Dia | 1.6 |
Holder | SIM...H4 |
Shank Diameter | 4.0 |
Grade | BMK |
The HK broaching system has been developed in order to machine internal keyways inside blind or through holes, using CNC machines. Note: To be used with standard Tiny holders (SIM…H#). The holder can be placed either in the turret, or in the spindle of the machine. Sub-micron grade with advanced PVD triple coating (ISO K10-K20). Extremely high heat resistance for maximum performance; Smooth cutting operation. General purpose for all materials.
Application | Broaching Hexgon Keys (HK) |
Socket Size | 1.6-2.3 |
Overall Length | 51 |
Broach Depth | 2.5 |
R | 0.05 |
F | 0.10 |
Min Dia | 1.6 |
Holder | SIM...H4 |
Shank Diameter | 4.0 |
Grade | BMK |
