Carmex Carbide Tiny Tool - Broaching Hexagon Keys - HK - BMK Grade - 4.9mm Minimum Diameter

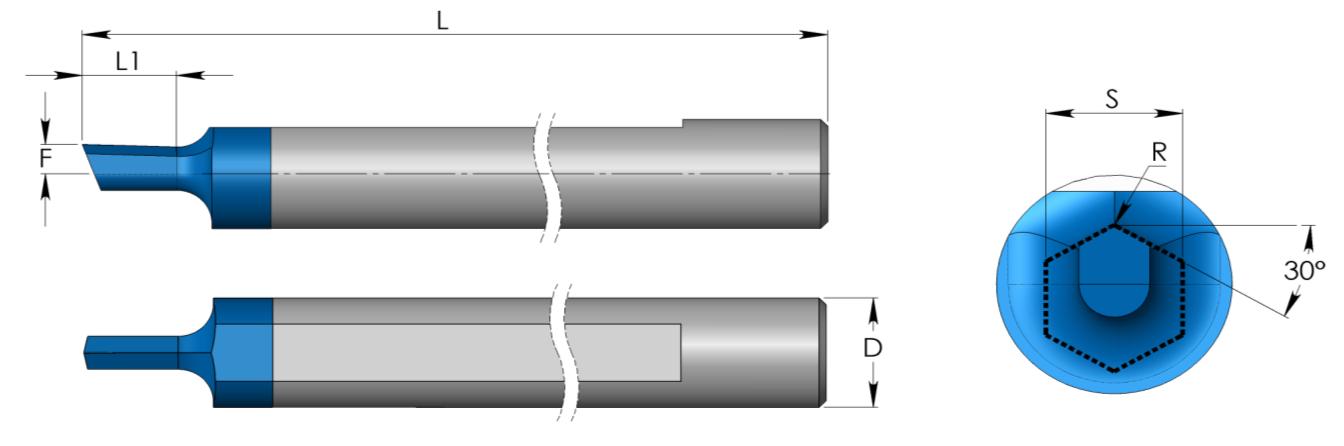

| Application | Broaching Hexgon Keys (HK) |
| Socket Size (S) | 5.0-8.0 |
| Overall Length (L) | 62 |
| Broach Depth (L1) | 9.5 |
Learn more about Klarna
Description

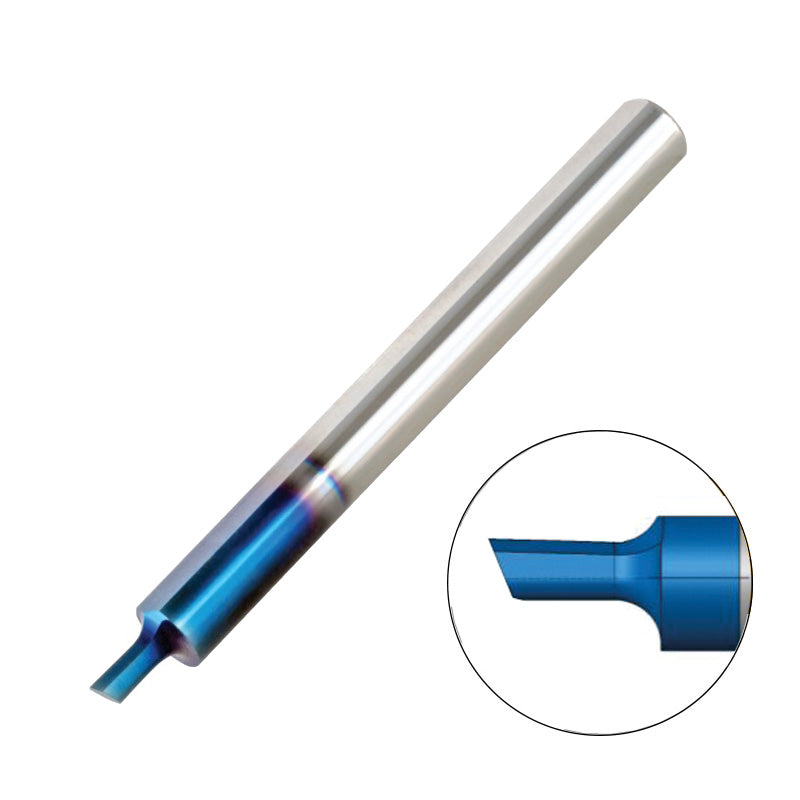

The Carmex Carbide Tiny Tool is a compact broaching cutter designed to create precise internal hex keyways inside blind or through holes on CNC machines. It is suitable for holes with a minimum diameter of 4.9 mm. It works with standard Tiny holders (SIM…H#) and can be mounted in either the turret or the spindle for flexible, space-efficient setups.
Crafted from BMK-grade carbide with a sub-micron finish and an advanced PVD triple coating (ISO K10–K20), this tool delivers excellent heat resistance and smooth cutting action, ensuring consistent results across a wide range of materials.
- Internal keyway broaching for tight holes: Delivers clean, accurately sized keyways in blind or through holes with minimal burrs, improving fit and reliability in assembled components.
- Durable carbide with triple coating: Sub-micron BMK-grade carbide with a PVD triple coating reduces wear and heat buildup, extending tool life and maintaining precision through long runs.
- Easy CNC integration with Tiny holders: Compatible with standard Tiny holders and mountable in turret or spindle, enabling quick setup and flexible workflow across different machines.
With this tool, you gain reliable, repeatable keyway performance that supports tighter tolerances, faster cycles, and less downtime, helping you meet demanding manufacturing and assembly needs with confidence.
Part Numbers
- Protool Part Number
- HK5S50L9BMK
- Brand
- Carmex
- Category
- Tiny Tool Inserts
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Broaching Tool (HK)
View full collection →You are viewing HK5S50L9BMK. Click any other SKU to view its full details.
| Product SKU | Socket Size | Overall Length | Broach Depth | R | F | Min Dia | Holder | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HK1S12L2BMK | 1.2-1.6 | 51 | 2.3 | 0.05 | 0.10 | 1.2 | SIM...H4 | 4.0 | £39.40 | In Stock | |
| HK1S16L2BMK | 1.6-2.3 | 51 | 2.5 | 0.05 | 0.10 | 1.6 | SIM...H4 | 4.0 | £39.40 | In Stock | |
| HK2S23L4BMK | 2.3-2.9 | 51 | 4.0 | 0.05 | 1.35 | 2.2 | SIM...H5 | 5.0 | £39.40 | 5 days | |
| HK3S30L5BMK | 3.0-4.0 | 51 | 5.5 | 0.05 | 1.35 | 2.9 | SIM...H5 | 5.0 | £45.58 | 5 days | |
| HK4S40L6BMK | 4.0-5.0 | 51 | 6.5 | 0.10 | 1.35 | 3.9 | SIM...H5 | 5.0 | £42.80 | In Stock | |
| HK5S50L9BMK Viewing | 5.0-8.0 | 62 | 9.5 | 0.10 | 1.35 | 4.9 | SIM...H7 | 7.0 | £47.25 | In Stock |
