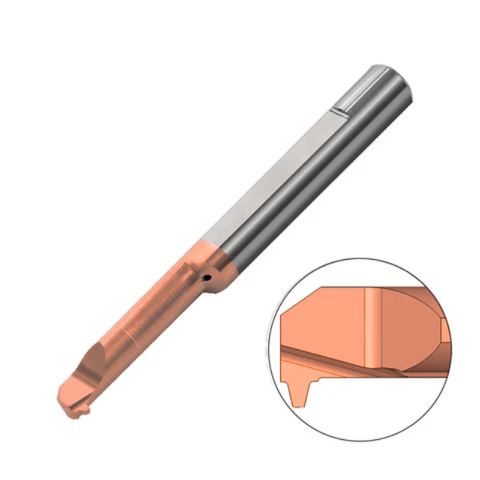

Carmex Carbide Tiny Tool - Threading - MIL - UN (UNC,UNF,UNEF,UNS) - TNX Grade - 3.2mm Minimum Diameter x 15mm Reach (Left Hand)
| Application | Threading (MIL) |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch or Pitch Range | 32 |
| Minimum Diameter | 3.2 |
| Reach | 15 |
| Grade | TNX |
Learn more about Klarna
The Carmex Carbide Tiny Tool is a precision threading cutter designed for micro-scale work. Built for engineers, machinists, and hobbyists, it creates accurate UN 60° thread forms in small parts with left-hand threading capability.
Made from premium TNX-grade carbide, this tool delivers consistent performance for MIL-standard UN threads (UNC, UNF, UNEF, UNS) across a wide range of machines. Its compact 3.2 mm minimum diameter and 15 mm reach let you access tight bores and intricate features without sacrificing thread quality.
- UN 60° Full-Profile Geometry: Delivers true thread form for MIL UNC/UNF/UNEF/UNS with minimal finishing, improving first-pass accuracy and reducing manual operations.
- Premium TNX-Grade Carbide: Offers exceptional wear resistance and long tool life in small-diameter threading, maintaining sharpness and dimensional stability through high-speed cuts.
- Compact 3.2 mm Ø, 15 mm Reach with Left-Hand Threading: Enables access to tight locations and left-hand thread applications, improving throughput and reducing tool changes in compact assemblies.
Used correctly, the Carmex Tiny Tool delivers repeatable, accurate threading on miniature parts, improving assembly reliability and finish quality. The combination of UN 60° geometry and TNX-grade carbide supports consistent results across multiple machines, boosting productivity and reducing downtime in small-part threading operations.
| Application | Threading (MIL) |
| Thread Form | UN (UNC UNF UNEF UNS) |
| Pitch or Pitch Range | 32 |
| Minimum Diameter | 3.2 |
| Reach | 15 |
| Grade | TNX |
| Holder | SIM****H3 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Carbide Tiny Tools - Face Grooving - Grade TNX (MFL)
View full collection →You are viewing MIL3L1532UNTNX. Click any other SKU to view its full details.
| Product SKU | Pitch or Pitch Range | Minimum Diameter | Reach | Grade | Holder | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| MZR6R0.5L22TNX | 8 | 1 | 1.2 | 22 | TNX | £33.28 | 5 days | |
| MZR4R0.5L15TNX | 5 | 1 | 1.2 | 15 | TNX | £28.84 | 5 days | |
| MZR6R0.75L22TNX | 8 | 1.5 | 1.5 | 22 | TNX | £33.28 | 5 days | |
| MZR6R1.0L22TNX | 8 | 2 | 2.5 | 22 | TNX | £33.28 | 5 days | |
| MZL6R1.0L22TNX | 8 | 2 | 2.5 | 22 | TNX | £33.28 | 5 days | |
| MZL6R0.5L22TNX | 8 | 1 | 1.2 | 22 | TNX | £33.28 | In Stock | |
| MIR6L22A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIR6L15A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 | 5 days | |
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £31.50 | 5 days | |
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 | 5 days | |
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £36.81 | 5 days | |
| MIR5L151.0ISOTNX | 1 | 4.9 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIR6L221.25ISOTNX | 1.25 | 6.1 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIR4L150.5ISOTNX | 0.5 | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIR4L150.75ISOTNX | 0.75 | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIR5L1528UNTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIR3L1532UNTNX | 32 | 3.2 | 15 | TNX | SIM****H3 | £29.44 | 5 days | |
| MIR6L1527NPTTNX | 27 | 5.9 | 15 | 1/16 X 27NPT | 1/8 X 27NPT | £30.62 | 5 days | |
| MIR8L3010ACMETNX | 10 | 10 | 30 | TNX | SIM****H8 | £51.89 | 5 days | |
| MIR7L252TRTNX | 2 | 6.9 | 25 | TR9X2 | TR10X2 | £45.19 | 5 days | |
| MIR7L353TRTNX | 3 | 7.5 | 35 | TR11X3 | TR12X3 | £49.66 | In Stock | |
| MIR5L1528UNJTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £29.51 | 5 days | |
| MIR6L1728WTNX | 28 | 6.5 | 17 | TNX | SIM****H6 | £35.23 | 5 days | |
| MIL3L1532UNTNX Viewing | 32 | 3.2 | 15 | TNX | SIM****H3 | £29.44 | 5 days | |
| MIL4L150.5ISOTNX | 0.5 | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIL4L150.75ISOTNX | 0.75 | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIL4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £29.44 | 5 days | |
| MIL5L151.0ISOTNX | 1 | 4.9 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIL5L1528UNJTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £29.51 | 5 days | |
| MIL5L1528UNTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIL5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £30.07 | 5 days | |
| MIL5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £31.50 | 5 days | |
| MIL6L1527NPTTNX | 27 | 5.9 | 15 | 1/16 X 27NPT | 1/8 X 27NPT | £30.62 | 5 days | |
| MIL6L15A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 | 5 days | |
| MIL6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 | 5 days | |
| MIL6L1728WTNX | 28 | 6.5 | 17 | TNX | SIM****H6 | £35.23 | 5 days | |
| MIL6L221.25ISOTNX | 1.25 | 6.1 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIL6L22A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIL6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 | 5 days | |
| MIL7L252TRTNX | 2 | 6.9 | 25 | TR9X2 | TR10X2 | £45.19 | 5 days | |
| MIL7L353TRTNX | 3 | 7.5 | 35 | TR11X3 | TR12X3 | £49.66 | 5 days | |
| MIL8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £36.81 | 5 days | |
| MIL8L3010ACMETNX | 10 | 10 | 30 | TNX | SIM****H8 | £51.89 | 5 days |
