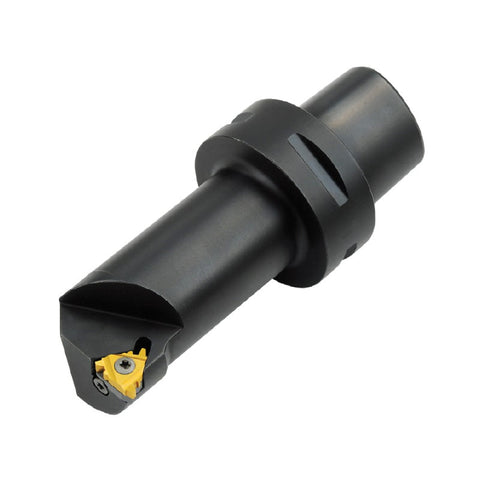

Carmex Thread Turning Holder Quick Change (CAT) Polygon - Internal - Right Hand - 70mm OAL - 22IR Insert - C5 Shank Size
| Type | Quick Change (CAT)(Polygon) |
| Internal or External | Internal |
| Minimum Bore | 29 |
| Shank Size | C5 |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Carmex Thread Turning Holder Quick Change (CAT) Polygon - Internal - Right Hand is a precision toolholder designed for fast, repeatable internal threading on CNC lathes. Built for professionals in automotive, aerospace, and manufacturing, it combines reliable threading performance with the efficiency of quick tool changes.
- Interface: CAT Polygon Quick Change interface for secure, repeatable tool changes with Carmex inserts.
- Thread Turning Type: Internal threading holder optimized for precision internal threads and profiles.
- Orientation: Right-handed configuration suited for clockwise threading operations.
- Overall Length: 70 mm (OAL) to fit compact setups and tight tooling envelopes.
- Insert Compatibility: Uses 22IR inserts for robust internal thread cutting.
- Shank Size: C5 shank size compatible with standard CAT toolholding systems.
- Quick Change: Designed for rapid tool changes to minimize downtime and maximize productivity.
This holder delivers consistent thread form and surface finish across common profiles, helping machinists achieve reliable tolerances in high-demand environments. The polygon shank enhances rigidity and grip during cutting, while the internal threading capability keeps tooling compact and efficient. Ideal for high-volume production in automotive and aerospace applications, it supports rapid setup changes without compromising precision.
Part Numbers
- Protool Part Number
- P50-SIR19070-22
- Brand
- Carmex
- Category
- Thread Turning
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Thread Turning Holders - Internal - Quick Change (CAT) Polygon
View full collection →You are viewing P50-SIR19070-22. Click any other SKU to view its full details.
| Product SKU | Minimum Bore | Shank Size | Hand | Overall Length | Insert | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| P40-SIR12060-16 | 20 | C4 | Right | 60 | 16IR | 37 | £156.86 | 5 days | |
| P40-SIR14060-16 | 25 | C4 | Right | 60 | 16IR | 38 | £156.86 | 5 days | |
| P40-SIR17070-16 | 29 | C4 | Right | 70 | 16IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-16 | 36 | C4 | Right | 90 | 16IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-16 | 44 | C4 | Right | 80 | 16IR | 60 | £156.86 | 5 days | |
| P50-SIR12060-16 | 20 | C5 | Right | 60 | 16IR | 35 | £173.98 | 5 days | |
| P50-SIR14060-16 | 25 | C5 | Right | 60 | 16IR | 36 | £173.98 | 5 days | |
| P50-SIR17070-16 | 29 | C5 | Right | 70 | 16IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-16 | 36 | C5 | Right | 90 | 16IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-16 | 44 | C5 | Right | 105 | 16IR | 84 | £173.98 | 5 days | |
| P63-SIR14070-16 | 25 | C6 | Right | 70 | 16IR | 42 | £292.70 | 5 days | |
| P63-SIR17075-16 | 29 | C6 | Right | 75 | 16IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-16 | 36 | C6 | Right | 90 | 16IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-16 | 44 | C6 | Right | 105 | 16IR | 80 | £199.04 | 5 days | |
| P40-SIR15065-22 | 25 | C4 | Right | 65 | 22IR | 42 | £156.86 | 5 days | |
| P40-SIR19070-22 | 29 | C4 | Right | 70 | 22IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-22 | 38 | C4 | Right | 90 | 22IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-22 | 46 | C4 | Right | 80 | 22IR | 60 | £156.86 | 5 days | |
| P50-SIR15065-22 | 25 | C5 | Right | 65 | 22IR | 41 | £173.98 | 5 days | |
| P50-SIR19070-22 Viewing | 29 | C5 | Right | 70 | 22IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-22 | 38 | C5 | Right | 90 | 22IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-22 | 46 | C5 | Right | 105 | 22IR | 84 | £173.98 | 5 days | |
| P63-SIR19075-22 | 29 | C6 | Right | 75 | 22IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-22 | 38 | C6 | Right | 90 | 22IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-22 | 46 | C6 | Right | 105 | 22IR | 80 | £199.04 | 5 days |
