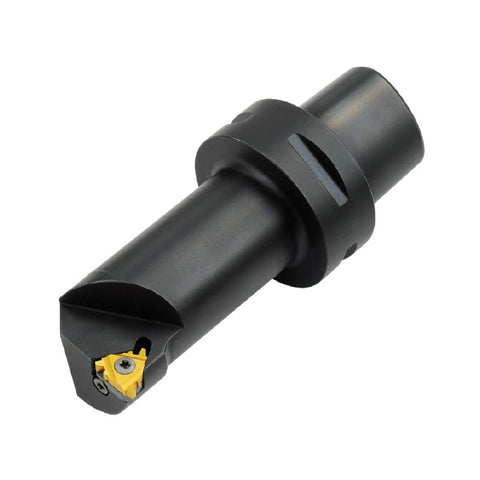

Carmex Thread Turning Holder Quick Change (CAT) Polygon - Internal - Right Hand - 90mm OAL - 22IR Insert - C6 Shank Size
| Type | Quick Change (CAT)(Polygon) |
| Internal or External | Internal |
| Minimum Bore | 38 |
| Shank Size | C6 |
| Hand | Right |
| Overall Length | 90 |
Learn more about Klarna
The Carmex Quick Change (CAT) Polygon Thread Turning Holder is a precision toolholder designed for CNC lathes, delivering fast tool changes and consistent internal thread profiles. It's ideal for machinists in automotive, aerospace, and general manufacturing who value reliability and productivity.
- Toolholder System: Polygon geometry designed for seamless compatibility with the CAT quick-change tooling ecosystem, enabling rapid insert swaps during setup and changeovers.
- Thread Turning Capability: Optimized for internal thread turning with precise control over thread form, ensuring accurate profiles across common standards.
- Right-Hand Configuration: Specifically engineered for right-hand internal threading operations, delivering predictable cutting directions and finishes.
- 90 mm Overall Length (OAL): Compact, rigid form that fits tight machine envelopes while maintaining strong support during heavy cuts.
- 22IR Insert Interface: Designed to accept 22IR inserts, providing a reliable seating and wear characteristics for consistent performance.
- C6 Shank Size: Standardized shank size for secure mounting in CAT-compatible holders and compatible spindle tooling setups.
- Precision-Toleranced Construction: Manufactured to tight tolerances to maintain thread accuracy over multiple cycles and reduce rework.
Designed to minimize downtime and maximize machining productivity, this holder offers repeatable thread quality and robust rigidity across a variety of threading applications. Its CAT polygon quick-change design streamlines tool changes, while the internal threading focus supports clean, accurate thread forms in automotive, aerospace, and manufacturing environments.
| Type | Quick Change (CAT)(Polygon) |
| Internal or External | Internal |
| Minimum Bore | 38 |
| Shank Size | C6 |
| Hand | Right |
| Overall Length | 90 |
| Insert | 22IR |
| Reach | 64 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Thread Turning Holders - Internal - Quick Change (CAT) Polygon
View full collection →You are viewing P63-SIR22090-22. Click any other SKU to view its full details.
| Product SKU | Minimum Bore | Shank Size | Hand | Overall Length | Insert | Reach | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| P40-SIR12060-16 | 20 | C4 | Right | 60 | 16IR | 37 | £156.86 | 5 days | |
| P40-SIR14060-16 | 25 | C4 | Right | 60 | 16IR | 38 | £156.86 | 5 days | |
| P40-SIR17070-16 | 29 | C4 | Right | 70 | 16IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-16 | 36 | C4 | Right | 90 | 16IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-16 | 44 | C4 | Right | 80 | 16IR | 60 | £156.86 | 5 days | |
| P50-SIR12060-16 | 20 | C5 | Right | 60 | 16IR | 35 | £173.98 | 5 days | |
| P50-SIR14060-16 | 25 | C5 | Right | 60 | 16IR | 36 | £173.98 | 5 days | |
| P50-SIR17070-16 | 29 | C5 | Right | 70 | 16IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-16 | 36 | C5 | Right | 90 | 16IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-16 | 44 | C5 | Right | 105 | 16IR | 84 | £173.98 | 5 days | |
| P63-SIR14070-16 | 25 | C6 | Right | 70 | 16IR | 42 | £292.70 | 5 days | |
| P63-SIR17075-16 | 29 | C6 | Right | 75 | 16IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-16 | 36 | C6 | Right | 90 | 16IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-16 | 44 | C6 | Right | 105 | 16IR | 80 | £199.04 | 5 days | |
| P40-SIR15065-22 | 25 | C4 | Right | 65 | 22IR | 42 | £156.86 | 5 days | |
| P40-SIR19070-22 | 29 | C4 | Right | 70 | 22IR | 48 | £156.86 | 5 days | |
| P40-SIR22090-22 | 38 | C4 | Right | 90 | 22IR | 69 | £156.86 | 5 days | |
| P40-SIR27080-22 | 46 | C4 | Right | 80 | 22IR | 60 | £156.86 | 5 days | |
| P50-SIR15065-22 | 25 | C5 | Right | 65 | 22IR | 41 | £173.98 | 5 days | |
| P50-SIR19070-22 | 29 | C5 | Right | 70 | 22IR | 47 | £173.98 | 5 days | |
| P50-SIR22090-22 | 38 | C5 | Right | 90 | 22IR | 68 | £173.98 | 5 days | |
| P50-SIR27105-22 | 46 | C5 | Right | 105 | 22IR | 84 | £173.98 | 5 days | |
| P63-SIR19075-22 | 29 | C6 | Right | 75 | 22IR | 48 | £292.70 | 5 days | |
| P63-SIR22090-22 Viewing | 38 | C6 | Right | 90 | 22IR | 64 | £199.04 | 5 days | |
| P63-SIR27105-22 | 46 | C6 | Right | 105 | 22IR | 80 | £199.04 | 5 days |
