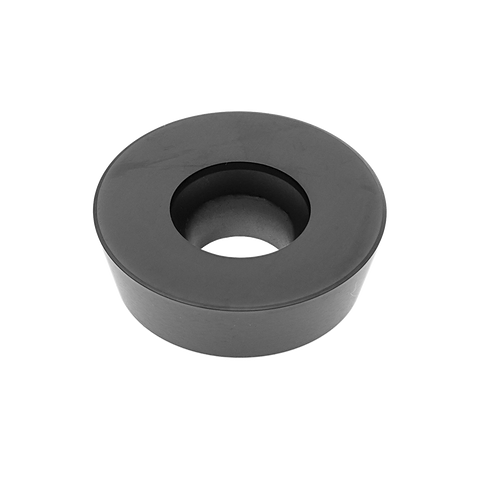

Palbit Indexable Milling Insert - for Profile Milling - RDMW 1604 M0T PH6125

Palbit Indexable Milling Insert - for Profile Milling - RDMW 1604 M0T PH6125

SKU:PAL-111009778
The Palbit RDMW indexable milling insert (RDMW 1604 M0T PH6125) is engineered for precision profile milling, delivering reliable performance on complex contours and 3D surfaces. Built with a durab... Read more ↓
Material Compatibility
P
Specification
ISO CodeRDMW 1604 M0T PH6125
Insert Size and ShapeRD1604
Product LineTOROMILL 25290
GradePH6125
HandNeutral
Cutting Edge Count (CEDC)4
View all specifications ↓
£8.20
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Holders
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

The Palbit RDMW indexable milling insert (RDMW 1604 M0T PH6125) is engineered for precision profile milling, delivering reliable performance on complex contours and 3D surfaces. Built with a durable carbide body and advanced cutting geometry, it enables smooth machining, a superior surface finish, and long tool life.

  • Model / Series: RDMW 1604 M0T PH6125
  • Primary Application: Precision profile milling on complex contours and 3D surfaces
  • Cutting Geometry: Advanced cutting geometry
  • Material: Durable carbide construction
  • Performance: Smooth machining, superior surface finish, and long tool life

Benefits: By using this insert, you can achieve accurate profiles and consistent surface quality on challenging parts. The combination of advanced geometry and durable carbide supports reliable performance over extended tool life, helping reduce insert changes and boost productivity in profile‑milling operations.

ISO Code RDMW 1604 M0T PH6125
Insert Size and Shape RD1604
Product Line TOROMILL 25290
Grade PH6125
Hand Neutral
Cutting Edge Count (CEDC) 4
Operation Type (CTPT) Profile Milling
Tolerance Class Insert (TCINS) M
Insert Shape Code (SC) R
Inscribed Circle Diameter (IC) 16
Insert Thickness (S) 4.76
Corner Radius (RE) 8
Fixing Hole Diameter (D1) 5.2

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: Palbit RDHW Inserts

View full collection →

You are viewing PAL-111009778. Click any other SKU to view its full details.

Product SKUISO CodeInsert Size & ShapeProduct LineInsert Shape Code (SC)Insert Thickness (S)PriceStock Order
PAL-111008768 RDHW 1003 M0T PH6920RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111009668 RDMW 12T3 M0T PH6920RD12T3TOROMILL 25190R3.97£7.77 In Stock
PAL-111009786 RDMW 1604 M0T PH6135RD1604TOROMILL 25290R4.76£8.20 5 days
PAL-111009778 ViewingRDMW 1604 M0T PH6125RD1604TOROMILL 25290R4.76£8.20 5 days
PAL-111009768 RDMW 1604 M0T PH6920RD1604TOROMILL 25290R4.76£8.20 In Stock
PAL-111009286 RDHW 1604 M0T PH6135RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009268 RDHW 1604 M0T PH6920RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009254 RDHW 1604 M0T PH6910RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-1110092M6 RDHW 1604 M0T PH6103RD1604TOROMILL 25290R4.76£8.86 5 days
PAL-111009678 RDMW 12T3 M0T PH6125RD12T3TOROMILL 25190R3.97£7.77 5 days
PAL-111009686 RDMW 12T3 M0T PH6135RD12T3TOROMILL 25190R3.97£7.77 5 days
PAL-111008786 RDHW 1003 M0T PH6135RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-1110087M6 RDHW 1003 M0T PH6103RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111008754 RDHW 1003 M0T PH6910RD1003TOROMILL 25090R3.18£7.77 5 days
PAL-111054868 RDHW 0702 M0T PH6920RD0702TOROMILL 24590R2.38£7.77 5 days
PAL-1110548M6 RDHW 0702 M0T PH6103RD0702TOROMILL 24590R2.38£7.77 5 days
PAL-111054854 RDHW 0702 M0T PH6910RD0702TOROMILL 24590R2.38£7.77 5 days
