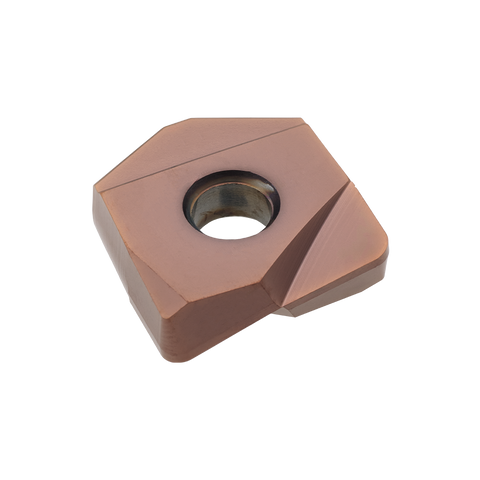

Palbit Indexable Milling Insert - for Profile Milling - WCL-16 R1.5 PHF603
SKU:PAL-11128928F
The Palbit WCL Indexable Milling Insert is engineered for precision profile milling, delivering fine detail, smooth contours, and high surface quality. Built for use with Palbit WCL cutter bodies,...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
| ISO Code | WCL-16 R1.5 PHF603 |
| Insert Size and Shape | WC16 |
| Product Line | W-PRO 62090 |
| Grade | PHF603 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£43.11
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit WCL Indexable Milling Insert is engineered for precision profile milling, delivering fine detail, smooth contours, and high surface quality. Built for use with Palbit WCL cutter bodies, it provides stability, accuracy, and dependable chip control across a wide range of materials.
- WCL compatibility: Designed to integrate seamlessly with Palbit WCL cutter bodies for reliable, aligned performance.
- R1.5 corner radius: Enables tight profiles and smooth transitions in contour work.
- PHF603 grade: PHF603-grade insert crafted to handle diverse materials with consistent results.
- Indexable profile-milling geometry: Optimized geometry for high-precision profile milling, producing fine detail and clean surfaces.
- Chip control: Excellent chip control across a range of materials, helping reduce built-up edges and improve finish.
- Center mounting hole: Central through-hole for secure clamping and easy indexing on WCL bodies.
This insert supports accurate profiles with minimal finishing passes, thanks to its stable seating and precise cutting action. Coupled with WCL cutter bodies, it delivers consistent results on varied materials, enhancing surface finish and overall milling efficiency.
| ISO Code | WCL-16 R1.5 PHF603 |
| Insert Size and Shape | WC16 |
| Product Line | W-PRO 62090 |
| Grade | PHF603 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | L |
| Insert Shape Code (SC) | W |
| Insert Thickness (S) | 4.2 |
| Corner Radius (RE) | 1.5 |
| Insert Length (INSL) | 16.6 |
| Fixing Hole Diameter (D1) | 5 |
