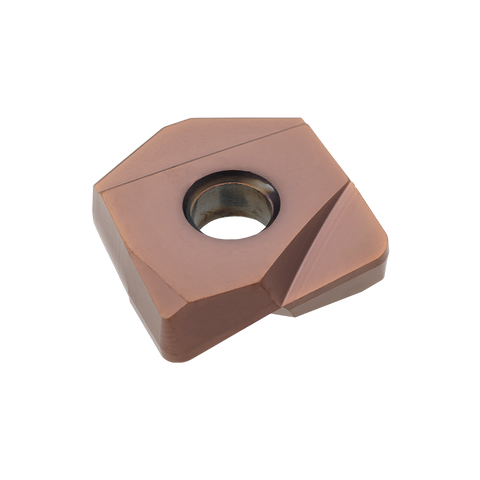

Palbit Indexable Milling Insert - for Profile Milling - WCL-20 R1.5 PHF910
SKU:PAL-11128974F
The Palbit WCL indexable milling insert is engineered for precision profile milling, delivering fine detail, smooth contours, and high‑quality surface finishes when paired with Palbit WCL cutter ...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
| ISO Code | WCL-20 R1.5 PHF910 |
| Insert Size and Shape | WC20 |
| Product Line | W-PRO 62090 |
| Grade | PHF910 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£48.98
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit WCL indexable milling insert is engineered for precision profile milling, delivering fine detail, smooth contours, and high‑quality surface finishes when paired with Palbit WCL cutter bodies.
- Compatibility with WCL cutter bodies: Designed for use with Palbit WCL cutter bodies (WCL-20) to ensure secure, accurate seating during profiling.
- R1.5 corner radius: Corner radius of 1.5 mm enables tight profiles and clean transitions in contour milling.
- PHF910 specification: PHF910 grade/coating (as applicable) optimized for wear resistance and predictable performance across materials.
- Chip control and stability: Engineered for excellent chip evacuation and stable cutting behavior, reducing chatter during profile passes.
- Material versatility: Effective across a range of materials, helping you maintain consistent surface quality on diverse workpieces.
This insert supports precise profile milling with fine detail and smooth contours, delivering consistent surface quality. Its design emphasizes stability, accuracy, and efficient chip control, making it a reliable choice for profiling work on diverse materials when used with the WCL system.
| ISO Code | WCL-20 R1.5 PHF910 |
| Insert Size and Shape | WC20 |
| Product Line | W-PRO 62090 |
| Grade | PHF910 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | L |
| Insert Shape Code (SC) | W |
| Insert Thickness (S) | 5.2 |
| Corner Radius (RE) | 1.5 |
| Insert Length (INSL) | 20 |
| Fixing Hole Diameter (D1) | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit WCL Inserts
View full collection →You are viewing PAL-11128974F. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-11128998F | WCL-20 R3.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128994F | WCL-20 R3.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128988F | WCL-20 R2.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128984F | WCL-20 R2.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128978F | WCL-20 R1.5 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128974F Viewing | WCL-20 R1.5 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128968F | WCL-20 R0.5 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128964F | WCL-20 R0.5 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128958F | WCL-20 R0.3 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128954F | WCL-20 R0.3 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128948F | WCL-16 R3.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128944F | WCL-16 R3.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128938F | WCL-16 R2.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128934F | WCL-16 R2.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128928F | WCL-16 R1.5 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128924F | WCL-16 R1.5 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128914F | WCL-16 R0.5 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128918F | WCL-16 R0.5 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128898F | WCL-12 R3.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128908F | WCL-16 R0.3 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128904F | WCL-16 R0.3 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128894F | WCL-12 R3.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128888F | WCL-12 R2.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128884F | WCL-12 R2.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128878F | WCL-12 R1.5 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128874F | WCL-12 R1.5 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128868F | WCL-12 R0.5 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128864F | WCL-12 R0.5 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128858F | WCL-12 R0.3 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128854F | WCL-12 R0.3 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128848F | WCL-10 R2.0 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128844F | WCL-10 R2.0 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128838F | WCL-10 R1.5 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128834F | WCL-10 R1.5 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128828F | WCL-10 R0.5 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128824F | WCL-10 R0.5 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128818F | WCL-10 R0.3 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128814F | WCL-10 R0.3 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128808F | WCL-08 R0.5 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128804F | WCL-08 R0.5 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128798F | WCL-08 R0.3 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128794F | WCL-08 R0.3 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128534F | WCL-08 R1.0 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128538F | WCL-08 R1.0 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128488F | WCL-10 R1.0 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128484F | WCL-10 R1.0 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11120984F | WCL-20 R1.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11120988F | WCL-20 R1.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11120978F | WCL-16 R1.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11120974F | WCL-16 R1.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11120968F | WCL-12 R1.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11120964F | WCL-12 R1.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days |
