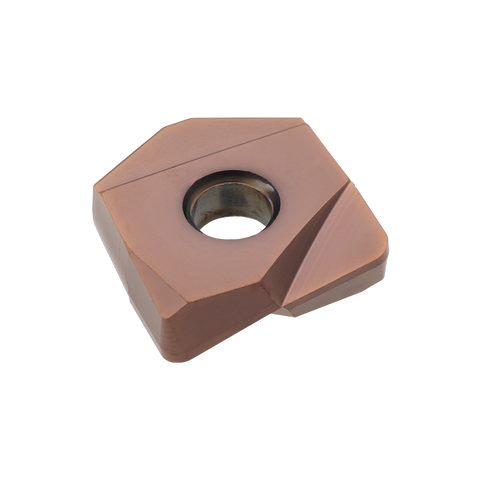

Palbit Indexable Milling Insert - for Profile Milling - WCL-20 R0.5 PHF603
SKU:PAL-11128968F
The Palbit WCL indexable milling insert is built for precision profile milling, delivering fine details, smooth contours, and superior surface quality when paired with Palbit WCL cutter bodies.
...
Read more ↓
Material Compatibility
P
H
Specification
View all specifications ↓
| ISO Code | WCL-20 R0.5 PHF603 |
| Insert Size and Shape | WC20 |
| Product Line | W-PRO 62090 |
| Grade | PHF603 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
£48.98
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
The Palbit WCL indexable milling insert is built for precision profile milling, delivering fine details, smooth contours, and superior surface quality when paired with Palbit WCL cutter bodies.
- Compatibility: Engineered for use with Palbit WCL cutter bodies to ensure a secure, stable mounting and repeatable results.
- Nose Radius: R0.5 geometry supports tight contouring and refined finishing on complex profiles.
- Indexable Design: Multiple cutting edges per insert extend tool life and optimize material removal efficiency.
- Profile Milling Performance: Optimized geometry enables accurate profiling, consistent stepovers, and clean transitions across materials.
- Chip Control: Designed for effective chip evacuation to reduce burrs and improve surface finish in challenging cuts.
- Material Range: Suitable for use across a range of materials, enabling versatile performance on diverse projects.
This insert delivers dependable precision for detailed profile work, helping you maintain tight tolerances and high surface quality with fewer finishing passes. Its stable seating and efficient chip flow support consistent results across complex geometries when used with WCL tooling, making it ideal for fine contours, radii, and smooth transitions in precision components and molds.
| ISO Code | WCL-20 R0.5 PHF603 |
| Insert Size and Shape | WC20 |
| Product Line | W-PRO 62090 |
| Grade | PHF603 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 2 |
| Operation Type (CTPT) | Profile Milling |
| Tolerance Class Insert (TCINS) | L |
| Insert Shape Code (SC) | W |
| Insert Thickness (S) | 5.2 |
| Corner Radius (RE) | 0.5 |
| Insert Length (INSL) | 20 |
| Fixing Hole Diameter (D1) | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
★★★★★
first place we look
honest about stock and prices are competitive.
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Full Range: Palbit WCL Inserts
View full collection →You are viewing PAL-11128968F. Click any other SKU to view its full details.
| Product SKU | ISO Code | Insert Size & Shape | Product Line | Insert Shape Code (SC) | Insert Thickness (S) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-11128998F | WCL-20 R3.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128994F | WCL-20 R3.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128988F | WCL-20 R2.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128984F | WCL-20 R2.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128978F | WCL-20 R1.5 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128974F | WCL-20 R1.5 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128968F Viewing | WCL-20 R0.5 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128964F | WCL-20 R0.5 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128958F | WCL-20 R0.3 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128954F | WCL-20 R0.3 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11128948F | WCL-16 R3.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128944F | WCL-16 R3.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128938F | WCL-16 R2.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128934F | WCL-16 R2.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128928F | WCL-16 R1.5 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128924F | WCL-16 R1.5 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128914F | WCL-16 R0.5 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128918F | WCL-16 R0.5 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128898F | WCL-12 R3.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128908F | WCL-16 R0.3 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128904F | WCL-16 R0.3 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11128894F | WCL-12 R3.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128888F | WCL-12 R2.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128884F | WCL-12 R2.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128878F | WCL-12 R1.5 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128874F | WCL-12 R1.5 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128868F | WCL-12 R0.5 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128864F | WCL-12 R0.5 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128858F | WCL-12 R0.3 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128854F | WCL-12 R0.3 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11128848F | WCL-10 R2.0 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128844F | WCL-10 R2.0 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128838F | WCL-10 R1.5 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128834F | WCL-10 R1.5 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128828F | WCL-10 R0.5 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128824F | WCL-10 R0.5 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128818F | WCL-10 R0.3 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128814F | WCL-10 R0.3 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128808F | WCL-08 R0.5 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128804F | WCL-08 R0.5 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128798F | WCL-08 R0.3 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128794F | WCL-08 R0.3 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128534F | WCL-08 R1.0 PHF910 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128538F | WCL-08 R1.0 PHF603 | WC08 | W-PRO 62090 | W | 2.1 | £32.33 | 5 days | |
| PAL-11128488F | WCL-10 R1.0 PHF603 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11128484F | WCL-10 R1.0 PHF910 | WC10 | W-PRO 62090 | W | 2.7 | £35.28 | 5 days | |
| PAL-11120984F | WCL-20 R1.0 PHF910 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11120988F | WCL-20 R1.0 PHF603 | WC20 | W-PRO 62090 | W | 5.2 | £48.98 | 5 days | |
| PAL-11120978F | WCL-16 R1.0 PHF603 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11120974F | WCL-16 R1.0 PHF910 | WC16 | W-PRO 62090 | W | 4.2 | £43.11 | 5 days | |
| PAL-11120968F | WCL-12 R1.0 PHF603 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days | |
| PAL-11120964F | WCL-12 R1.0 PHF910 | WC12 | W-PRO 62090 | W | 3.2 | £37.71 | 5 days |
