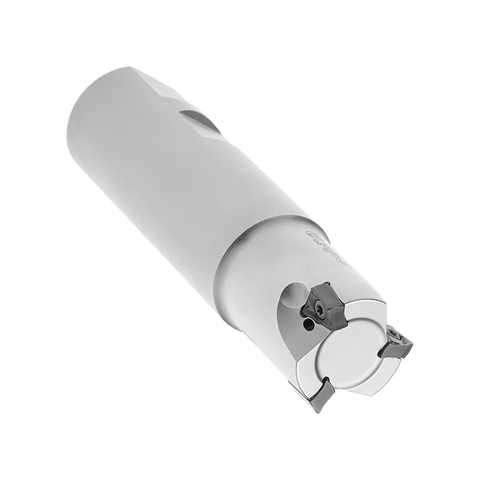

Palbit Weldon Shank Holder - For AN1004 Inserts - 20mm Cutter Diameter - 181071400

PAL-181071400

Availability: 5 days Estimated lead time, subject to availability

Designed for secure and precise grooving and parting operations, Palbit Weldon Shank Holders for AN1004 inserts provide excellent rigidity and reliable insert retention. These holders are ideal ... Read more

Specification Value
Insert Size & Shape AN1004
Depth of Cut Maximum (APMX) 9
Cutting Item Count (CICT) 2
Connection Diameter (DCONMS) 20
Adaptive Interface Machine Direction Weldon Shank
Tool Cutting Edge Angle (KAPR) 90
Cutting Diameter (DC) 20
Torque (TQ) 1.4
Functional Length (LF) 100
Axial Rake Angel (GAMP) -6
Rdial Rake Angle (GAMF) -28

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for secure and precise grooving and parting operations, Palbit Weldon Shank Holders for AN1004 inserts provide excellent rigidity and reliable insert retention. These holders are ideal for CNC machining tasks that demand accuracy, stability, and extended tool life. Trusted by engineers and machinists for consistent performance and superior surface finishes in demanding production environments.
