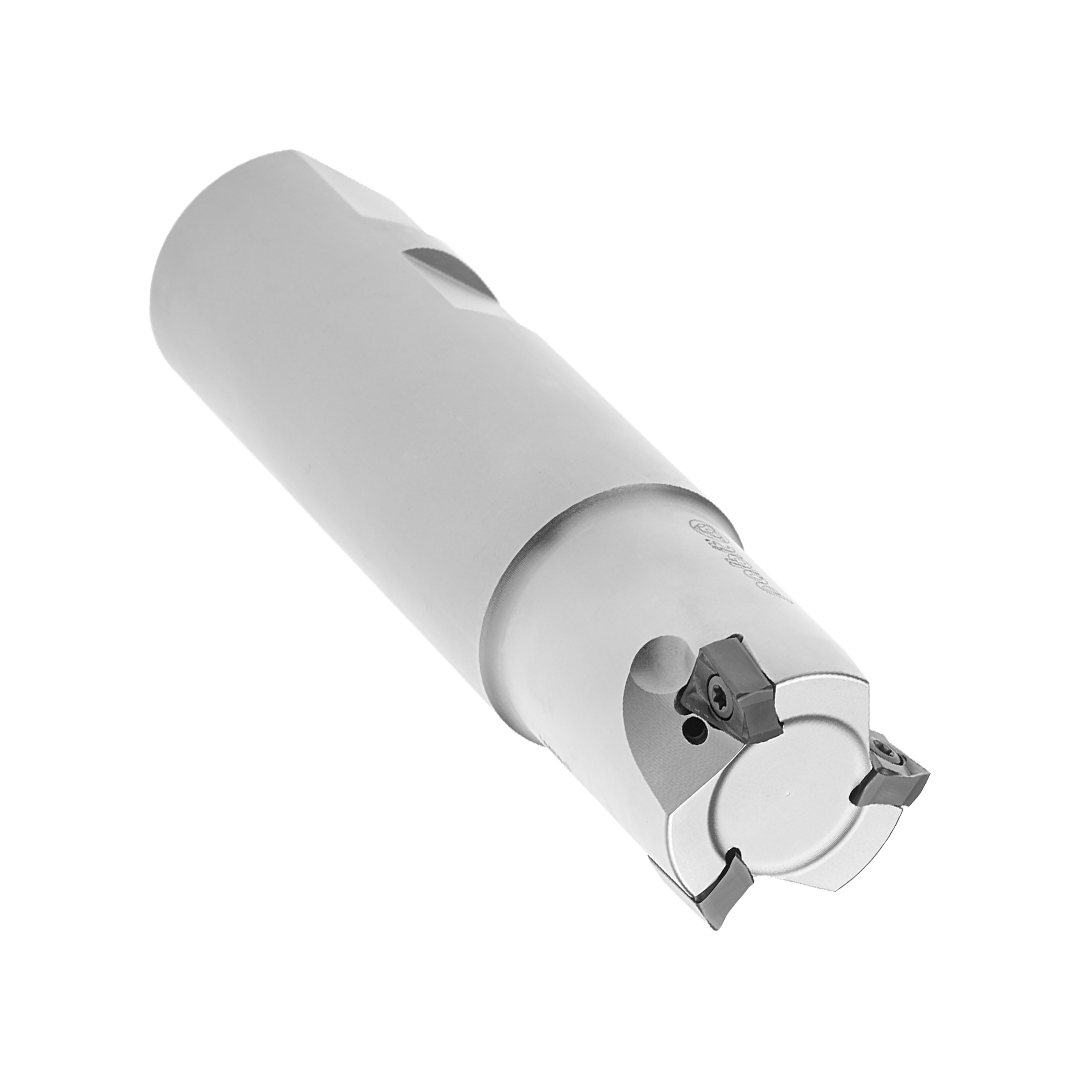

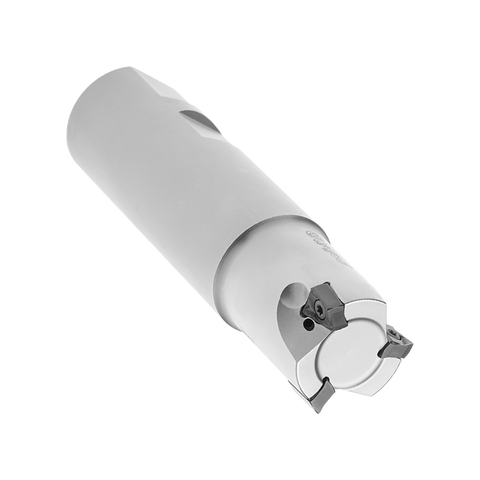

Palbit Weldon Shank Holder - For AN1004 Inserts - 32mm Cutter Diameter - 181074700
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Designed for secure and precise grooving and parting operations, the Palbit Weldon Shank Holder for AN1004 inserts delivers exceptional rigidity and reliable insert retention. It is built for CNC tasks that demand accuracy, stability, and extended tool life.
- Compatibility: Specifically designed for AN1004 inserts, ensuring a precise, secure fit.
- 32mm Cutter Diameter: Engineered for a 32mm cutting diameter to suit common grooving and parting applications.
- Rigid Weldon Shank: Weldon-style shank provides high rigidity for stable cutting and reduced vibration.
- Secure Insert Retention: Keeps the insert firmly mounted for consistent depth and finish.
- Grooving and Parting Precision: Optimized geometry for accurate groove profiles and clean parting faces.
- Durable for CNC Environments: Built to perform reliably in demanding production settings with minimal downtime.
Designed to maximize accuracy and surface finish, this holder delivers stable performance during high-precision grooving and parting operations. Its rigid construction and secure insert retention reduce chatter and unintended movement, helping engineers achieve repeatable results and longer tool life in challenging production environments.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 125 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -23 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Weldon Shank
View full collection →You are viewing PAL-181074700. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181074900 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £203.02 | 5 days | |
| PAL-181074800 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £187.88 | 5 days | |
| PAL-181074700 Viewing | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £179.38 | 5 days | |
| PAL-181074600 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £164.07 | 5 days | |
| PAL-181074500 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £155.21 | 5 days | |
| PAL-181074400 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £139.35 | 5 days | |
| PAL-181071500 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £149.14 | 5 days | |
| PAL-181071400 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £133.06 | 5 days | |
| PAL-181075200 | AN1004 | Shouldering Cutters | Weldon Shank | 18 | 90 | £131.58 | 5 days | |
| PAL-181101400 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 90 | £123.47 | 5 days | |
| PAL-181096800 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 150 | £129.75 | 5 days | |
| PAL-181075000 | AN1004 | Shouldering Cutters | Weldon Shank | 14 | 90 | £113.32 | 5 days |
