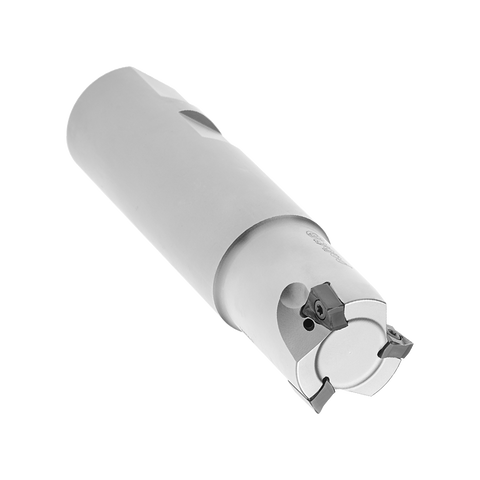

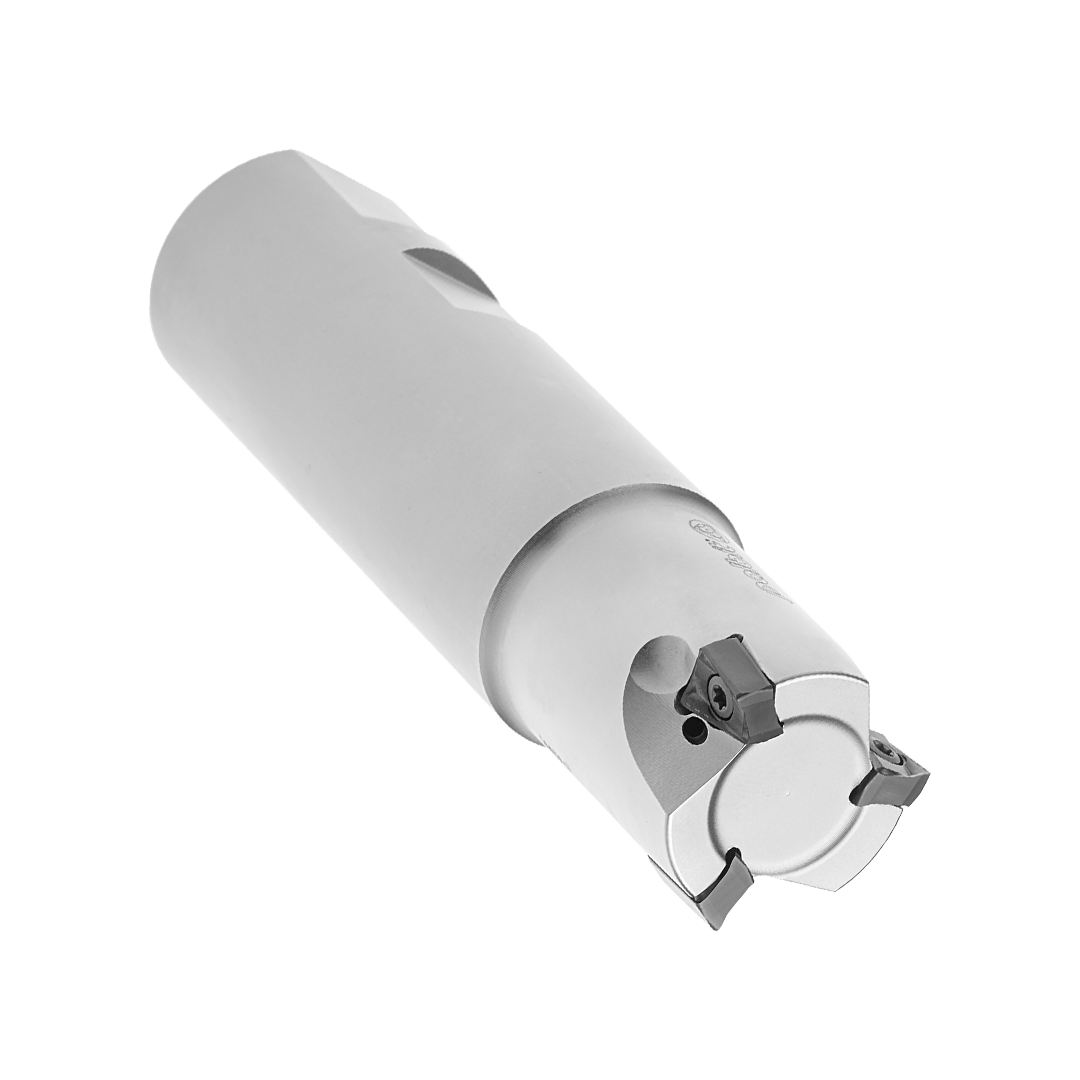

Palbit Weldon Shank Holder - For AN1004 Inserts - 20mm Cutter Diameter - 181071500
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Weldon Shank Holder for AN1004 inserts is a precision CNC tool holder that delivers reliable insert retention and rigid performance for grooving and parting operations. With a 20 mm cutter diameter, it supports consistent, high-quality finishes in demanding production environments.
- Compatibility: For AN1004 inserts
- Shank Type: Weldon shank design for secure seating
- Cutting Diameter: 20 mm cutter diameter
- Rigidity: High rigidity to minimize deflection during cutting
- Insert Retention: Reliable retention to prevent insert movement
- Applications: Optimized for grooving and parting in CNC machining
- Performance: Consistent performance and extended tool life in demanding environments
This holder helps achieve accurate groove depths and clean parting results by maintaining precise alignment and minimizing insert movement. The robust Weldon interface enhances clamping stability, contributing to better surface finishes and longer tool life, which translates to lower downtime and more reliable production cycles.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 20 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 100 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -23 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Weldon Shank
View full collection →You are viewing PAL-181071500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181074900 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £203.02 | 5 days | |
| PAL-181074800 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £187.88 | 5 days | |
| PAL-181074700 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £179.38 | 5 days | |
| PAL-181074600 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £164.07 | 5 days | |
| PAL-181074500 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £155.21 | 5 days | |
| PAL-181074400 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £139.35 | 5 days | |
| PAL-181071500 Viewing | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £149.14 | 5 days | |
| PAL-181071400 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £133.06 | 5 days | |
| PAL-181075200 | AN1004 | Shouldering Cutters | Weldon Shank | 18 | 90 | £131.58 | 5 days | |
| PAL-181101400 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 90 | £123.47 | 5 days | |
| PAL-181096800 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 150 | £129.75 | 5 days | |
| PAL-181075000 | AN1004 | Shouldering Cutters | Weldon Shank | 14 | 90 | £113.32 | 5 days |
