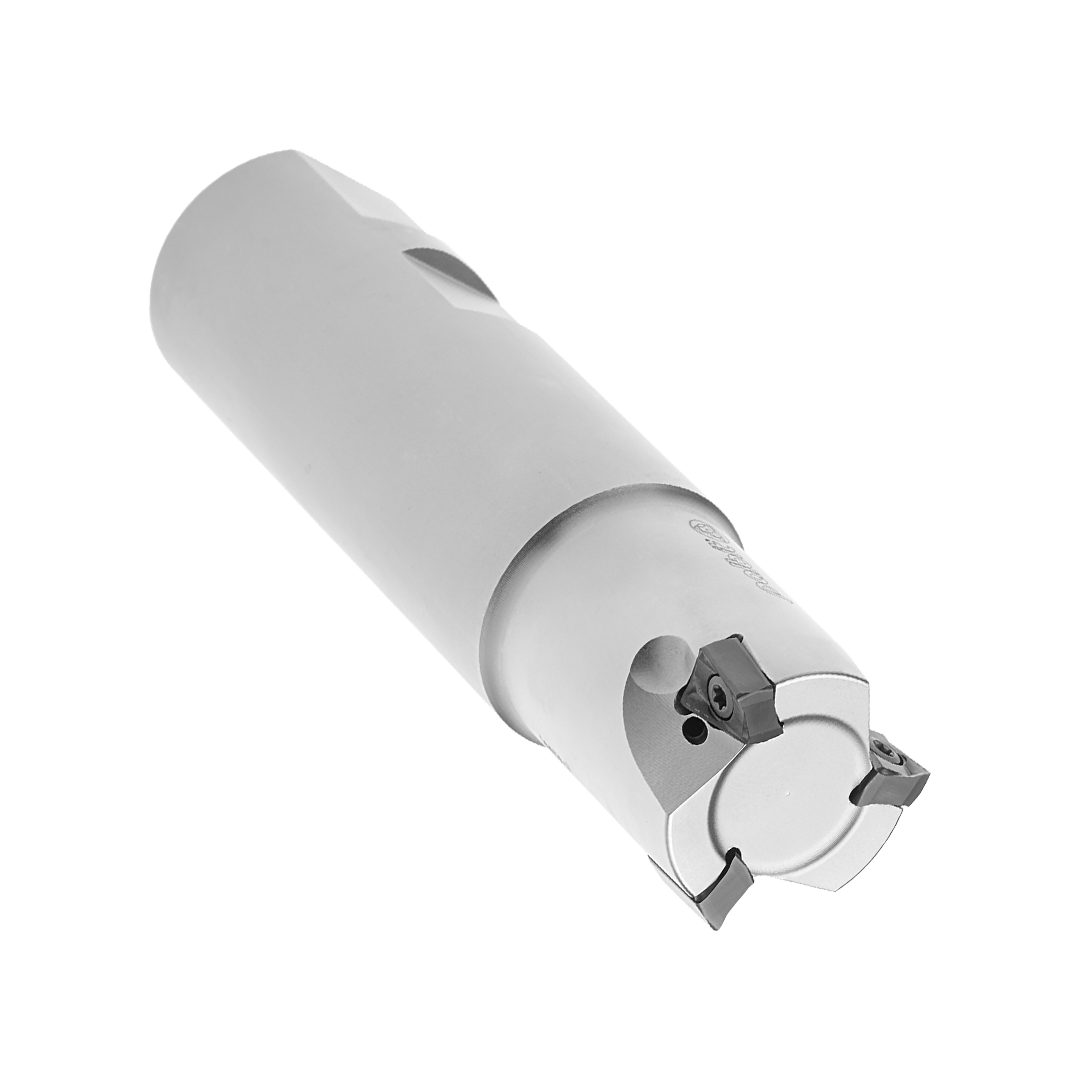

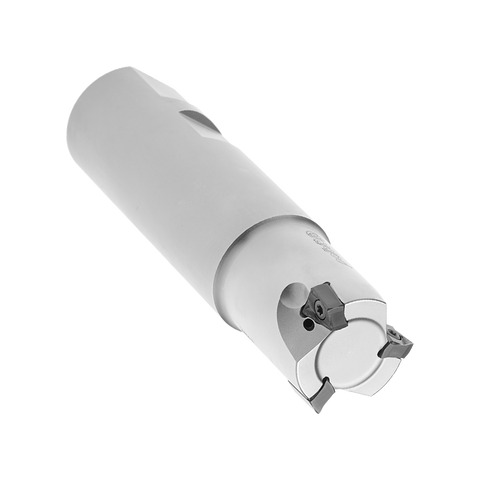

Palbit Weldon Shank Holder - For AN1004 Inserts - 25mm Cutter Diameter - 181074500
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit's Weldon Shank Holder for AN1004 inserts delivers secure seating and rigid performance for grooving and parting in CNC machining. Built for precision and long tool life, it maintains reliable insert retention and consistent results under demanding production conditions.
- Compatibility: Specifically engineered for AN1004 inserts to ensure proper fit and alignment.
- Cutter Diameter: 25 mm cutter diameter supports versatile grooving and parting operations.
- Rigidity and Insert Retention: High rigidity and reliable retention minimize deflection during cutting.
- Application Focus: Optimized for secure grooving and precise parting cuts in CNC environments.
- Production Performance: Supports consistent performance and extended tool life in demanding settings.
- Professional Reliability: Trusted by engineers and machinists for dependable, repeatable results and superior surface finishes.
The result is stable, accurate cuts with clean finishes. The combination of rigid construction and dependable insert retention reduces chatter and promotes longer tool life, delivering predictable performance across high-speed, high-load production runs.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 25 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 25 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 115 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -23 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Weldon Shank
View full collection →You are viewing PAL-181074500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181074900 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £203.02 | 5 days | |
| PAL-181074800 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £187.88 | 5 days | |
| PAL-181074700 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £179.38 | 5 days | |
| PAL-181074600 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £164.07 | 5 days | |
| PAL-181074500 Viewing | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £155.21 | 5 days | |
| PAL-181074400 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £139.35 | 5 days | |
| PAL-181071500 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £149.14 | 5 days | |
| PAL-181071400 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £133.06 | 5 days | |
| PAL-181075200 | AN1004 | Shouldering Cutters | Weldon Shank | 18 | 90 | £131.58 | 5 days | |
| PAL-181101400 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 90 | £123.47 | 5 days | |
| PAL-181096800 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 150 | £129.75 | 5 days | |
| PAL-181075000 | AN1004 | Shouldering Cutters | Weldon Shank | 14 | 90 | £113.32 | 5 days |
