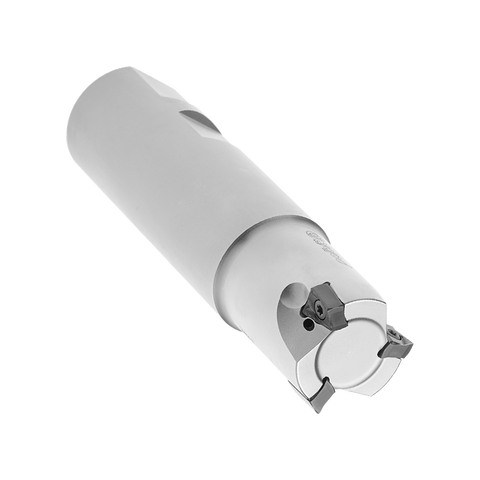

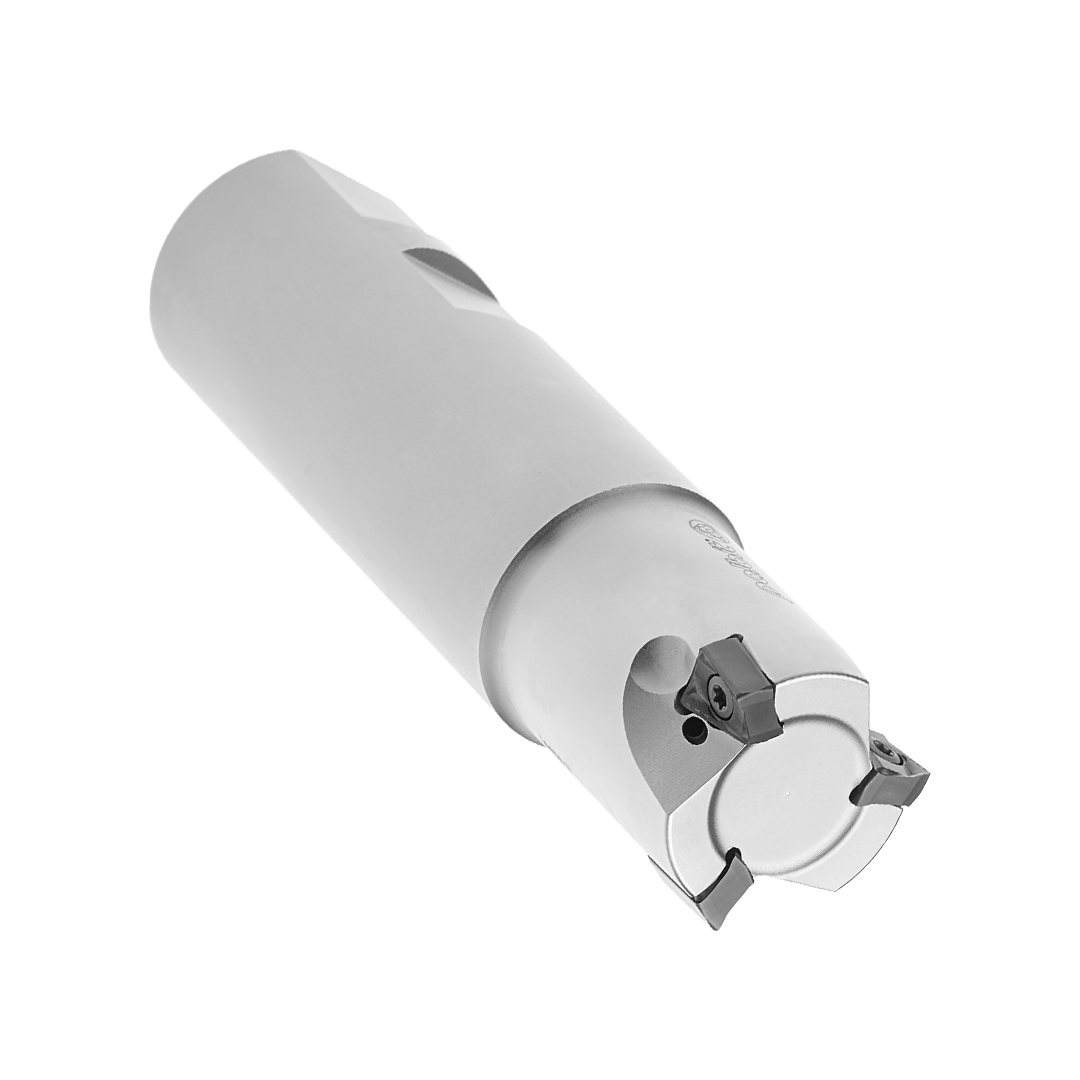

Palbit Weldon Shank Holder - For AN1004 Inserts - 16mm Cutter Diameter - 181096800
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Engineered Palbit Weldon Shank Holder, designed for AN1004 inserts, provides stable support for precision grooving and parting on CNC machines. This holder targets engineers and machinists who demand rigidity, reliable insert retention, and consistent, high-quality finishes in demanding production environments.
- Inserts compatibility: Specifically designed for AN1004 inserts to ensure secure seating and precise alignment.
- Cutter diameter: 16 mm cutter diameter.
- Rigidity and insert retention: Delivers excellent rigidity and reliable insert retention for stable, consistent cutting performance.
- Applications: Ideal for CNC grooving and parting operations where accuracy and surface finish matter.
- Durability and production reliability: Built to perform in demanding production environments, supporting extended tool life and repeatable results.
- Part number: 181096800
With rigid clamping and precise alignment, this holder minimizes deflection and runout, helping achieve smoother surface finishes and longer tool life. Its reliable insert retention reduces downtime for tool changes and re-seating, supporting consistent production throughput in demanding environments.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 2 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Weldon Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 16 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 150 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -23 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Weldon Shank
View full collection →You are viewing PAL-181096800. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181074900 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £203.02 | 5 days | |
| PAL-181074800 | AN1004 | Shouldering Cutters | Weldon Shank | 40 | 130 | £187.88 | 5 days | |
| PAL-181074700 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £179.38 | 5 days | |
| PAL-181074600 | AN1004 | Shouldering Cutters | Weldon Shank | 32 | 125 | £164.07 | 5 days | |
| PAL-181074500 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £155.21 | 5 days | |
| PAL-181074400 | AN1004 | Shouldering Cutters | Weldon Shank | 25 | 115 | £139.35 | 5 days | |
| PAL-181071500 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £149.14 | 5 days | |
| PAL-181071400 | AN1004 | Shouldering Cutters | Weldon Shank | 20 | 100 | £133.06 | 5 days | |
| PAL-181075200 | AN1004 | Shouldering Cutters | Weldon Shank | 18 | 90 | £131.58 | 5 days | |
| PAL-181101400 | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 90 | £123.47 | 5 days | |
| PAL-181096800 Viewing | AN1004 | Shouldering Cutters | Weldon Shank | 16 | 150 | £129.75 | 5 days | |
| PAL-181075000 | AN1004 | Shouldering Cutters | Weldon Shank | 14 | 90 | £113.32 | 5 days |
