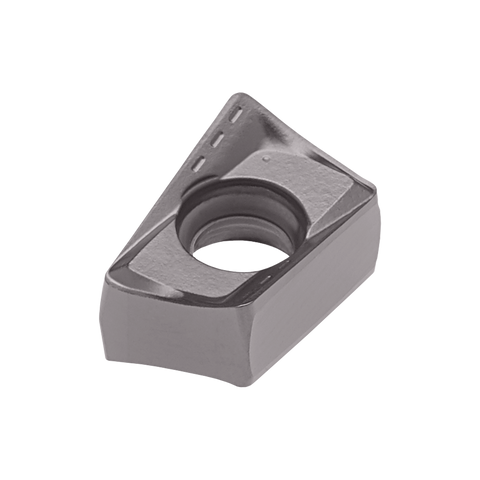

Palbit Indexable Milling Insert - for Shoulder Milling - ANHX 100408 PNER-LM PHP930
SKU:PAL-1112162P4
Palbit ANHX indexable milling insert, model ANHX 100408 PNER-LM PHP930, is engineered for precise shoulder milling operations. Its robust carbide construction and optimized cutting geometry deliv...
Read more ↓
Material Compatibility
P
K
Specification
View all specifications ↓
| ISO Code | ANHX 100408 PNER-LM PHP930 |
| Insert Size and Shape | AN1004 |
| Product Line | PLUS 17190 |
| Grade | PHP930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
£15.12
Prices shown ex. VAT
5 days estimated lead time
— subject to availability
View Other Sizes →
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Learn more about Klarna
Palbit ANHX indexable milling insert, model ANHX 100408 PNER-LM PHP930, is engineered for precise shoulder milling operations. Its robust carbide construction and optimized cutting geometry deliver excellent edge stability and a superior surface finish in demanding machining environments.
- Intended Use: Shoulder milling operations
- Material: Robust carbide construction for rigidity and wear resistance
- Cutting Geometry: Optimized geometry to promote stable cutting and efficient chip evacuation
- Edge Stability: Excellent edge stability to resist chipping and maintain consistency
- Surface Finish: Delivers a superior surface finish on shoulder features
- Tool Life: Designed for long tool life in demanding machining environments
- Model: ANHX 100408 PNER-LM PHP930
With its carbide robustness and optimized cutting geometry, this insert helps achieve precise shoulder surfaces with consistent tolerances. The combination of edge stability and efficient cutting reduces chatter, supports higher productivity, and delivers a high-quality finish on every part, even in challenging materials and conditions.
| ISO Code | ANHX 100408 PNER-LM PHP930 |
| Insert Size and Shape | AN1004 |
| Product Line | PLUS 17190 |
| Grade | PHP930 |
| Hand | Right |
| Cutting Edge Count (CEDC) | 4 |
| Operation Type (CTPT) | Shoulder Milling |
| Tolerance Class Insert (TCINS) | H |
| Insert Shape Code (SC) | A |
| Insert Thickness (S) | 6.2 |
| Corner Radius (RE) | 0.8 |
| Insert Length (INSL) | 10 |
| Fixing Hole Diameter (D1) | 3.65 |
| Chip Breaker (CBMD) | LM |
| Wiper Edge Length (BS) | 0.6 |
