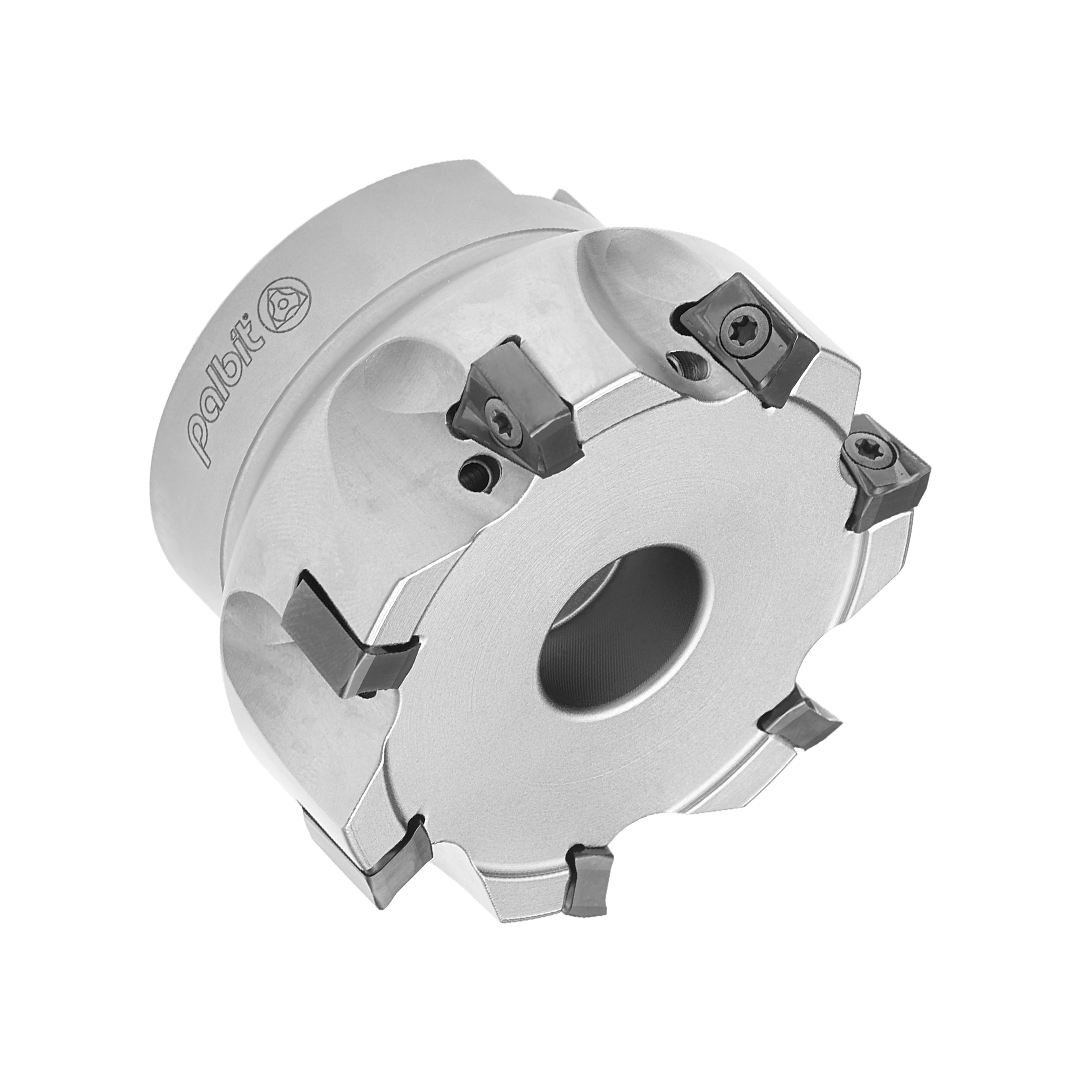

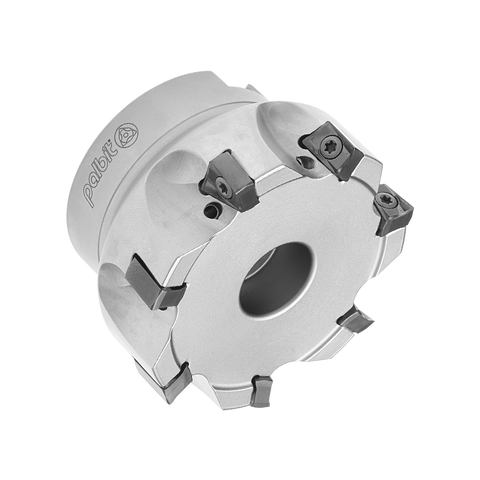

Palbit Arbor Mounting Holder - For AN1004 Inserts - 40mm Cutter Diameter - 181075300
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 32 |
Learn more about Klarna
Palbit Arbor Mounting Holder for AN1004 inserts delivers stable, high-precision support designed for grooving and parting operations in CNC machining. Built to maximize rigidity and accuracy, it keeps AN1004 inserts firmly in place for clean cuts at high speeds.
- Compatibility: Fits AN1004 inserts for secure, repeatable toolholding.
- Cutting Diameter: 40 mm cutter diameter optimized for compact tooling envelopes.
- Part Number: 181075300 for easy ordering and inventory tracking.
- Rigidity and Stability: Precision-ground body and clamp geometry minimize deflection during cutting.
- Application Focus: Geared toward precision grooving and parting in tight-tolerance contexts.
- High-Speed Performance: Engineered to deliver clean cuts with reduced tool wear in CNC environments.
By securely mounting AN1004 inserts, this holder reduces runout and ensures consistent diameters, improving surface finish and tool life. Its robust design stands up to the rigors of high-speed machining, delivering reliable performance in tight-tolerance applications.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 4 |
| Connection Diameter (DCONMS) | 16 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 32 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 40 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -21 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Arbor Mounting
View full collection →You are viewing PAL-181075300. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181076000 | AN1004 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £337.57 | 5 days | |
| PAL-181075900 | AN1004 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £321.70 | 5 days | |
| PAL-181075800 | AN1004 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £308.77 | 5 days | |
| PAL-181075700 | AN1004 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £277.77 | 5 days | |
| PAL-181075600 | AN1004 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £273.33 | 5 days | |
| PAL-181075500 | AN1004 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £242.15 | 5 days | |
| PAL-181075400 | AN1004 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £231.62 | 5 days | |
| PAL-181075300 Viewing | AN1004 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £215.93 | 5 days | |
| PAL-181076200 | AN1004 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £394.58 | 5 days | |
| PAL-181076100 | AN1004 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £360.44 | 5 days |
