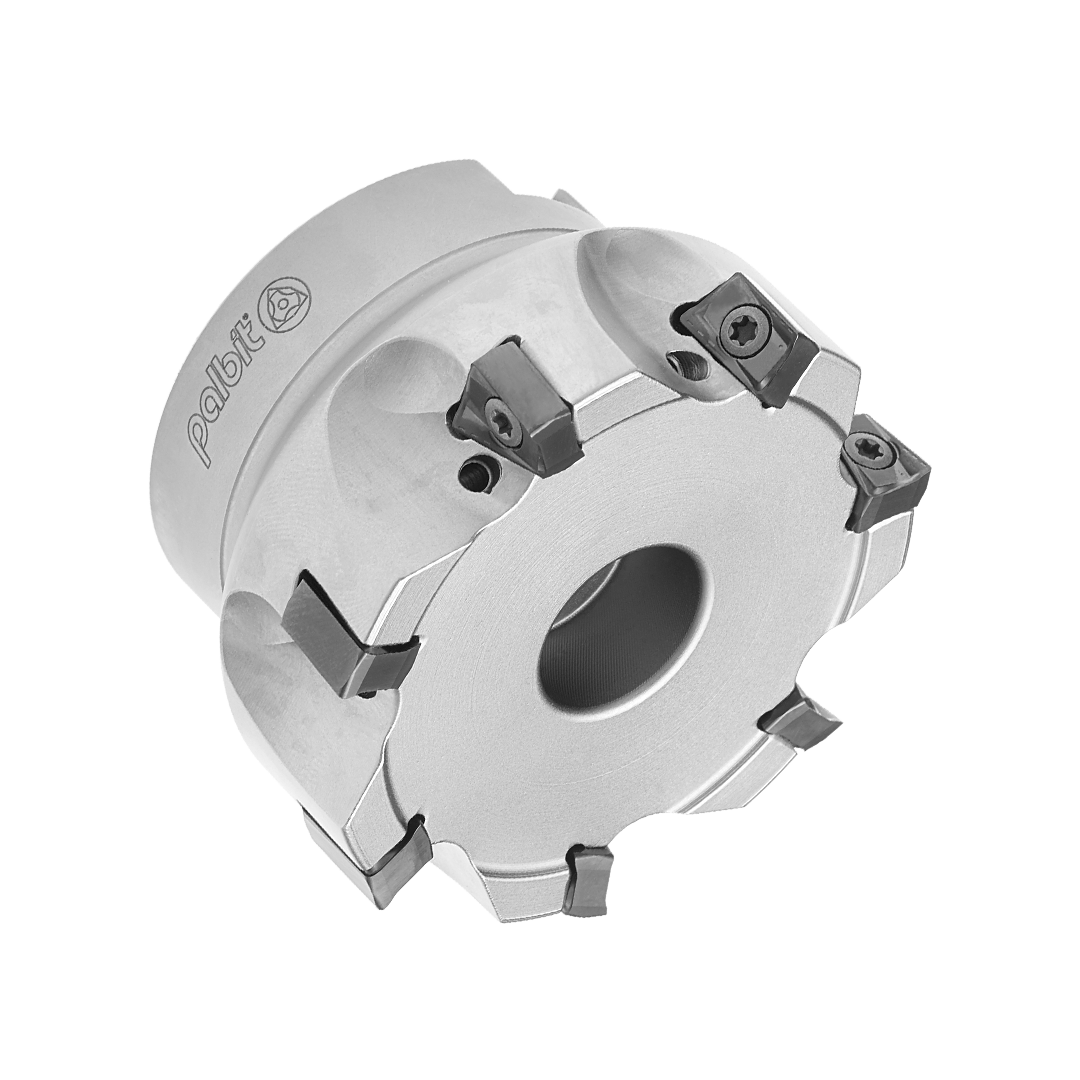

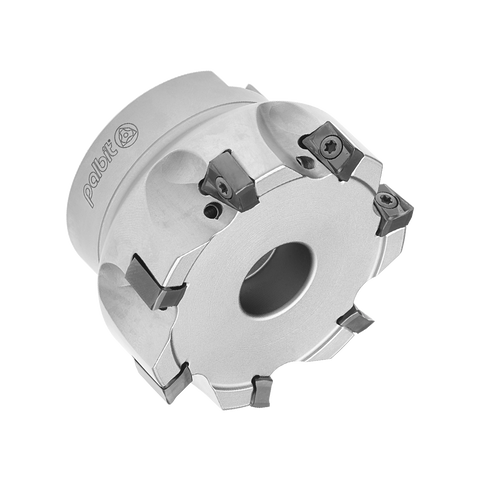

Palbit Arbor Mounting Holder - For AN1004 Inserts - 63mm Cutter Diameter - 181075700
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
Learn more about Klarna
Palbit Arbor Mounting Holder is a precision accessory designed to secure AN1004 inserts for high-accuracy grooving and parting operations. Built for engineers and machinists who demand reliability in tight-tolerance CNC work.
- Compatibility: Fits AN1004 inserts with optimal stability and performance
- 63 mm Cutter Diameter: Provides balanced rigidity and predictable cutting engagement
- Rigidity and Precision: Delivers excellent rigidity and accuracy for high-speed machining
- Primary Applications: Specifically engineered for precision grooving and parting operations
When paired with AN1004 inserts, this holder supports repeatable alignment and stable cutting at high speeds, contributing to clean cuts and reduced tool wear. It’s a reliable choice for tight-tolerance applications where consistent performance and reduced downtime matter most.
| Insert Size & Shape | AN1004 |
| Depth of Cut Maximum (APMX) | 9 |
| Cutting Item Count (CICT) | 7 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 63 |
| Torque (TQ) | 1.4 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -7 |
| Rdial Rake Angle (GAMF) | -21 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17190 - Arbor Mounting
View full collection →You are viewing PAL-181075700. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181076000 | AN1004 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £337.57 | 5 days | |
| PAL-181075900 | AN1004 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £321.70 | 5 days | |
| PAL-181075800 | AN1004 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £308.77 | 5 days | |
| PAL-181075700 Viewing | AN1004 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £277.77 | 5 days | |
| PAL-181075600 | AN1004 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £273.33 | 5 days | |
| PAL-181075500 | AN1004 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £242.15 | 5 days | |
| PAL-181075400 | AN1004 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £231.62 | 5 days | |
| PAL-181075300 | AN1004 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £215.93 | 5 days | |
| PAL-181076200 | AN1004 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £394.58 | 5 days | |
| PAL-181076100 | AN1004 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £360.44 | 5 days |
