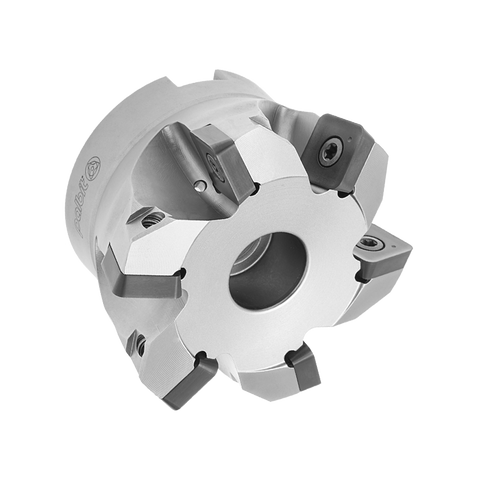

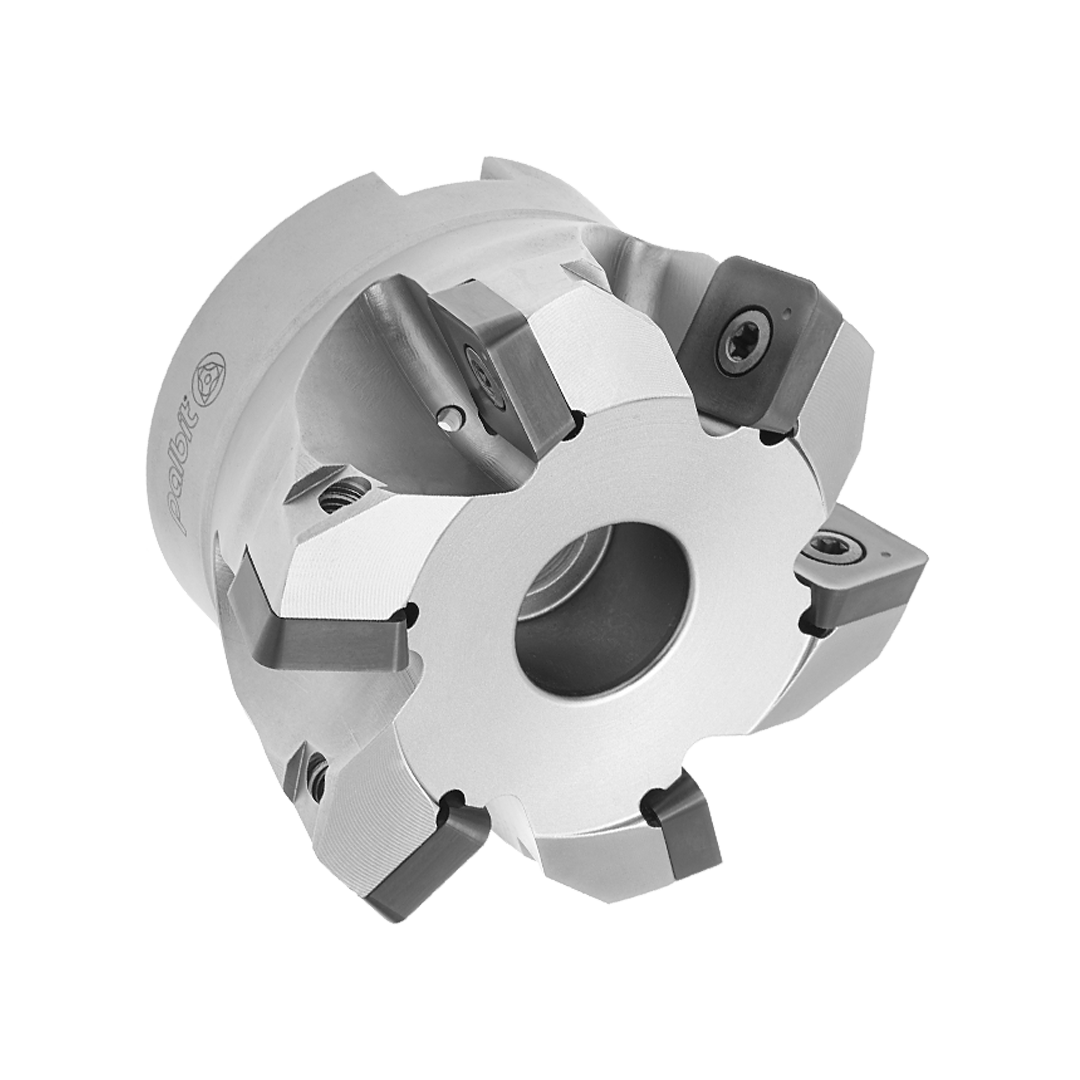

Palbit Arbor Mounting Holder - For SO1606 Inserts - 66mm Cutter Diameter - 181081900
| Insert Size & Shape | SO1606 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
Learn more about Klarna
Palbit Arbor Mounting Holder is engineered for high-performance grooving and parting with SO1606 inserts, delivering robust rigidity and secure clamping for demanding CNC applications.
- Compatibility: Specifically designed for SO1606 inserts to ensure reliable seating and alignment.
- Cutter Diameter: 66 mm diameter tailored for precise grooving and parting operations.
- Rigid Mounting: Exceptional rigidity and secure clamping reduce deflection during heavy cutting.
- Precision Cutting: Maintains accurate tool positioning for consistent tolerances and surface finish.
- Chip Evacuation: Optimized design supports efficient chip removal to minimize downtime.
- Tool Longevity: Built to withstand tough production environments, extending overall tool life.
Designed for engineers and machinists aiming for superior results in challenging production environments, this holder translates rigidity and secure clamping into stable cuts, reduced wear, and dependable performance across long runs.
| Insert Size & Shape | SO1606 |
| Depth of Cut Maximum (APMX) | 3.5 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 27 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 48 |
| Tool Cutting Edge Angle (KAPR) | 15 |
| Cutting Diameter (DC) | 66 |
| Torque (TQ) | 5 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | 2 |
| Rdial Rake Angle (GAMF) | 2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: HIFEED 06815 - Arbor Mounting
View full collection →You are viewing PAL-181081900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181082300 | SO1610 | HI Feed | Arbor Mounting | 160 | 63 | £499.96 | 5 days | |
| PAL-181082100 | SO1608 | HI Feed | Arbor Mounting | 100 | 50 | £338.29 | 5 days | |
| PAL-181082200 | SO1609 | HI Feed | Arbor Mounting | 125 | 63 | £419.50 | 5 days | |
| PAL-181082000 | SO1607 | HI Feed | Arbor Mounting | 80 | 50 | £274.43 | 5 days | |
| PAL-181081900 Viewing | SO1606 | HI Feed | Arbor Mounting | 66 | 50 | £239.75 | 5 days | |
| PAL-181100400 | SO1605 | HI Feed | Arbor Mounting | 63 | 50 | £233.28 | 5 days |
