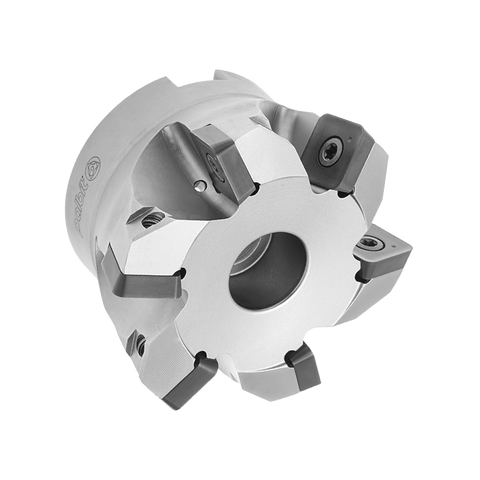

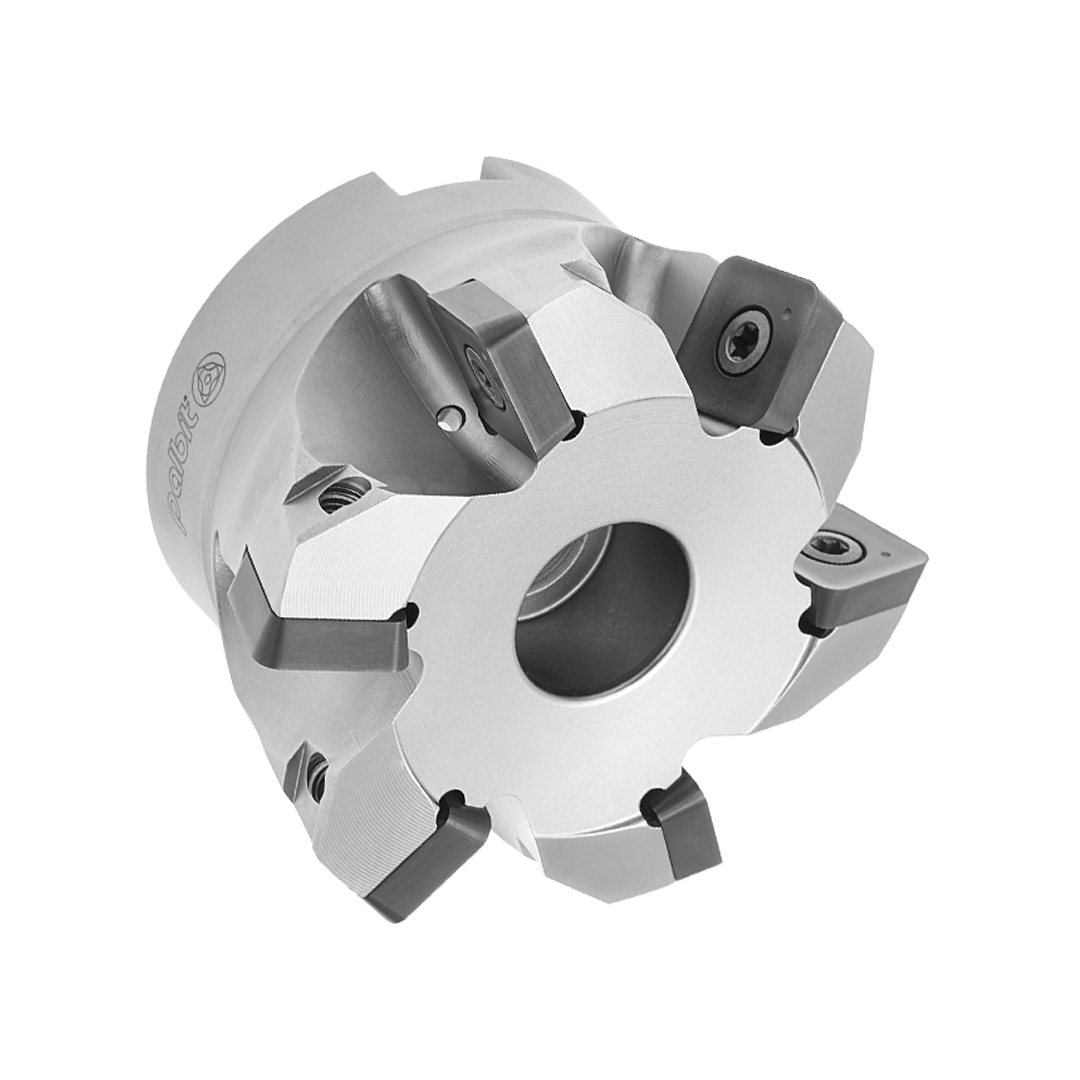

Palbit Arbor Mounting Holder - For SO1609 Inserts - 125mm Cutter Diameter - 181082200

PAL-181082200

Availability: 5 days Estimated lead time, subject to availability

Designed for heavy-duty grooving and parting, Palbit Arbor Mounting Holders for SO1609 inserts offer superior rigidity and secure insert retention. These holders provide precise cutting performa... Read more

Specification Value
Insert Size & Shape SO1609
Depth of Cut Maximum (APMX) 3.5
Cutting Item Count (CICT) 10
Connection Diameter (DCONMS) 40
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 90
Tool Cutting Edge Angle (KAPR) 15
Cutting Diameter (DC) 125
Torque (TQ) 5
Functional Length (LF) 63
Axial Rake Angel (GAMP) 2
Rdial Rake Angle (GAMF) -5

Need Assistance?

Speak to our Expert Team

Call Sales

01732 887334

Mon - Fri | 9am - 5pm

Email Us

info@protool-ltd.co.uk

Our team is ready to assist

Designed for heavy-duty grooving and parting, Palbit Arbor Mounting Holders for SO1609 inserts offer superior rigidity and secure insert retention. These holders provide precise cutting performance, excellent chip control, and extended tool life, making them ideal for demanding CNC machining applications. Trusted by engineers and machinists seeking reliable accuracy and consistent results in tough production environments.
