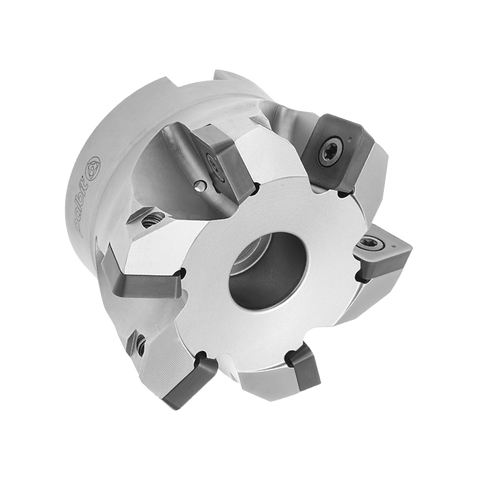

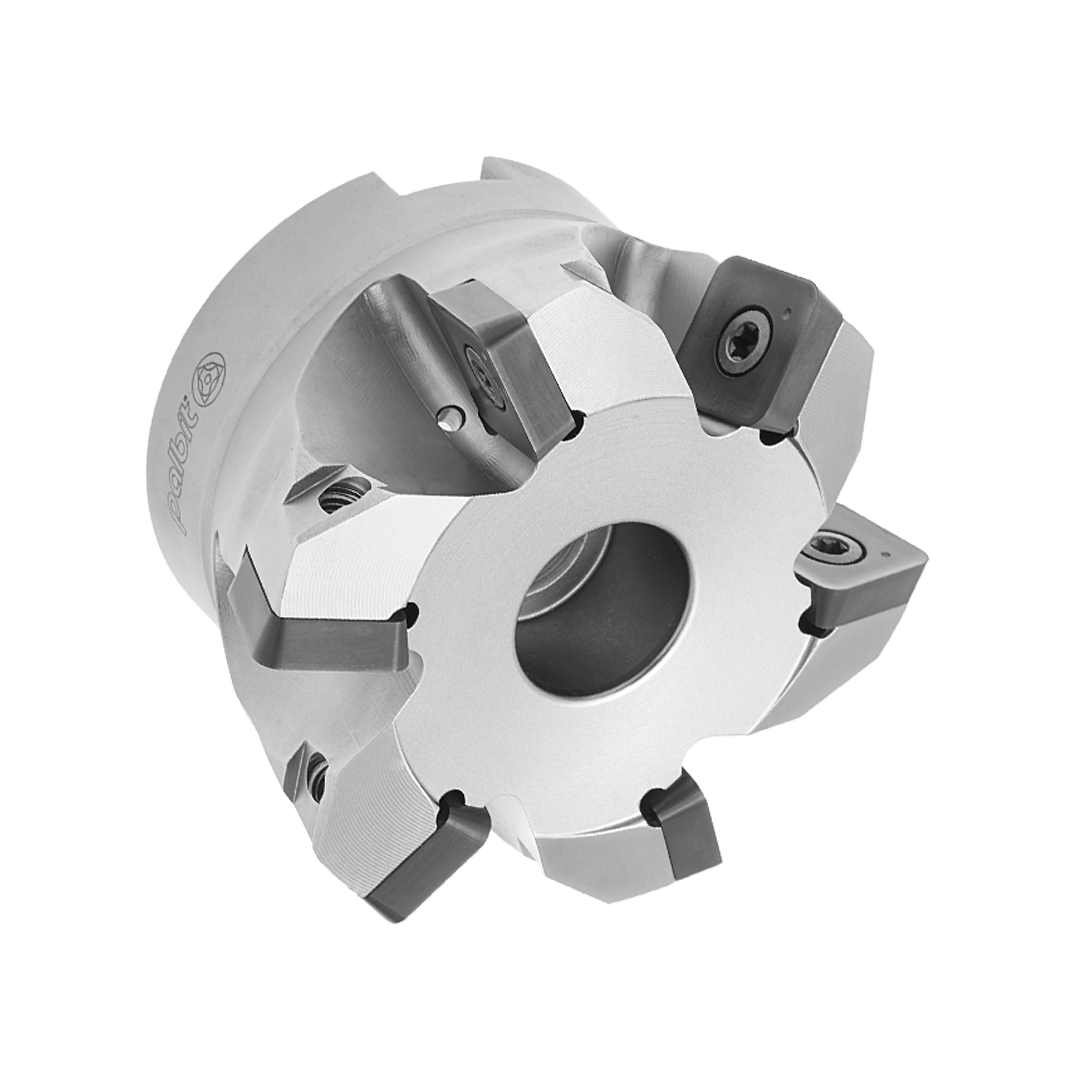

Palbit Arbor Mounting Holder - For SO1608 Inserts - 100mm Cutter Diameter - 181082100

Palbit Arbor Mounting Holder - For SO1608 Inserts - 100mm Cutter Diameter - 181082100

SKU:PAL-181082100
Engineered for heavy-duty grooving and parting, Palbit Arbor Mounting Holder for SO1608 inserts delivers exceptional rigidity and secure clamping. With a 100 mm cutter diameter, this holder is bui... Read more ↓
Specification
Insert Size & ShapeSO1608
Depth of Cut Maximum (APMX)3.5
Cutting Item Count (CICT)8
Connection Diameter (DCONMS)32
Adaptive Interface Machine DirectionArbor Mounting
Contact Surface Machine Side (DCSFMS)80
View all specifications ↓
£338.29
Prices shown ex. VAT
5 days estimated lead time — subject to availability
View Other Sizes →
Suitable Spare Parts
Free delivery over £50 ex VAT
Secure checkout
14-day returns
30+ years expertise
Klarna
Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna
Speak to our team
01732 887334
Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Engineered for heavy-duty grooving and parting, Palbit Arbor Mounting Holder for SO1608 inserts delivers exceptional rigidity and secure clamping. With a 100 mm cutter diameter, this holder is built to maintain precise cutting performance in demanding CNC machining environments.

  • Compatibility: Specifically designed for SO1608 inserts, ensuring reliable seating and consistent performance.
  • Cutter Diameter: 100 mm diameter to cover broad grooving and parting applications.
  • Rigidity and Clamping: Engineered for exceptional rigidity and secure clamping to minimize deflection and vibration.
  • Chip Evacuation: Optimized geometry and mounting arrangement support efficient chip evacuation during heavy cutting.
  • Cutting Accuracy: Delivers precise cutting accuracy for consistent part tolerances and surface finishes.
  • Tool Life: Durable design helps extend tool life in tough production environments.

Using this holder translates to steadier cuts, reduced tool chatter, and improved surface finishes in challenging CNC jobs. The secure clamping and rigid interface keep inserts aligned under heavy loads, while efficient chip evacuation helps manage heat and buildup, enabling longer intervals between tool changes and higher overall productivity.

Insert Size & Shape SO1608
Depth of Cut Maximum (APMX) 3.5
Cutting Item Count (CICT) 8
Connection Diameter (DCONMS) 32
Adaptive Interface Machine Direction Arbor Mounting
Contact Surface Machine Side (DCSFMS) 80
Tool Cutting Edge Angle (KAPR) 15
Cutting Diameter (DC) 100
Torque (TQ) 5
Functional Length (LF) 50
Axial Rake Angel (GAMP) 2
Rdial Rake Angle (GAMF) -4

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

  • Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
  • DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
  • Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
  • DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

★★★★★
Nice experience staff are very helpful and interested...
Staff are very helpful and interested in providing a good service making us the customer feel valued.
Bill
★★★★★
first place we look
honest about stock and prices are competitive.
Phil
★★★★★
Polite and helpful
Staff are very helpful and polite.Goods that were in stock were dispatched same day and back orders were quick in coming through .
Graham
★★★★★
Buying experience
Phone requests are handled quickly and without any fuss. The website is easy to use and straightforward to order from. It’s especially helpful that it shows real‑time availability, so we don’t need to call to confirm whether parts will arrive.
Jeremy

Full Range: HIFEED 06815 - Arbor Mounting

View full collection →

You are viewing PAL-181082100. Click any other SKU to view its full details.

Product SKUInsert Size and ShapeApplicationAdaptive Machine DirectionCutting Diameter (DC)Functional Length (LF)PriceStock Order
PAL-181082300 SO1610HI FeedArbor Mounting16063£499.96 5 days
PAL-181082100 ViewingSO1608HI FeedArbor Mounting10050£338.29 5 days
PAL-181082200 SO1609HI FeedArbor Mounting12563£419.50 5 days
PAL-181082000 SO1607HI FeedArbor Mounting8050£274.43 5 days
PAL-181081900 SO1606HI FeedArbor Mounting6650£239.75 5 days
PAL-181100400 SO1605HI FeedArbor Mounting6350£233.28 5 days
