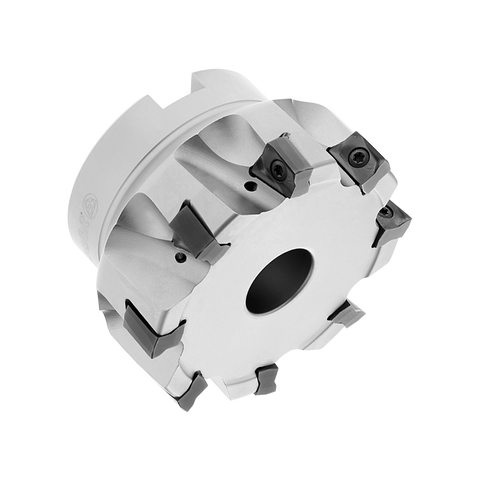

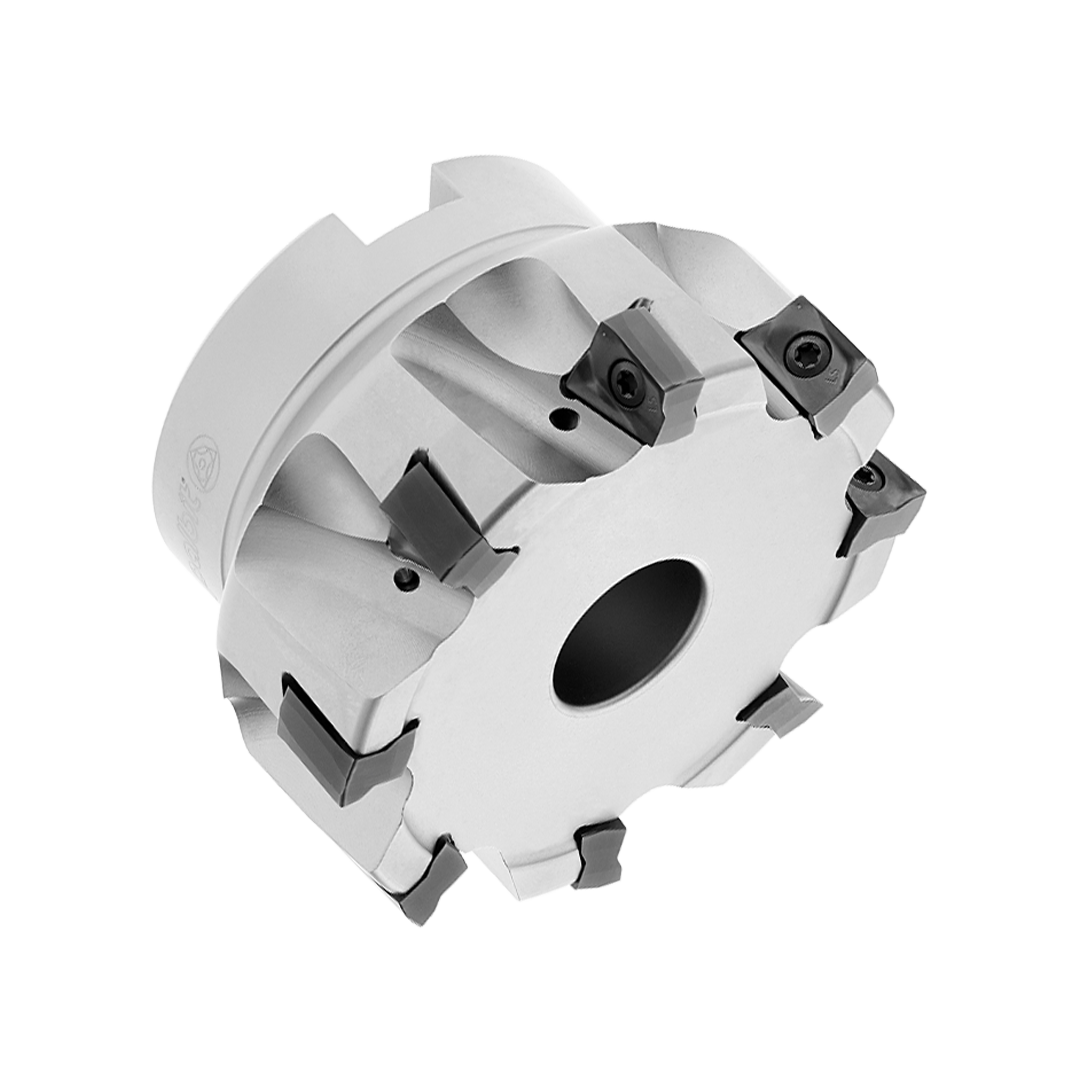

Palbit Arbor Mounting Holder - For AN1206 Inserts - 63mm Cutter Diameter - 181116500
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
Learn more about Klarna
Palbit's Arbor Mounting Holder is engineered for AN1206 inserts, delivering secure clamping and precise performance in grooving and parting applications. Its 63 mm cutter diameter provides stable engagement for demanding CNC operations.
- For AN1206 Inserts: Specifically designed to fit AN1206 inserts for reliable tool assembly.
- 63 mm Cutter Diameter: Optimized size for consistent engagement in grooving and parting cuts.
- Secure Insert Clamping: Robust clamping keeps inserts firmly in place at high speeds.
- Excellent Chip Control: Designed to manage chips effectively, reducing wear and improving surface finish.
- Strength and Precision: Heavy-duty construction for stable cutting alignment and long service life.
- High-Speed & Tight-Tolerance Ready: Ideal for fast production and precision-demanding CNC operations.
- Part Number: 181116500
In practice, this holder minimizes downtime, extends tool life, and delivers consistent performance across demanding machining cycles, helping you achieve reliable grooving and parting results with every cut.

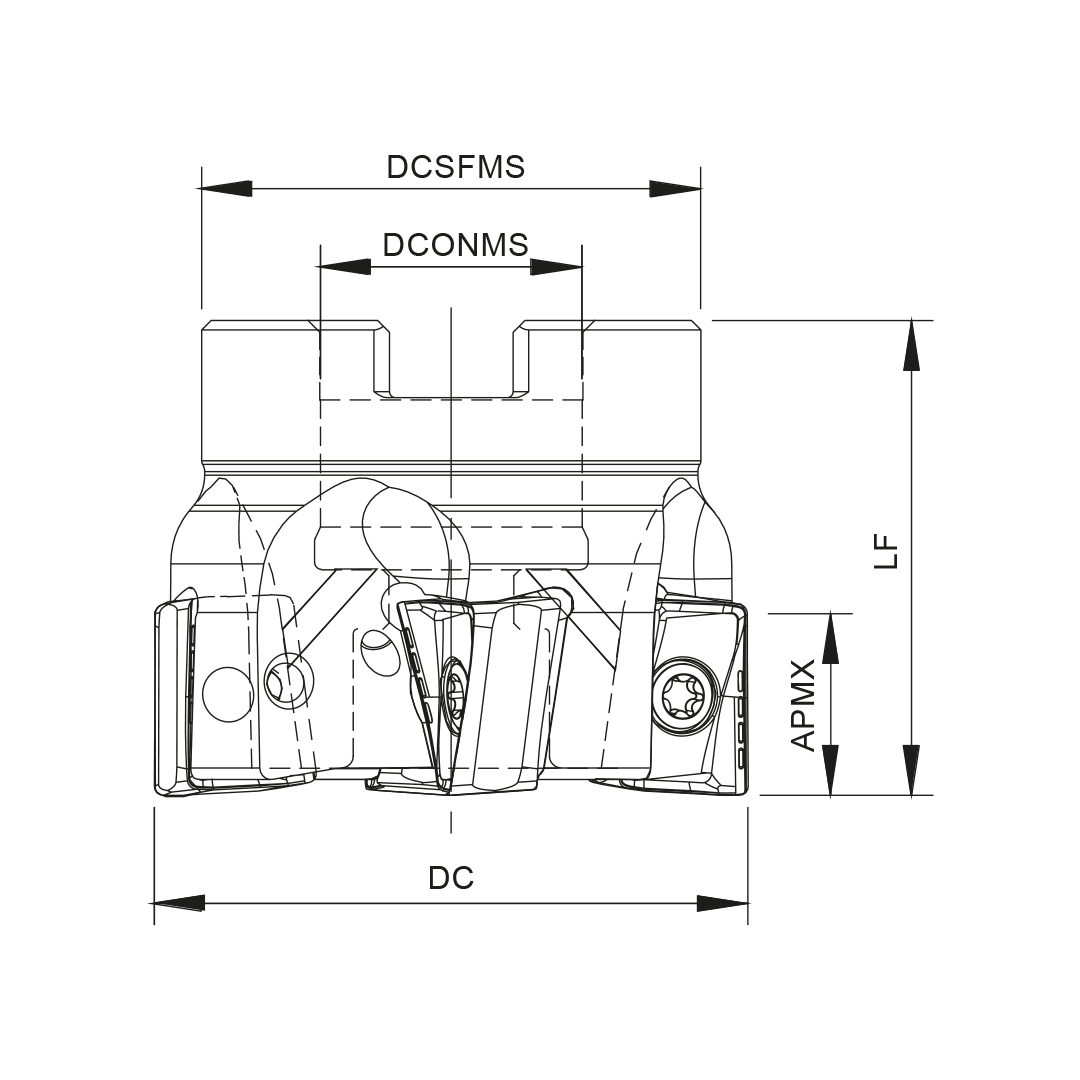

| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 5 |
| Connection Diameter (DCONMS) | 22 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 52 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 63 |
| Torque (TQ) | 2 |
| Functional Length (LF) | 40 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -18 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17590 - Arbor Mounting
View full collection →You are viewing PAL-181116500. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181116700 | AN1206 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £330.35 | 5 days | |
| PAL-181116600 | AN1206 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £278.51 | 5 days | |
| PAL-181116500 Viewing | AN1206 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £262.80 | 5 days | |
| PAL-181115900 | AN1206 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £262.80 | 5 days | |
| PAL-181114500 | AN1206 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £246.76 | 5 days | |
| PAL-181116400 | AN1206 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £230.88 | 5 days | |
| PAL-181117000 | AN1206 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £676.03 | 5 days | |
| PAL-181116900 | AN1206 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £413.59 | 5 days |
