Palbit Arbor Mounting Holder - For AN1206 Inserts - 100mm Cutter Diameter - 181116900
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 12 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
Learn more about Klarna

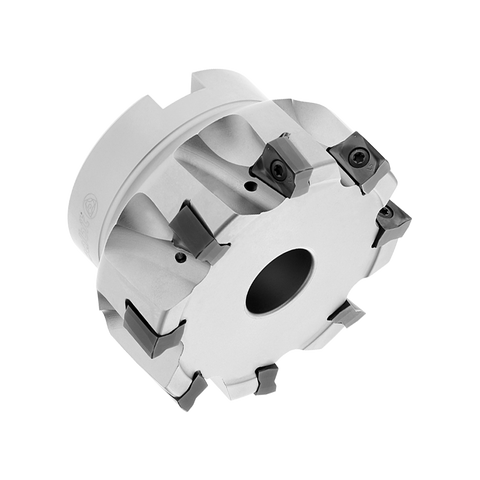

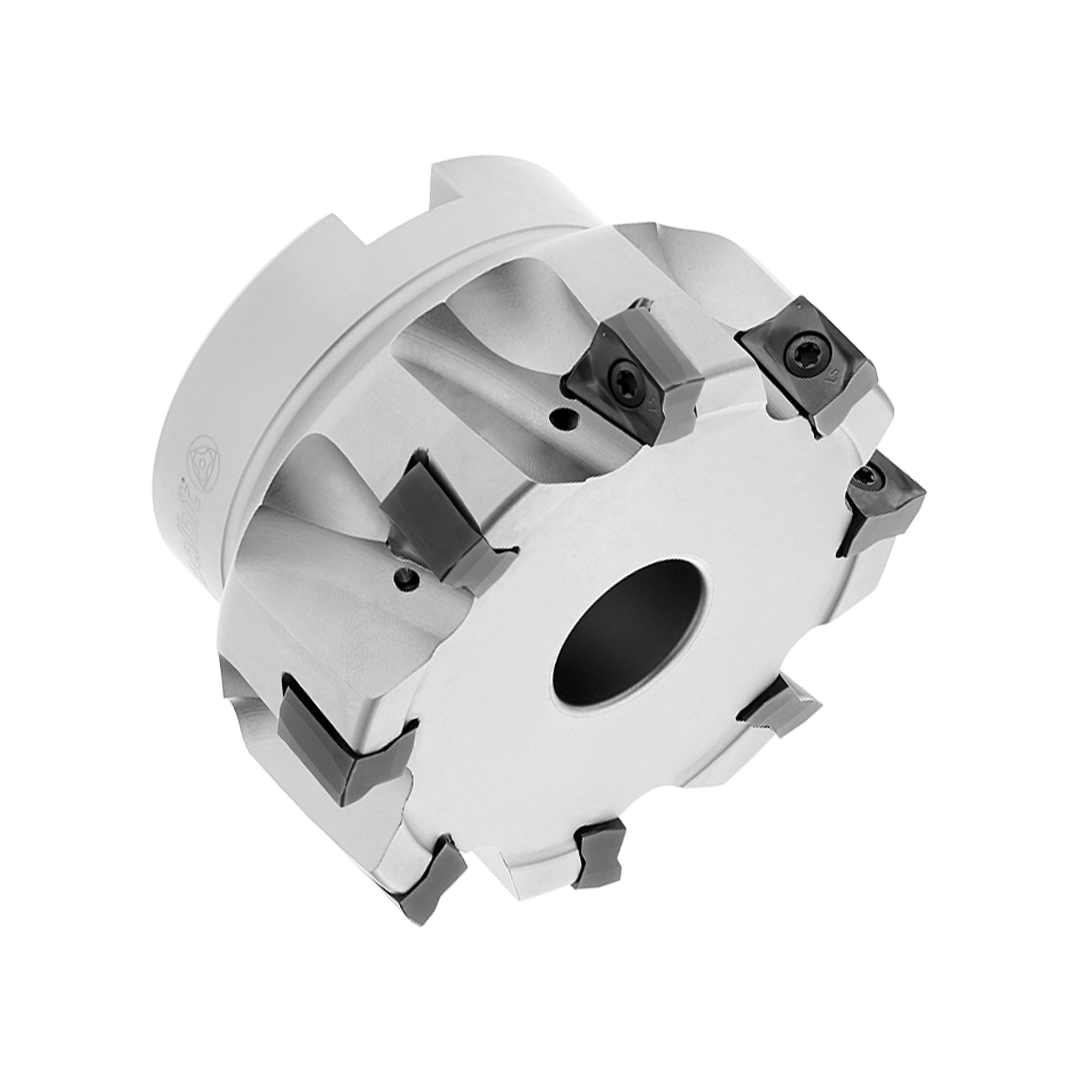

Palbit Arbor Mounting Holder (Model 181116900) is a precision accessory designed for CNC grooving and parting, compatible with AN1206 inserts. With a 100 mm cutter diameter, it’s built for strength, accuracy, and reliable performance in demanding machining environments.
- Compatibility: Specifically designed for AN1206 inserts
- Diameter: 100 mm cutter diameter
- Clamping: Secure insert clamping for consistent seating
- Chip Control: Excellent chip control to maintain tool life and part quality
- Performance: Reliable performance in demanding CNC operations
- Production Application: Ideal for high-speed production and tight-tolerance applications
Using this holder delivers secure insert clamping and precise chip control, helping reduce downtime and extend tool life in every cut. Its robust design supports repeatable results, enabling smoother workflows and improved productivity in challenging machining tasks.
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 12 |
| Connection Diameter (DCONMS) | 32 |
| Adaptive Interface Machine Direction | Arbor Mounting |
| Contact Surface Machine Side (DCSFMS) | 80 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 100 |
| Torque (TQ) | 2 |
| Functional Length (LF) | 50 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -18 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17590 - Arbor Mounting
View full collection →You are viewing PAL-181116900. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181116700 | AN1206 | Shouldering Cutters | Arbor Mounting | 80 | 50 | £330.35 | 5 days | |
| PAL-181116600 | AN1206 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £278.51 | 5 days | |
| PAL-181116500 | AN1206 | Shouldering Cutters | Arbor Mounting | 63 | 40 | £262.80 | 5 days | |
| PAL-181115900 | AN1206 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £262.80 | 5 days | |
| PAL-181114500 | AN1206 | Shouldering Cutters | Arbor Mounting | 50 | 40 | £246.76 | 5 days | |
| PAL-181116400 | AN1206 | Shouldering Cutters | Arbor Mounting | 40 | 40 | £230.88 | 5 days | |
| PAL-181117000 | AN1206 | Shouldering Cutters | Arbor Mounting | 125 | 63 | £676.03 | 5 days | |
| PAL-181116900 Viewing | AN1206 | Shouldering Cutters | Arbor Mounting | 100 | 50 | £413.59 | 5 days |
