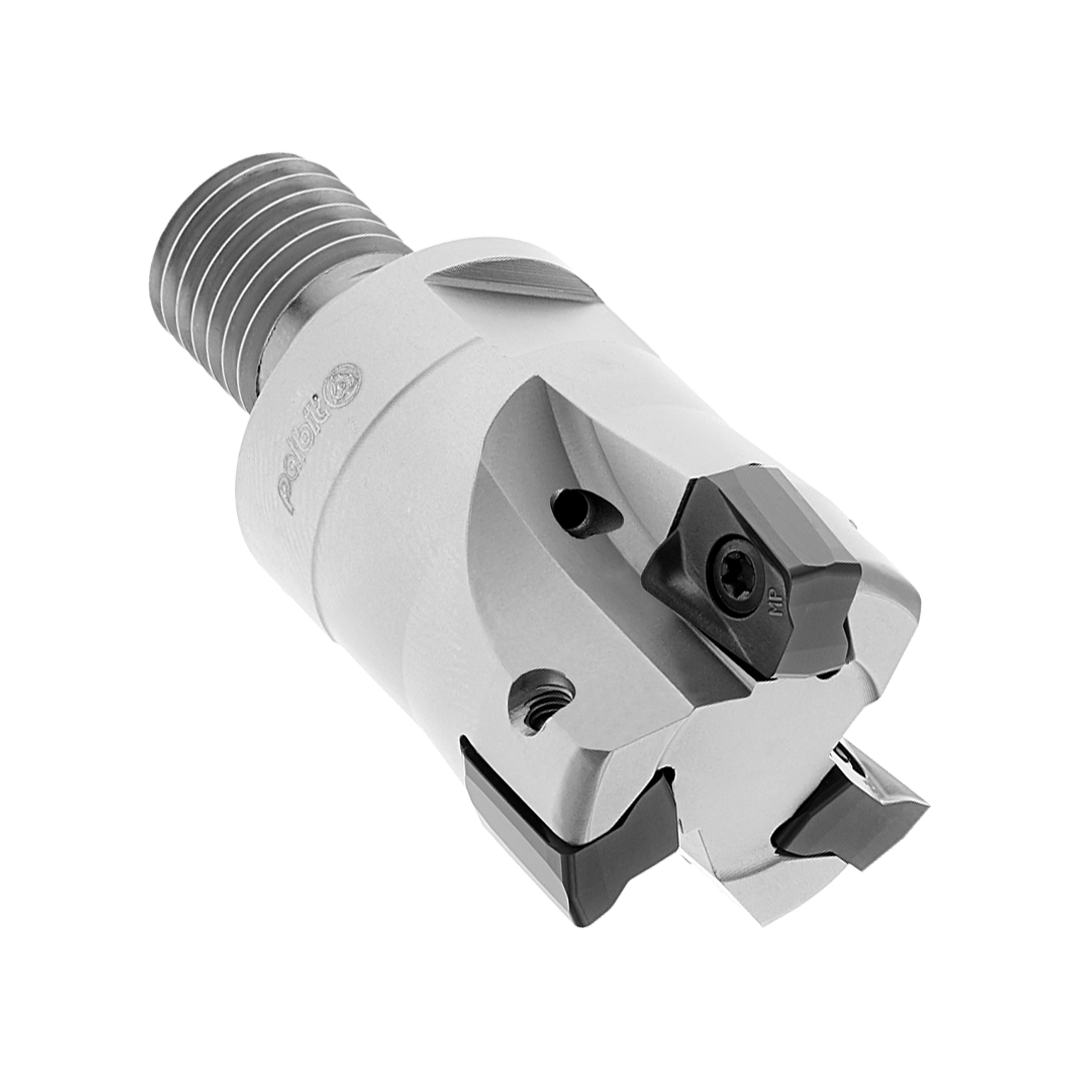

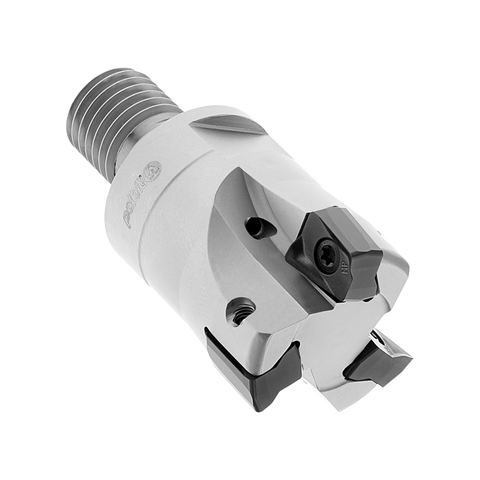

Palbit Threaded Coupling Holder - For AN1206 Inserts - 32mm Cutter Diameter - 181117200
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
Palbit Threaded Coupling Holder for AN1206 inserts delivers secure insert retention and exceptional rigidity for precision internal threading. Built for demanding CNC operations, it ensures accurate thread profiles and reliable, repeatable results.
- Inserts compatibility: Precisely designed to fit AN1206 inserts for secure, repeatable alignment.
- Threaded coupling design: Robust engagement between holder and insert to maintain accuracy during cutting.
- 32mm cutter diameter: Optimized to balance cutting capacity with rigidity for stable threading performance.
- High-rigidity construction: Precision-machined body minimizes deflection, improving thread quality and surface finish.
- Chip evacuation optimization: Accessible geometry aids efficient chip flow, reducing buildup and downtime.
With this holder, you gain consistent thread profiles, extended tool life, and dependable performance in high-precision applications. The rigid design dampens vibration for smoother cuts, while improved chip evacuation supports longer, uninterrupted production runs—making it a trusted choice for engineers and machinists performing demanding CNC threading tasks.
| Insert Size & Shape | AN1206 |
| Depth of Cut Maximum (APMX) | 11 |
| Cutting Item Count (CICT) | 3 |
| Adaptive Interface Machine Direction | Threaded Coupling |
| Contact Surface Machine Side (DCSFMS) | 29 |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 32 |
| Torque (TQ) | 2 |
| Functional Length (LF) | 43 |
| Axial Rake Angel (GAMP) | -6 |
| Rdial Rake Angle (GAMF) | -21 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 17590 - Threaded Coupling
View full collection →You are viewing PAL-181117200. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181117200 Viewing | AN1206 | Shouldering Cutters | Threaded Coupling | 32 | 43 | £167.40 | 5 days | |
| PAL-181117100 | AN1206 | Shouldering Cutters | Threaded Coupling | 25 | 35 | £155.21 | 5 days |
