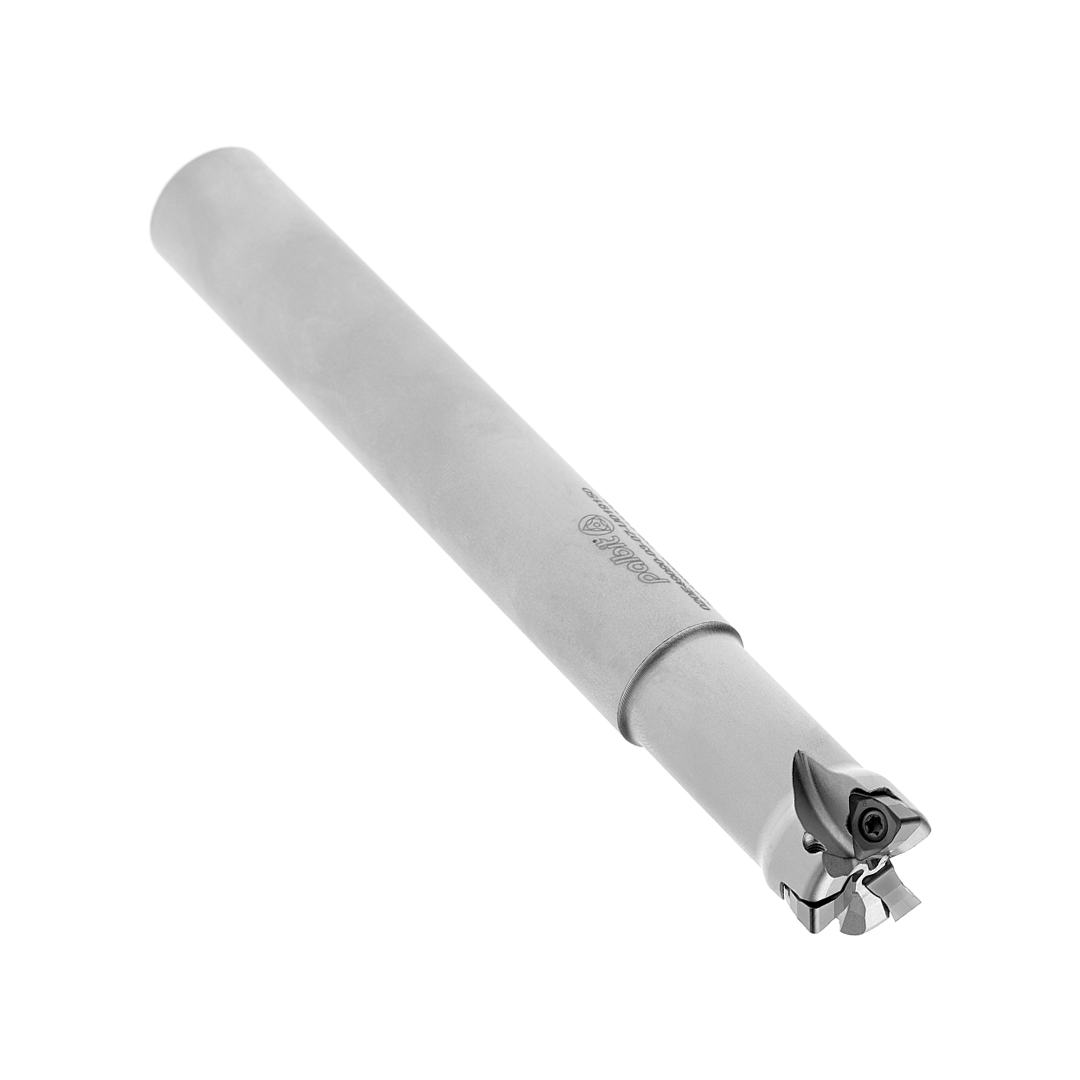

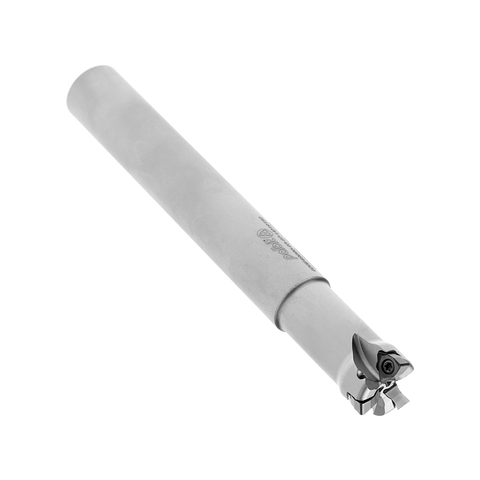

Palbit Cylindrical Shank Holder - For WN04T3 Inserts - 20mm Cutter Diameter - 181136200
| Insert Size & Shape | WN04T3 |
| Depth of Cut Maximum (APMX) | 3 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 19 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
Learn more about Klarna
The Palbit Cylindrical Shank Holder is a precision mounting solution designed for WN04T3 inserts, optimized for micro-grooving and precision parting on CNC machines. Built to deliver exceptional rigidity and secure insert retention in compact tooling, it helps you achieve tight tolerances and superior surface finishes.
- For WN04T3 inserts: precise seating and reliable performance with compatible tooling.
- 20 mm cutter diameter: ideal for fine-detail applications and small-part machining.
- Cylindrical shank design: promotes uniform contact and improved alignment for reduced runout.
- High rigidity and insert retention: minimizes vibration and enhances tool life in demanding CNC cycles.
- Compact, machined construction: suited for tight tooling envelopes without compromising strength.
With this holder, you gain consistent accuracy and surface finish even in challenging small-part components. The rigid cylindrical shank minimizes vibration and eccentric load, helping to extend tool life and reduce part rejection. Thanks to precise seating for WN04T3 inserts, you can confidently run micro-grooving or precision parting operations with tight tolerances and repeatable results.
| Insert Size & Shape | WN04T3 |
| Depth of Cut Maximum (APMX) | 3 |
| Cutting Item Count (CICT) | 3 |
| Connection Diameter (DCONMS) | 19 |
| Adaptive Interface Machine Direction | Cylindrical Shank |
| Tool Cutting Edge Angle (KAPR) | 90 |
| Cutting Diameter (DC) | 20 |
| Torque (TQ) | 1.2 |
| Functional Length (LF) | 150 |
| Usable Length (LU) | 40 |
| Axial Rake Angel (GAMP) | 8 |
| Rdial Rake Angle (GAMF) | -15 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: PLUS 49090 - Cylindrical Shank
View full collection →You are viewing PAL-181136200. Click any other SKU to view its full details.
| Product SKU | Insert Size and Shape | Application | Adaptive Machine Direction | Cutting Diameter (DC) | Functional Length (LF) | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| PAL-181136300 | WN04T3 | Shouldering Cutters | Cylindrical Shank | 25 | 150 | £147.65 | 5 days | |
| PAL-181136200 Viewing | WN04T3 | Shouldering Cutters | Cylindrical Shank | 20 | 150 | £135.46 | 5 days | |
| PAL-181136100 | WN04T3 | Shouldering Cutters | Cylindrical Shank | 16 | 150 | £119.58 | 5 days |
