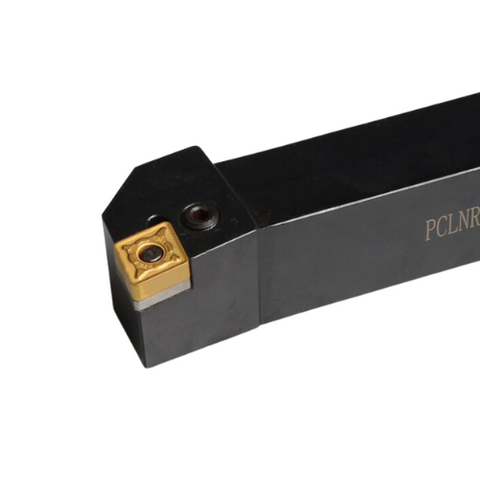

Vortex Turning Tool Holder Pin Lock 95 DEG - For CNMG1204 Inserts - PCLNR1616H12
| ISO Code | PCLNR 1616 H12 |
| Shank Size | 16x16 |
| Insert | CN** 1204-- |
| Locking System | Pin Lock |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Turning Tool Holder with a 95-degree orientation is designed for CNMG1204 inserts, delivering stable, precise performance for demanding turning tasks. Built for reliability, this holder provides repeatable insert seating and robust stability across long production runs.
- Insert compatibility: specifically engineered for CNMG1204 inserts in a PCLNR1616H12 pocket to ensure a secure, accurate fit.
- 95° turning geometry: optimized orientation that improves reach, chip control, and surface finish on finished parts.
- Pin Lock mechanism: secure seating that resists insert movement under cutting loads, reducing runout and chatter.
- Rigid construction: designed to endure the stresses of turning operations while maintaining tight tolerances.
- Easy insert changes: streamlined process for swapping inserts with dependable clamping and repeatable accuracy.
- Accessory ecosystem: designed to work with essential setup components for a complete turning solution, including the following compatible parts:
Benefits: By ensuring precise insert positioning and minimizing movement during high-speed turning, this tool holder helps you achieve consistent tolerances, smoother tool life, and a reliable surface finish across different materials. The 95-degree orientation expands your turning opportunities, enabling efficient tooling in applications ranging from roughing to fine finishing. Its robust Pin Lock system and durable housing work together to reduce setup time and downtime, so you can maintain steady productivity on the shop floor.
Part Numbers
- Protool Part Number
- PRO1600024
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 95 DEG - For CNMG1204 Inserts (PCLNR)
View full collection →You are viewing PRO1600024. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600024 Viewing | PCLNR 1616 H12 | 16x16 | CN** 1204-- | Pin Lock | Right | 100 | £23.56 | 2 weeks | |
| PRO1600025 | PCLNR 2020 K12 | 20x20 | CN** 1204-- | Pin Lock | Right | 125 | £24.67 | In Stock | |
| PRO1600026 | PCLNR 2525 M12 | 25x25 | CN** 1204-- | Pin Lock | Right | 150 | £25.92 | 2 weeks | |
| PRO1600027 | PCLNR 3232 P12 | 32x32 | CN** 1204-- | Pin Lock | Right | 170 | £30.85 | In Stock | |
| PRO1600521 | PCLNL1616H12 | 16x16 | CN** 1204-- | Pin Lock | Left | 100 | £59.58 | 2 weeks | |
| PRO1600522 | PCLNL2020K12 | 20x20 | CN** 1204-- | Pin Lock | Left | 125 | £30.59 | 2 weeks | |
| PRO1600523 | PCLNL2525M12 | 25x25 | CN** 1204-- | Pin Lock | Left | 150 | £30.59 | 2 weeks |
