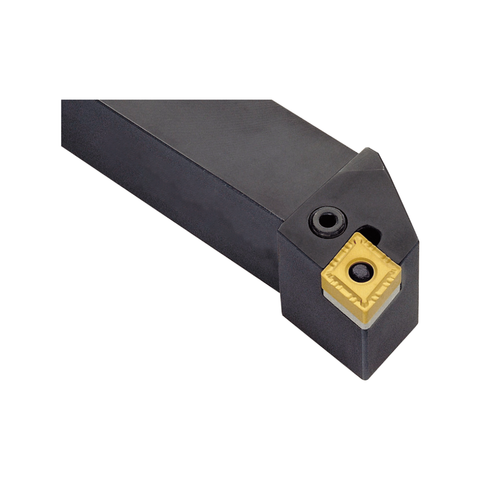

PCLNL1616-H12 Standard Turning Tool Holder, 16 x 16mm Shank, 100mm Long, Left Hand, 95 Degree Approach, Lever Lock, for CNMG12 inserts - PCLNR/L Series (Vortex)
| ISO Code | PCLNL1616H12 |
| Shank Size | 16x16 |
| Insert | CN** 1204-- |
| Locking System | Pin Lock |
| Hand | Left |
| Overall Length | 100 |
Learn more about Klarna
The PCLNL1616-H12 is a standard turning tool holder built around a 16 x 16 mm solid steel shank. Designed for CNC lathes and general turning with CNMG12 inserts, it delivers dependable rigidity and straightforward maintenance through a lever-lock clamp and a 95-degree approach.
- Shank size: 16 x 16 mm solid steel shank with 100 mm length for stable tool support in turning operations.
- Left-hand orientation: Left-hand configuration suited for common machining setups where tool travel approaches from the left.
- Clamp system: Lever-lock clamping provides quick, tool-less insert changes and repeatable seating for consistent chip load.
- Approach angle: 95-degree approach enables efficient cutting geometry and good clearance for long inserts.
- Compatibility: Specifically designed for CNMG12 inserts within the PCLNR/L (Vortex) series, offering reliable seating and easy replacement.
- Durability: High-quality solid steel construction delivers rigidity and long service life in everyday turning tasks.
When precision and uptime matter, this tool holder keeps your turning operations consistent. The lever-lock system reduces insert-change time, minimizes tool chatter, and ensures repeatable positive seating of CNMG12 inserts for accurate diameters and smooth finishes. With a 100 mm reach and left-hand orientation, it fits a wide range of turning setups, from roughing to finishing, while maintaining strong rigidity from start to finish.
| ISO Code | PCLNL1616H12 |
| Shank Size | 16x16 |
| Insert | CN** 1204-- |
| Locking System | Pin Lock |
| Hand | Left |
| Overall Length | 100 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 95 DEG - For CNMG1204 Inserts (PCLNR)
View full collection →You are viewing PRO1600521. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600024 | PCLNR 1616 H12 | 16x16 | CN** 1204-- | Pin Lock | Right | 100 | £23.56 | 4-6 weeks | |
| PRO1600025 | PCLNR 2020 K12 | 20x20 | CN** 1204-- | Pin Lock | Right | 125 | £24.67 | In Stock | |
| PRO1600026 | PCLNR 2525 M12 | 25x25 | CN** 1204-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600027 | PCLNR 3232 P12 | 32x32 | CN** 1204-- | Pin Lock | Right | 170 | £30.85 | In Stock | |
| PRO1600521 Viewing | PCLNL1616H12 | 16x16 | CN** 1204-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600522 | PCLNL2020K12 | 20x20 | CN** 1204-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600523 | PCLNL2525M12 | 25x25 | CN** 1204-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
