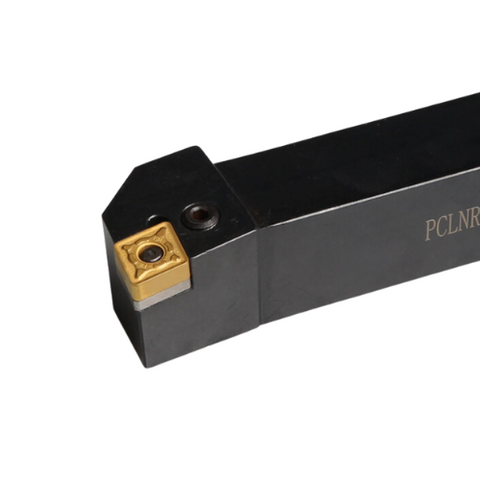

Vortex Turning Tool Holder Pin Lock 95 DEG - For CNMG1204 Inserts - PCLNR2525M12
| ISO Code | PCLNR 2525 M12 |
| Shank Size | 25x25 |
| Insert | CN** 1204-- |
| Locking System | Pin Lock |
Learn more about Klarna
Compatible inserts
The ones our customers buy most.
Description
The Vortex Turning Tool Holder with Pin Lock delivers precise, dependable performance for CNMG1204 inserts in turning applications. Designed for machinists who demand repeatable accuracy, it combines secure insert retention with a robust, high- rigidity body for steady cuts and reliable results.
- Angle: 95-degree orientation optimized for efficient turning, improved chip control, and deeper engagement in CNMG1204 pockets.
- Pin Lock retention: precision pin mechanism immobilizes the insert for minimized movement and consistent seating under load.
- Insert compatibility: specifically engineered for CNMG1204 inserts in the PCLNR2525M12 family to ensure reliable seating and alignment.
- Rigid tool body: durable construction with machined seating surfaces that maintain alignment over long production runs.
- Easy insert changes: designed for quick, secure index changes without compromising accuracy or repeatability.
- Maintenance-friendly: compatible with common clamping accessories to streamline setup and reduce downtime.
Accessories that support fast, accurate setup and dependable operation are readily available to pair with this holder, including the Clamping Screw, Shim, Wrench, Lever, and Shim Pin.
Benefits: The Pin Lock system provides exceptional insert stability, reducing runout and vibration for a smoother cutting process. The 95° geometry expands reach and versatility in standard CNMG1204 pockets while preserving precise seating, helping you achieve consistent finishes and longer insert life across stainless steels, alloy steels, and other common turning materials. This tool holder is ideal for shops that value repeatability, reduced downtime, and dependable performance in high-precision turning operations.
Part Numbers
- Protool Part Number
- PRO1600026
- Brand
- Vortex
- Category
- ISO Lathe Tool
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Vortex Turning Tool Holders - Pin Lock 95 DEG - For CNMG1204 Inserts (PCLNR)
View full collection →You are viewing PRO1600026. Click any other SKU to view its full details.
| Product SKU | ISO Code | Shank Size | Insert | Locking System | Hand | Overall Length | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| PRO1600024 | PCLNR 1616 H12 | 16x16 | CN** 1204-- | Pin Lock | Right | 100 | £23.56 | 4-6 weeks | |
| PRO1600025 | PCLNR 2020 K12 | 20x20 | CN** 1204-- | Pin Lock | Right | 125 | £24.67 | In Stock | |
| PRO1600026 Viewing | PCLNR 2525 M12 | 25x25 | CN** 1204-- | Pin Lock | Right | 150 | £25.92 | 4-6 weeks | |
| PRO1600027 | PCLNR 3232 P12 | 32x32 | CN** 1204-- | Pin Lock | Right | 170 | £30.85 | In Stock | |
| PRO1600521 | PCLNL1616H12 | 16x16 | CN** 1204-- | Pin Lock | Left | 100 | £59.58 | 4-6 weeks | |
| PRO1600522 | PCLNL2020K12 | 20x20 | CN** 1204-- | Pin Lock | Left | 125 | £30.59 | 4-6 weeks | |
| PRO1600523 | PCLNL2525M12 | 25x25 | CN** 1204-- | Pin Lock | Left | 150 | £30.59 | 4-6 weeks |
