Y.T. Saw Blade Insert Left Hand For Aluminium - 1.6mm Width 1.4mm Blade Thickness (LNGT1616NLS-EE F20)

Name: Y.T. Saw Blade Insert Left Hand For Aluminium - 1.6mm Width 1.4mm Blade Thickness (LNGT1616NLS-EE F20)
Brand: Y.T.
SKU: PRO2201074
Price: 12.48 GBP
Availability: InStock

SKU:PRO2201074

The LNGT1616NLS-EE F20 left-hand carbide insert is engineered for aluminium cutting on YIH TROUN multifunctional slitting saws, delivering reliable performance across aluminium machining tasks. ... Read more ↓

Material Compatibility

Specifications at a glance

Width	1.6
Material	Aluminium
Type	Left Hand
Blade Thickness	1.4

View all specifications ↓

Download Cutting Data

£12.48

Prices shown ex. VAT

5 days estimated lead time — subject to availability

View Other Sizes →

T-Slot Cutters Slitting Saws

Free delivery over £50 ex VAT

Secure checkout

14-day returns

30+ years expertise

Pay in 3 interest-free instalments. No extra cost if paid on time. 18+ only.
Learn more about Klarna

Speak to our team

01732 887334

Mon – Thurs 8:30 – 17:30 · Fri 8:30 – 16:30

Y.T. Indexable T-Slot Cutter (3T) - Metric - 80 mm Saw Diameter for LNGT Inserts - Insert Width 1.6mm (3T2580-3.0)
£510.67Available to order
Y.T. Indexable T-Slot Cutter (3T) - Metric - 60 mm Saw Diameter for LNGT Inserts - Insert Width 1.6mm (3T1635-5.0)
£238.05Available to order
Y.T. Indexable T-Slot Cutter (3T) - Metric - 50 mm Saw Diameter for LNGT Inserts - Insert Width 1.6mm (3T2580-5.0)
£589.88Available to order
Y.T. Indexable T-Slot Cutter (3T) - Metric - 40 mm Saw Diameter for LNGT Inserts - Insert Width 1.6mm (3T1635-2.0)
£238.05Available to order

View all 5 →

Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 160mm Diameter 1.6mm Insert Thickness 50.5mm Cutting Depth 16 Teeth (SBL160-1.6-32)
£849.66Available to order
Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 125mm Diameter 1.6mm Insert Thickness 33mm Cutting Depth 12 Teeth (SBL125-1.6-32)
£721.50Available to order
Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 100mm Diameter 1.6mm Insert Thickness 27mm Cutting Depth 10 Teeth (SBL100-1.6-22)
£652.24Available to order
Y.T. Indexable Saw Milling Cutter For LNGT Inserts - 80mm Diameter 1.6mm Insert Thickness 17mm Cutting Depth 8 Teeth (SBL080-1.6-22)
£617.89Available to order

View all 19 →

Description

The LNGT1616NLS-EE F20 left-hand carbide insert is engineered for aluminium cutting on YIH TROUN multifunctional slitting saws, delivering reliable performance across aluminium machining tasks.

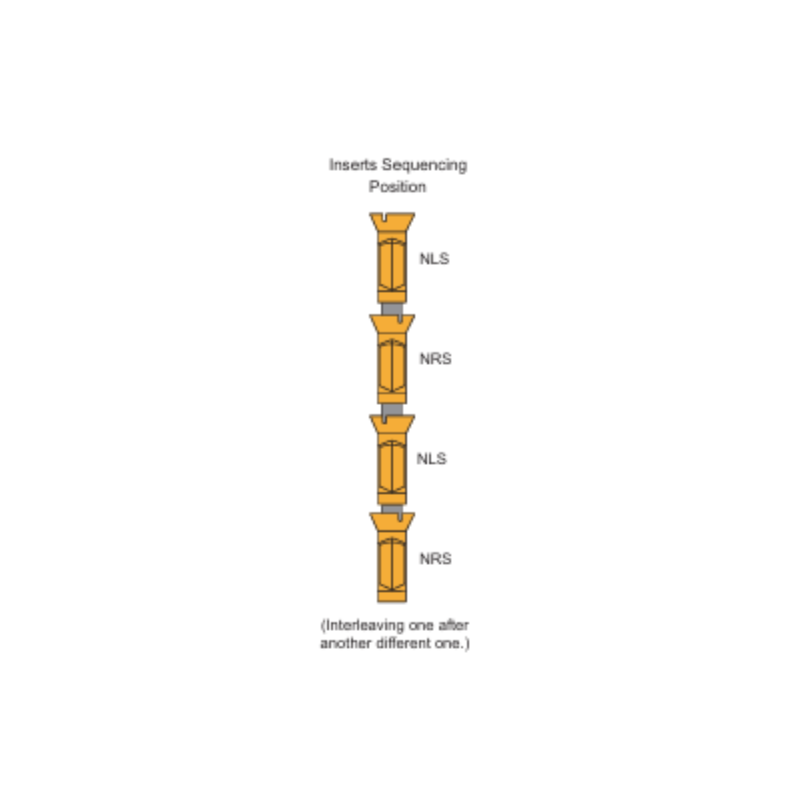

Left-hand orientation: Designed specifically for the left-hand cutting geometry on compatible slitting saw setups.
Width: 1.6 mm insert width for precise blade engagement.
Blade thickness: 1.4 mm thickness to fit the LNGT1616NLS-EE F20 blade assembly.
Grade versatility: Available in multiple grades to optimize performance for aluminum and other materials as needed.
Chip breaker groove: Unique groove design enhances chip evacuation and helps stabilize deep groove machining.
Interchangeable design: Interchanges to match the saw blade’s cutting requirements for efficient operations.
Brand/model compatibility: Specifically suited for YIH TROUN slitting saw systems in aluminium applications.

Optimized for aluminium, these inserts promote longer tool life and improved machining efficiency. The chip breaker groove promotes effective chip evacuation, reducing vibration during high-speed cuts and deep grooves, while the left-hand geometry and precise dimensions enable clean, consistent finishes with less finishing work and faster cycle times.

Part Numbers

Protool Part Number: PRO2201074
Brand: Y.T.
Category: Saw Blade Insert

Cutting Data & Technical Datasheet

Delivery

Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.

Returns

14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.

Technical Support

Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.

Trade Accounts

Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.

What time are Protool open?

We are open Monday to Friday between 8:30am and 5pm.

Do you offer Free Next Day delivery?

Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.

We also offer the following:

Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.

For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.

*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.

Ask our technical team about this tool

Full Range: Y.T. Saw Blade Insert's (LNGT)

View full collection →

You are viewing PRO2201074. Click any other SKU to view its full details.

Product SKU	Width	Material	Type	Blade Thickness	Radius	Price	Stock

PRO2201190	1.5	Cast Iron	Full Radius	1.2	0.75	£14.10	5 days
PRO2201192	2.5	Cast Iron	Full Radius	2.25	1.25	£13.05	5 days
PRO2201191	2	Cast Iron	Full Radius	1.75	1	£13.05	5 days
PRO2201193	3	Cast Iron	Full Radius	2.7	1.5	£13.54	5 days
PRO2201186	1.5	Steels Stainless Super Alloys	Full Radius	1.2	0.75	£16.38	5 days
PRO2201188	2.5	Steels Stainless Super Alloys	Full Radius	2.25	1.25	£15.23	5 days
PRO2201187	2	Steels Stainless Super Alloys	Full Radius	1.75	1	£15.23	5 days
PRO2201189	3	Steels Stainless Super Alloys	Full Radius	2.7	1.5	£15.78	5 days
PRO2201072	1.4	Aluminium	Left Hand	1.2	0	£12.48	5 days
PRO2201073	1.5	Aluminium	Left Hand	1.2	0	£12.48	5 days
PRO2201074 Viewing	1.6	Aluminium	Left Hand	1.4	0	£12.48	5 days
PRO2201075	1.8	Aluminium	Left Hand	1.6	0	£12.48	5 days
PRO2201097	2.2	Aluminium	Left Hand	1.75	0	£11.54	5 days
PRO2201098	2.5	Aluminium	Left Hand	1.75	0	£11.54	5 days
PRO2201099	2.5	Aluminium	Left Hand	2.25	0	£11.54	5 days
PRO2201100	2.7	Aluminium	Left Hand	2.25	0	£11.54	5 days
PRO2201096	2	Aluminium	Left Hand	1.75	0	£11.54	5 days
PRO2201103	3.2	Aluminium	Left Hand	2.7	0	£12.01	5 days
PRO2201104	3.5	Aluminium	Left Hand	2.7	0	£12.01	5 days
PRO2201101	3	Aluminium	Left Hand	2.25	0	£12.01	5 days
PRO2201102	3	Aluminium	Left Hand	2.7	0	£12.01	5 days
PRO2201106	4.2	Aluminium	Left Hand	3.7	0	£12.48	5 days
PRO2201107	4.5	Aluminium	Left Hand	3.7	0	£12.48	5 days
PRO2201105	4	Aluminium	Left Hand	3.7	0	£12.48	5 days
PRO2201109	5.2	Aluminium	Left Hand	4.5	0	£14.45	5 days
PRO2201110	5.5	Aluminium	Left Hand	4.5	0	£14.45	5 days
PRO2201108	5	Aluminium	Left Hand	4.5	0	£14.45	5 days
PRO2201088	1.4	Cast Iron	Left Hand	1.2	0.03	£12.48	5 days
PRO2201089	1.5	Cast Iron	Left Hand	1.2	0.03	£12.48	5 days
PRO2201090	1.6	Cast Iron	Left Hand	1.4	0.03	£12.48	5 days
PRO2201091	1.8	Cast Iron	Left Hand	1.6	0.03	£12.48	5 days
PRO2201157	2.2	Cast Iron	Left Hand	1.75	0	£9.92	5 days
PRO2201158	2.5	Cast Iron	Left Hand	1.75	0	£9.92	5 days
PRO2201159	2.5	Cast Iron	Left Hand	2.25	0	£9.92	5 days
PRO2201160	2.7	Cast Iron	Left Hand	2.25	0	£9.92	5 days
PRO2201156	2	Cast Iron	Left Hand	1.75	0	£9.92	5 days
PRO2201163	3.2	Cast Iron	Left Hand	2.7	0	£10.32	5 days
PRO2201164	3.5	Cast Iron	Left Hand	2.7	0	£10.32	5 days
PRO2201161	3	Cast Iron	Left Hand	2.25	0	£10.32	5 days
PRO2201162	3	Cast Iron	Left Hand	2.7	0	£10.32	5 days
PRO2201166	4.2	Cast Iron	Left Hand	3.7	0	£10.70	5 days
PRO2201167	4.5	Cast Iron	Left Hand	3.7	0	£10.70	5 days
PRO2201165	4	Cast Iron	Left Hand	3.7	0	£10.70	5 days
PRO2201169	5.2	Cast Iron	Left Hand	4.5	0	£12.34	5 days
PRO2201170	5.5	Cast Iron	Left Hand	4.5	0	£12.34	5 days
PRO2201168	5	Cast Iron	Left Hand	4.5	0	£12.34	5 days
PRO2201080	1.4	Steels Stainless Super Alloys	Left Hand	1.2	0.03	£12.48	5 days
PRO2201081	1.5	Steels Stainless Super Alloys	Left Hand	1.2	0.03	£12.48	5 days
PRO2201082	1.6	Steels Stainless Super Alloys	Left Hand	1.4	0.03	£12.48	5 days
PRO2201083	1.8	Steels Stainless Super Alloys	Left Hand	1.6	0.03	£12.48	5 days
PRO2201127	2.2	Steels Stainless Super Alloys	Left Hand	1.75	0	£11.57	5 days
PRO2201128	2.5	Steels Stainless Super Alloys	Left Hand	1.75	0	£11.57	5 days
PRO2201129	2.5	Steels Stainless Super Alloys	Left Hand	2.25	0	£11.57	5 days
PRO2201130	2.7	Steels Stainless Super Alloys	Left Hand	2.25	0	£11.57	5 days
PRO2201126	2	Steels Stainless Super Alloys	Left Hand	1.75	0	£11.57	5 days
PRO2201133	3.2	Steels Stainless Super Alloys	Left Hand	2.7	0	£12.03	5 days
PRO2201134	3.5	Steels Stainless Super Alloys	Left Hand	2.7	0	£12.03	5 days
PRO2201131	3	Steels Stainless Super Alloys	Left Hand	2.25	0	£12.03	5 days
PRO2201132	3	Steels Stainless Super Alloys	Left Hand	2.7	0	£12.03	5 days
PRO2201136	4.2	Steels Stainless Super Alloys	Left Hand	3.7	0	£12.48	5 days
PRO2201137	4.5	Steels Stainless Super Alloys	Left Hand	3.7	0	£12.48	5 days
PRO2201135	4	Steels Stainless Super Alloys	Left Hand	3.7	0	£12.48	5 days
PRO2201139	5.2	Steels Stainless Super Alloys	Left Hand	4.5	0	£14.43	5 days
PRO2201140	5.5	Steels Stainless Super Alloys	Left Hand	4.5	0	£14.43	5 days
PRO2201138	5	Steels Stainless Super Alloys	Left Hand	4.5	0	£14.43	5 days
PRO2201295	5	Aluminium	Neutral	4.5	0	£14.45	5 days
PRO2201076	1.4	Aluminium	RIght Hand	1.2	0	£12.48	5 days
PRO2201077	1.5	Aluminium	RIght Hand	1.2	0	£12.48	5 days
PRO2201078	1.6	Aluminium	RIght Hand	1.4	0	£12.48	5 days
PRO2201079	1.8	Aluminium	RIght Hand	1.6	0	£12.48	5 days
PRO2201112	2.2	Aluminium	RIght Hand	1.75	0	£11.54	5 days
PRO2201113	2.5	Aluminium	RIght Hand	1.75	0	£11.54	5 days
PRO2201114	2.5	Aluminium	RIght Hand	2.25	0	£11.54	5 days
PRO2201115	2.7	Aluminium	RIght Hand	2.25	0	£11.54	5 days
PRO2201111	2	Aluminium	RIght Hand	1.75	0	£11.54	5 days
PRO2201118	3.2	Aluminium	RIght Hand	2.7	0	£12.01	5 days
PRO2201119	3.5	Aluminium	RIght Hand	2.7	0	£12.01	5 days
PRO2201116	3	Aluminium	RIght Hand	2.25	0	£12.01	5 days
PRO2201117	3	Aluminium	RIght Hand	2.7	0	£12.01	5 days
PRO2201121	4.2	Aluminium	RIght Hand	3.7	0	£12.48	5 days
PRO2201122	4.5	Aluminium	RIght Hand	3.7	0	£12.48	5 days
PRO2201120	4	Aluminium	RIght Hand	3.7	0	£12.48	5 days
PRO2201124	5.2	Aluminium	RIght Hand	4.5	0	£14.45	5 days
PRO2201125	5.5	Aluminium	RIght Hand	4.5	0	£14.45	5 days
PRO2201123	5	Aluminium	RIght Hand	4.5	0	£14.45	5 days
PRO2201092	1.4	Cast Iron	RIght Hand	1.2	0.03	£12.48	5 days
PRO2201093	1.5	Cast Iron	RIght Hand	1.2	0.03	£12.48	5 days
PRO2201094	1.6	Cast Iron	RIght Hand	1.4	0.03	£12.48	5 days
PRO2201095	1.8	Cast Iron	RIght Hand	1.6	0.03	£12.48	5 days
PRO2201172	2.2	Cast Iron	RIght Hand	1.75	0	£9.92	5 days
PRO2201173	2.5	Cast Iron	RIght Hand	1.75	0	£9.92	5 days
PRO2201174	2.5	Cast Iron	RIght Hand	2.25	0	£9.92	5 days
PRO2201175	2.7	Cast Iron	RIght Hand	2.25	0	£9.92	5 days
PRO2201171	2	Cast Iron	RIght Hand	1.75	0	£9.92	5 days
PRO2201178	3.2	Cast Iron	RIght Hand	2.7	0	£10.32	5 days
PRO2201179	3.5	Cast Iron	RIght Hand	2.7	0	£10.32	5 days
PRO2201176	3	Cast Iron	RIght Hand	2.25	0	£10.32	5 days
PRO2201177	3	Cast Iron	RIght Hand	2.7	0	£10.32	5 days
PRO2201181	4.2	Cast Iron	RIght Hand	3.7	0	£10.70	5 days
PRO2201182	4.5	Cast Iron	RIght Hand	3.7	0	£10.70	5 days
PRO2201180	4	Cast Iron	RIght Hand	3.7	0	£10.70	5 days
PRO2201184	5.2	Cast Iron	RIght Hand	4.5	0	£12.34	5 days
PRO2201185	5.5	Cast Iron	RIght Hand	4.5	0	£12.34	5 days
PRO2201183	5	Cast Iron	RIght Hand	4.5	0	£12.34	5 days
PRO2201084	1.4	Steels Stainless Super Alloys	RIght Hand	1.2	0.03	£12.48	5 days
PRO2201085	1.5	Steels Stainless Super Alloys	RIght Hand	1.2	0.03	£12.48	5 days
PRO2201086	1.6	Steels Stainless Super Alloys	RIght Hand	1.4	0.03	£12.48	5 days
PRO2201087	1.8	Steels Stainless Super Alloys	RIght Hand	1.6	0.03	£12.48	5 days
PRO2201142	2.2	Steels Stainless Super Alloys	RIght Hand	1.75	0	£11.57	5 days
PRO2201143	2.5	Steels Stainless Super Alloys	RIght Hand	1.75	0	£11.57	5 days
PRO2201144	2.5	Steels Stainless Super Alloys	RIght Hand	2.25	0	£11.57	5 days
PRO2201145	2.7	Steels Stainless Super Alloys	RIght Hand	2.25	0	£11.57	5 days
PRO2201141	2	Steels Stainless Super Alloys	RIght Hand	1.75	0	£11.57	5 days
PRO2201148	3.2	Steels Stainless Super Alloys	RIght Hand	2.7	0	£12.03	5 days
PRO2201149	3.5	Steels Stainless Super Alloys	RIght Hand	2.7	0	£12.03	5 days
PRO2201146	3	Steels Stainless Super Alloys	RIght Hand	2.25	0	£12.03	5 days
PRO2201147	3	Steels Stainless Super Alloys	RIght Hand	2.7	0	£12.03	5 days
PRO2201151	4.2	Steels Stainless Super Alloys	RIght Hand	3.7	0	£12.48	5 days
PRO2201152	4.5	Steels Stainless Super Alloys	RIght Hand	3.7	0	£12.48	5 days
PRO2201150	4	Steels Stainless Super Alloys	RIght Hand	3.7	0	£12.48	5 days
PRO2201154	5.2	Steels Stainless Super Alloys	RIght Hand	4.5	0	£14.43	5 days
PRO2201155	5.5	Steels Stainless Super Alloys	RIght Hand	4.5	0	£14.43	5 days
PRO2201153	5	Steels Stainless Super Alloys	RIght Hand	4.5	0	£14.43	5 days
