Carmex Small Indexable Carbide Insert Face Grooving Full Radius Internal - T10 - 14mm Min Bore - 1.6mm Width - R0.8
| Insert Size | T10 |
| Radius | 0.8 |
| Groove Width | 1.60 |
| Groove Depth | 2.50 |
Learn more about Klarna
Description

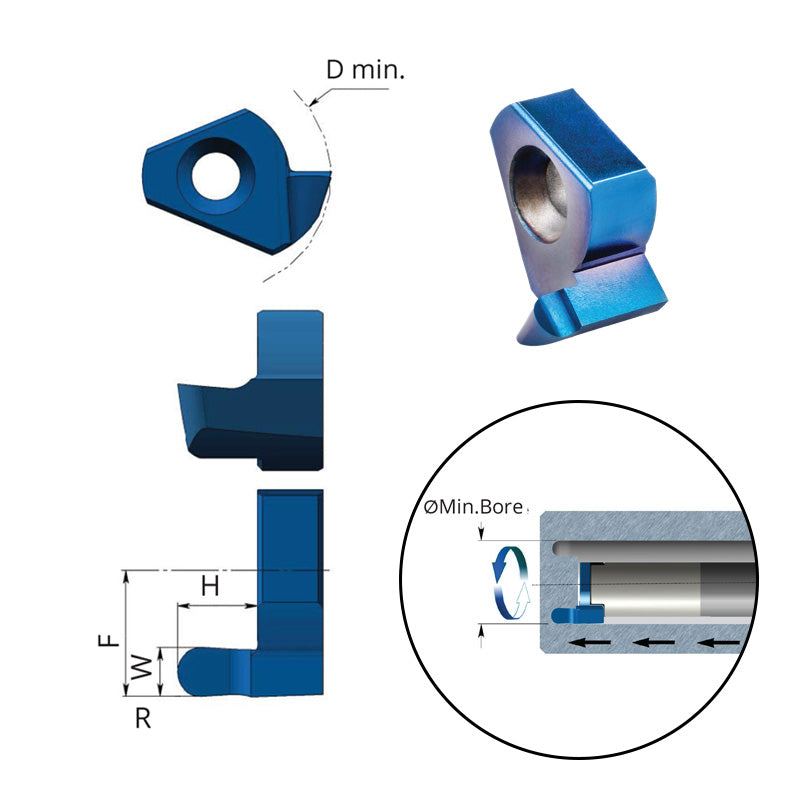

This compact, indexable carbide insert is designed for internal face grooving with a full-radius profile. Ideal for tight-pocket work, it supports a minimum bore of Ø14.0 mm (0.55 in) and a narrow 1.6 mm width, making it a precise choice for small-diameter grooves.
- Indexable insert: T10 size for easy interchange and maintenance in face grooving operations.
- Full-radius internal groove: Produces smooth, round grooves with a true R0.8 radius.
- Internal bore requirement: Minimum bore Ø14.0 mm (0.55 in) to accommodate the insert.
- Width: 1.6 mm to fit narrow groove profiles and tight tooling pockets.
- Coating & grade: BLU PVD triple-layer coated sub-micron carbide for enhanced wear resistance.
- Material compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10-M20, K05-K20, N10-N20, S10-S20).
- Application: Specifically engineered for precise internal face grooving with a full-radius profile.
Designed to deliver consistent groove geometry and long wear life, this insert supports reliable performance across a range of challenging materials. The combination of a small 1.6 mm width, a 14 mm minimum bore, and a robust BLU PVD coating ensures precise cuts, reduced tool wear, and efficient changeovers in compact turning and grooving setups.
Part Numbers
- Protool Part Number
- T10ZIR08H25BLU
- Brand
- Carmex
- Category
- Mini Tool Insert
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Face Grooving Full Radius Internal
View full collection →You are viewing T10ZIR08H25BLU. Click any other SKU to view its full details.
| Product SKU | Insert Size | Radius | Groove Width | Groove Depth | Minimum Bore | F | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| T10ZIR05H15BLU | T10 | 0.5 | 1.00 | 1.50 | 14 | 8 | £19.44 | In Stock | |
| T10ZIR08H25BLU Viewing | T10 | 0.8 | 1.60 | 2.50 | 14 | 8 | £20.46 | 5 days | |
| T10ZIR10H30BLU | T10 | 1 | 2.00 | 3.00 | 14 | 8 | £21.22 | In Stock | |
| T10ZIR125H30BLU | T10 | 1.25 | 2.50 | 3.00 | 14 | 8 | £21.22 | 5 days | |
| T10ZIR15H30BLU | T10 | 1.5 | 3.00 | 3.00 | 14 | 8 | £21.22 | 5 days |
