Carmex Small Indexable Carbide Insert Face Grooving Full Radius Internal - T10 - 14mm Min Bore - 3mm Width - R1.5

Compact, indexable carbide insert for internal face grooving with a full-radius groove. Sized as T10, it’s designed to produce clean, repeatable internal grooves in hard materials, with a 14 mm minimum bore, 3 mm width, and an R1.5 radius.

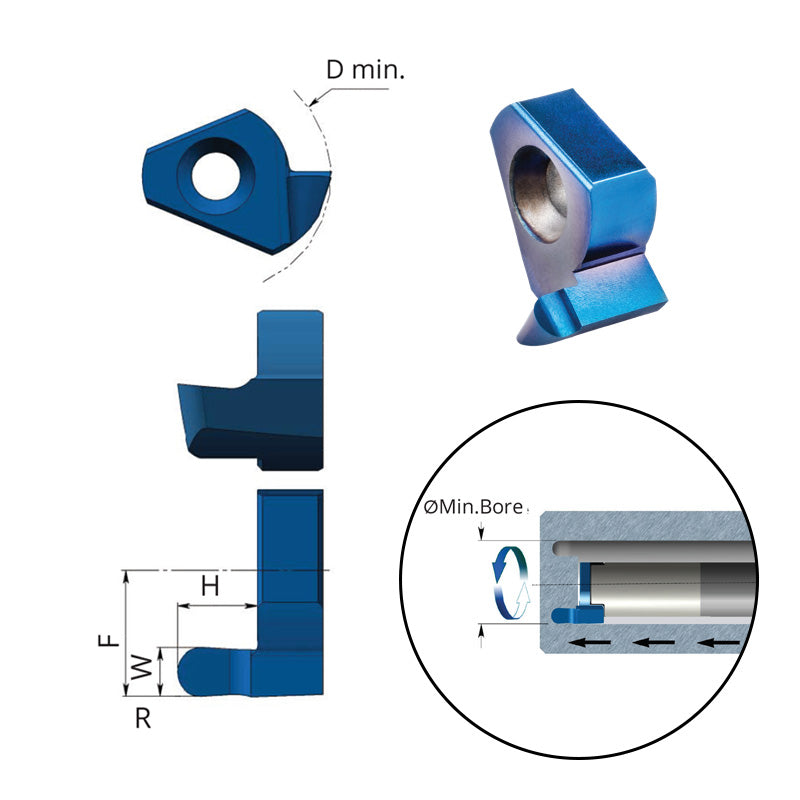

• Size/Indexing: T10 indexable carbide insert; 3 mm width; full-radius internal groove with an R1.5 profile; ØMin Bore 14.0 mm (0.55 in)
• Coating: BLU PVD triple-layer coating on sub-micron grade carbide for enhanced wear resistance and high-temperature performance
• Material: Carbide insert built for durability in demanding machining environments
• Application: Internal face grooving with a full-radius groove to produce strong, smooth bore features
• Compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and most high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20)

Benefits: The BLU coating helps resist wear and heat, extending tool life when machining hard alloys. The full-radius internal groove delivers consistent geometry and a clean finish in bores that meet the 14 mm minimum size, while the compact 3 mm width enables use in tight pockets and challenging features. With an indexable design, you replace only the insert tip, reducing downtime and optimizing productivity in precision internal grooving operations.
