Carmex Small Indexable Carbide Insert Face Grooving Full Radius Internal - T10 - 14mm Min Bore - 2mm Width - R1
| Insert Size | T10 |
| Radius | 1 |
| Groove Width | 2.00 |
| Groove Depth | 3.00 |
| Minimum Bore | 14 |
| F | 8 |
Learn more about Klarna
Precise internal grooving with a compact, indexable carbide insert that creates true full-radius (R1) grooves. Designed for machinists who need consistent, efficient internal machining on challenging materials.
- Full-radius internal grooving: Produces round-bottom grooves for smooth transitions and reliable seal seating inside bores.
- Internal bore compatibility: Internal minimum bore diameter of 14.0 mm (0.55 in) supports standard internal feature work.

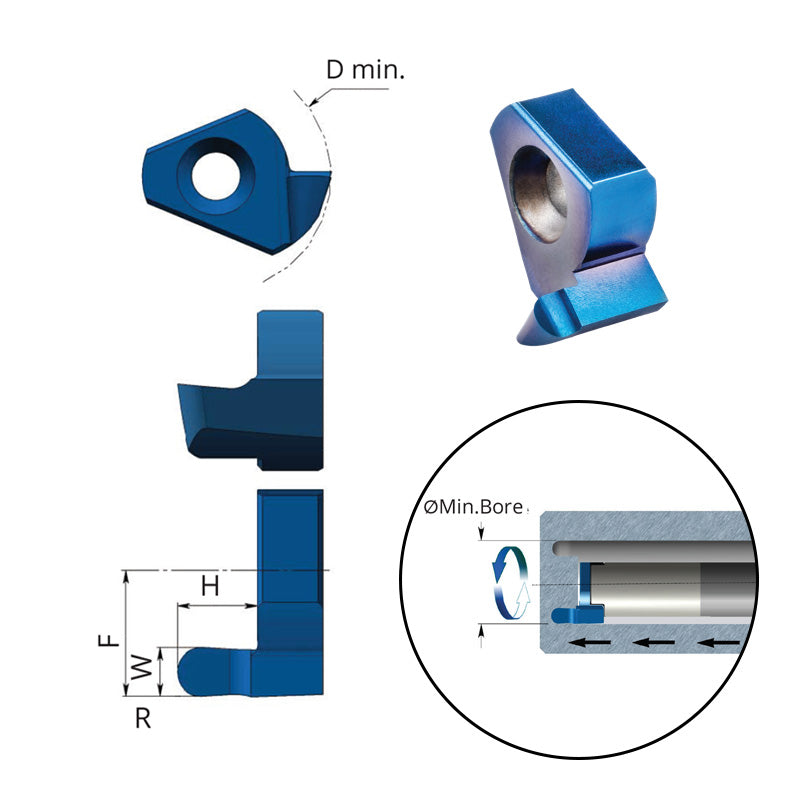

- Dimensions and geometry: 14 mm min bore, 2 mm width, R1 full-radius edge, T10 form for precise seating in the toolholder.
- Carbide grade and coating: BLU PVD triple-layer coated sub-micron carbide for enhanced wear resistance and durability.
- Material compatibility: Suitable for stainless steels, cast iron, titanium, non-ferrous metals, and many high-temperature alloys (M10–M20, K05–K20, N10–N20, S10–S20).
- Indexable design: Quick, repeatable insert indexing to minimize downtime and maintain consistent groove depth.
This insert delivers dependable performance in internal grooving tasks, helping you achieve clean finishes and stable groove dimensions across production runs. The BLU PVD coating reduces wear in tough materials, while the full-radius profile minimizes sharp corners and stress concentrations for longer tool life and better part integrity.
| Insert Size | T10 |
| Radius | 1 |
| Groove Width | 2.00 |
| Groove Depth | 3.00 |
| Minimum Bore | 14 |
| F | 8 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Carmex Small Indexable Carbide Insert Face Grooving Full Radius Internal
View full collection →You are viewing T10ZIR10H30BLU. Click any other SKU to view its full details.
| Product SKU | Insert Size | Radius | Groove Width | Groove Depth | Minimum Bore | F | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| T10ZIR05H15BLU | T10 | 0.5 | 1.00 | 1.50 | 14 | 8 | £19.44 | In Stock | |
| T10ZIR08H25BLU | T10 | 0.8 | 1.60 | 2.50 | 14 | 8 | £20.46 | 5 days | |
| T10ZIR10H30BLU Viewing | T10 | 1 | 2.00 | 3.00 | 14 | 8 | £21.22 | In Stock | |
| T10ZIR125H30BLU | T10 | 1.25 | 2.50 | 3.00 | 14 | 8 | £21.22 | 5 days | |
| T10ZIR15H30BLU | T10 | 1.5 | 3.00 | 3.00 | 14 | 8 | £21.22 | 5 days |
