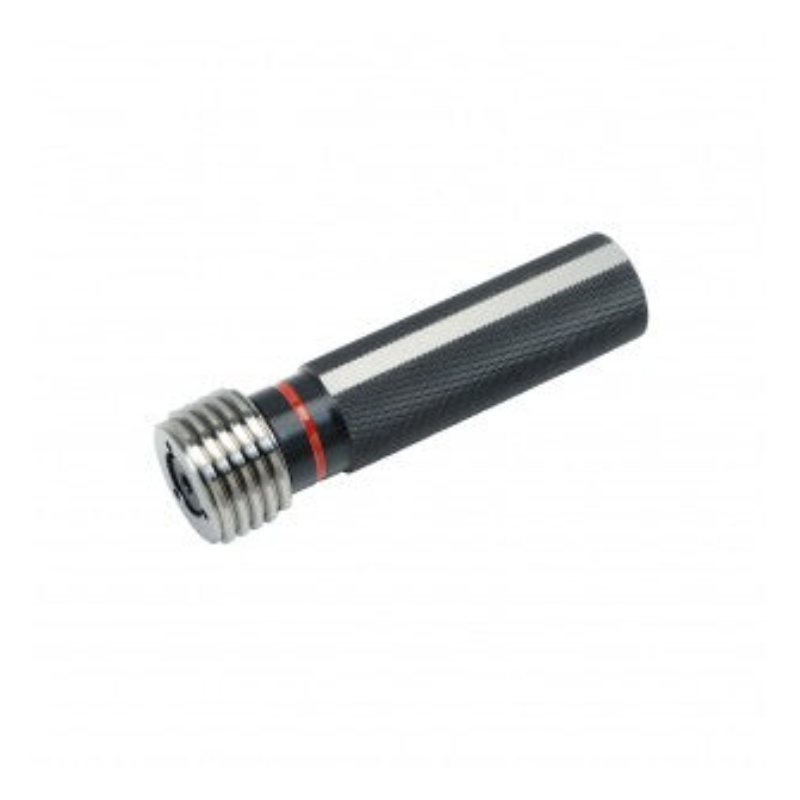

VCOIL Plug Gauge (NoGo) - UN (STI) - Heli Coil Gauge - Right Hand - 2B - 1.7/8 x 8
| Thread Form | UN (STI) |
| Size | 1.7/8 |
| Pitch | 8 |
| Gauge Type | Plug Gauge (NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
The VCOIL Plug Gauge (NoGo) is a precision go/no-go thread gauge designed for UN (STI) helicoil installations. It’s crafted for machinists and quality teams who need fast, standards‑compliant verification of right‑hand 1-7/8 x 8 threads.
- Go/No-Go design: Combines go and no-go ends in one gauge for rapid pass/fail verification without guesswork.
- Thread standard: Built to ANSI/ASME UN (STI) thread system, ensuring reliable compatibility with Helicoil inserts and mating parts.
- Direction: Right‑hand gauge optimized for typical helicoil applications.
- Size and tolerance: 1-7/8 in diameter, 8 TPI, with a 2B tolerance class for consistent measurements.
- Scrap-side marking: Red ring clearly marks the scrap side, helping you identify rejects at a glance.
- Construction cue: Knurled body provides secure grip for manual testing and handling, aligned with professional shop practice.
- Reference temperature: Measurements standardized at 20°C to ensure consistency across parts and gauges.
Benefits: Using the VCOIL Plug Gauge (NoGo) streamlines quality control by delivering instant pass/fail results for UN (STI) helicoil threads. The integrated go/no-go ends reduce rework and damaged threads, while the red scrap-side marking minimizes misreads in fast-paced environments. With ANSI/ASME compliance and a clearly defined size (1-7/8 in, 8 TPI) and tolerance (2B), this gauge helps maintain thread integrity across production runs and ensures parts meet exacting standards every time.
Part Numbers
- Protool Part Number
- TC-19855
- Brand
- VCOIL
- Category
- Gauge
