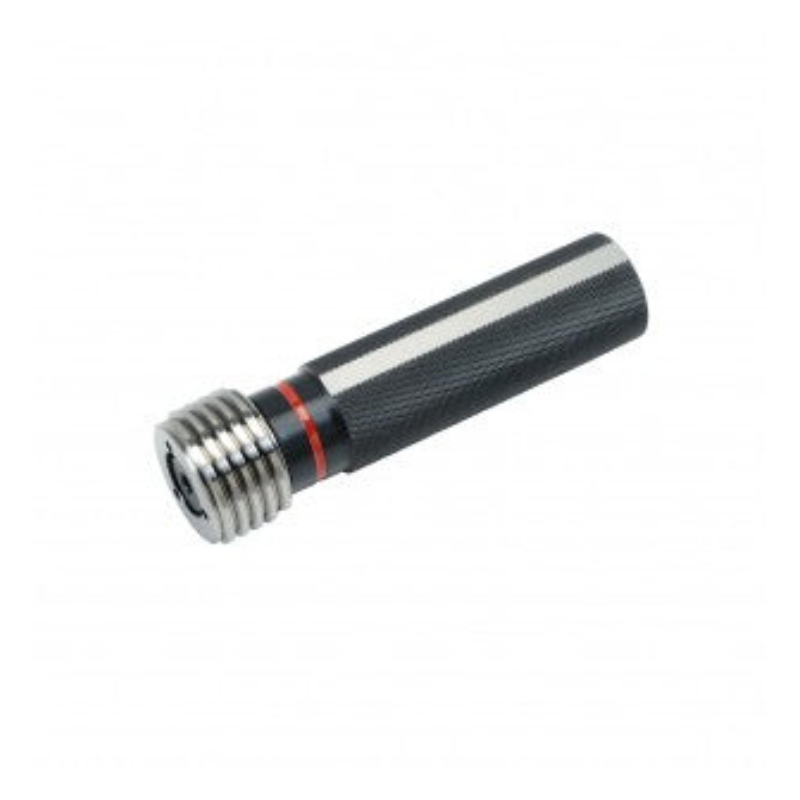

VCOIL Plug Gauge (NoGo) - UN (STI) - Heli Coil Gauge - Right Hand - 3B - 1.3/4 x 8
| Thread Form | UN (STI) |
| Size | 1.3/4 |
| Pitch | 8 |
| Gauge Type | Plug Gauge (NoGo) |
Learn more about Klarna
Compatible certification
The ones our customers buy most.
Description
Engineered for precise thread validation, the VCOIL Plug Gauge (NoGo) is a UN (STI) right-hand Helicoil gauge designed for quick, reliable go/no-go checks against ANSI/ASME thread standards. It’s ideal for workshops and manufacturing environments that require clear pass/fail parsing of threaded parts.
- Go/No-Go design: A thread limit plug gauge that combines the go end and the no-go end to verify threads against standard specifications.
- Scrap end identification: Scrap side is clearly marked with a red ring for immediate recognition during inspection.
- Go end criteria: The go end must screw into the thread cut into a part by hand, without using excessive force.
- No-Go criteria: The no-go end must not be able to be manually turned more than two turns into the cut thread (without excessive force).
- Standard compliance: Manufactured and assessed in accordance with ANSI/ASME thread system guidelines.
- Reference temperature: The reference temperature for parts and gauges is 20°C.
- Designation: UN (STI) – Right Hand – 3B – 1.3/4 x 8 Helicoil Gauge.
Using the VCOIL Plug Gauge ensures consistent thread quality and clear pass/fail decisions, helping to reduce guesswork in assembly, speed quality checks, and maintain tight tolerances across threaded components. Its compact, purpose-built design supports quick inspections in busy shop environments, contributing to lower scrap rates and more reliable fittings.
Part Numbers
- Protool Part Number
- TC-19952
- Brand
- VCOIL
- Category
- Gauge
Need cutting data? Call 01732 887334 or email sales@protool-ltd.co.uk.
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: VCOIL Plug Gauges UN (STI)
View full collection →You are viewing TC-19952. Click any other SKU to view its full details.
| Product SKU | Size | Pitch | Price | Stock | Order |
|---|---|---|---|---|---|
| TC-19844 | 1.1/8 | 8 | £266.33 | 7 days | |
| TC-19845 | 1.1/4 | 8 | £303.43 | 7 days | |
| TC-19846 | 1.38 | 8 | £212.00 | 7 days | |
| TC-19847 | 1.3/8 | 8 | £212.00 | 7 days | |
| TC-19848 | 1.1/2 | 8 | £200.08 | 7 days | |
| TC-19849 | 1.1/2 | 8 | £200.08 | 7 days | |
| TC-19850 | 1.5/8 | 8 | £200.08 | 7 days | |
| TC-19851 | 1.5/8 | 8 | £200.08 | 7 days | |
| TC-19852 | 1.3/4 | 8 | £232.83 | 7 days | |
| TC-19853 | 1.3/4 | 8 | £230.55 | 7 days | |
| TC-19854 | 1.7/8 | 8 | £230.55 | 7 days | |
| TC-19855 | 1.7/8 | 8 | £230.55 | 7 days | |
| TC-19856 | 2 | 8 | £247.78 | 7 days | |
| TC-19857 | 2 | 8 | £247.78 | 7 days | |
| TC-19944 | 1.1/8 | 8 | £319.33 | 7 days | |
| TC-19945 | 1.1/4 | 8 | £364.38 | 7 days | |
| TC-19946 | 1.3/8 | 8 | £254.40 | 7 days | |
| TC-19947 | 1.3/8 | 8 | £254.40 | 7 days | |
| TC-19948 | 1.1/2 | 8 | £241.15 | 7 days | |
| TC-19949 | 1.1/2 | 8 | £241.15 | 7 days | |
| TC-19950 | 1.5/8 | 8 | £241.15 | 7 days | |
| TC-19951 | 1.5/8 | 8 | £241.15 | 7 days | |
| TC-19952 Viewing | 1.3/4 | 8 | £275.60 | 7 days | |
| TC-19953 | 1.3/4 | 8 | £275.60 | 7 days | |
| TC-19954 | 1.7/8 | 8 | £275.60 | 7 days | |
| TC-19955 | 1.7/8 | 8 | £275.60 | 7 days | |
| TC-19956 | 2 | 8 | £298.13 | 7 days | |
| TC-19957 | 2 | 8 | £298.13 | 7 days |
