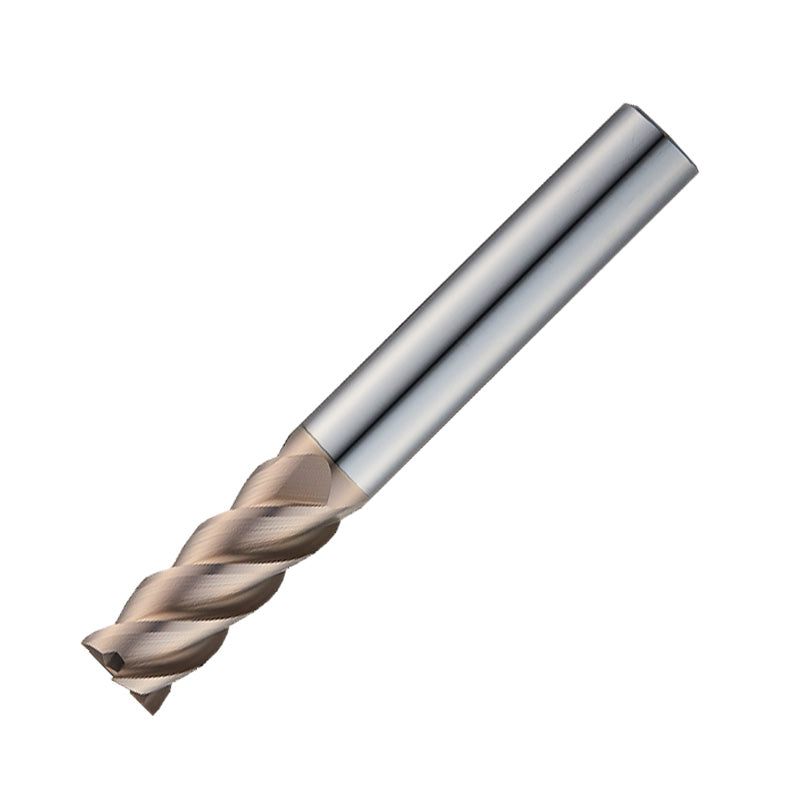

Widin Carbide Square End Mill For Mold & Die - 4 Flute High Helix (45°) - 1mm x4mm
| Cutter Diameter | 1 |
| Number of Flutes | 4 |
| Flute Length | 4 |
| Overall Length | 60 |
Learn more about Klarna
Description
Wid in Carbide Square End Mill for Mold & Die is a precision carbide tool designed for demanding tooling work. It supports a versatile cutting diameter range from 1.0 mm to 20.0 mm, enabling adjustments across small details to larger pockets without swapping tools. A tight tolerance of +0/-0.03 mm ensures repeatable, accurate cuts for consistent mold features.
- Wide cutting diameter range (1.0–20.0 mm): Provides flexible options for a wide variety of features and pockets, reducing tool changes and increasing productivity.
- Tight diameter tolerance (+0/-0.03 mm): Delivers consistent feature sizes and repeatable results across multiple parts, improving quality and interchangeability.
- 45° high-helix with W coating: Reduces cutting forces, enhances chip evacuation, and extends tool life through improved wear resistance and machining stability.
The 45° high-helix geometry helps smooth cutting action and efficient chip clearance, while the W coating adds durability for longer tool life in challenging materials. This end mill is particularly well suited for mold and die machining below 55 HRc, including pre-hardened steel, alloy steel, and carbon steel, delivering reliable performance across a range of industrial applications.
Part Numbers
- Protool Part Number
- UE504H01004
- Brand
- Widin
- Category
- End Mill
Delivery
Free UK mainland delivery on orders over £50 ex VAT. In-stock items ordered before 4:30pm are dispatched the same working day. Full delivery information.
Returns
14-day returns on unused stock items in original packaging. Special-order and bespoke tooling is non-returnable. Read our returns policy.
Technical Support
Over 30 years of machining experience behind the counter. Call 01732 887334, Mon–Thurs 8:30–17:30, Fri 8:30–16:30.
Trade Accounts
Credit accounts, contract pricing and scheduled call-off orders available for trade customers. Apply for an account.
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute High Helix (45°) (WE504H)
View full collection →You are viewing UE504H01004. Click any other SKU to view its full details.

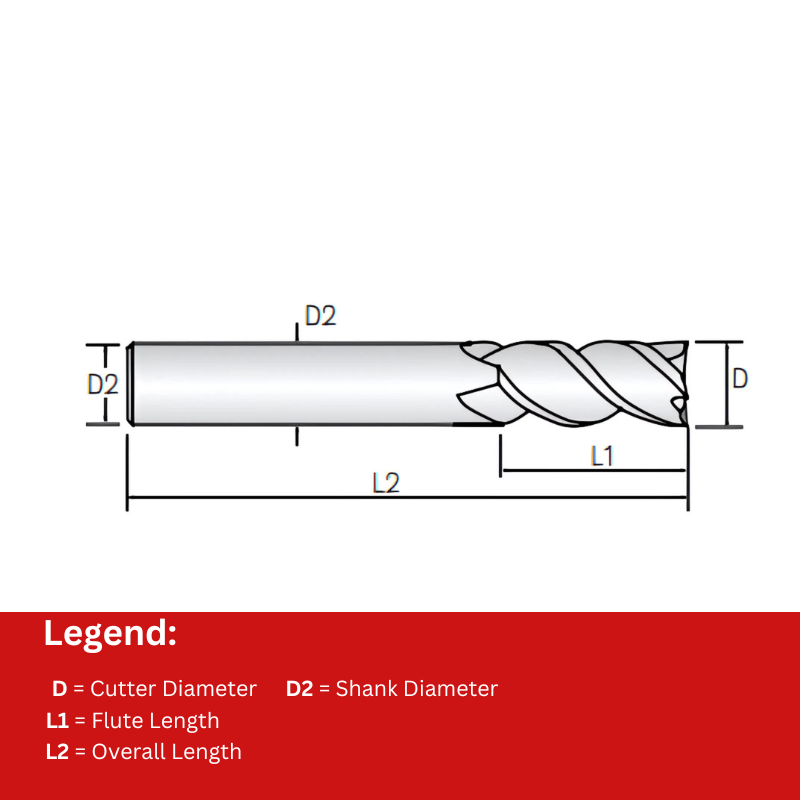

| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE504H01004 Viewing | 1 | 4 | 4 | 60 | 6 | £26.75 | 5 days | |
| UE504H010 | 1 | 4 | 2.5 | 50 | 6 | £25.80 | 5 days | |
| UE504H01006 | 1 | 4 | 6 | 60 | 6 | £26.75 | 5 days | |
| UE504H015 | 1.5 | 4 | 4 | 50 | 6 | £25.80 | 5 days | |
| UE504H01506 | 1.5 | 4 | 6 | 60 | 6 | £26.75 | 5 days | |
| UE504H01508 | 1.5 | 4 | 8 | 60 | 6 | £26.75 | 5 days | |
| UE504H020 | 2 | 4 | 6 | 50 | 6 | £25.80 | In Stock | |
| UE504H02010 | 2 | 4 | 10 | 60 | 6 | £26.75 | 5 days | |
| UE504H02008 | 2 | 4 | 8 | 60 | 6 | £26.75 | 5 days | |
| UE504H03012 | 3 | 4 | 12 | 70 | 6 | £27.98 | 5 days | |
| UE504H030 | 3 | 4 | 8 | 50 | 6 | £25.80 | 5 days | |
| UE504H03010 | 3 | 4 | 10 | 70 | 6 | £27.98 | 5 days | |
| UE504H03016 | 3 | 4 | 16 | 70 | 6 | £27.98 | 5 days | |
| UE504H040 | 4 | 4 | 10 | 50 | 6 | £25.80 | In Stock | |
| UE504H04012 | 4 | 4 | 12 | 70 | 6 | £27.98 | 5 days | |
| UE504H04016 | 4 | 4 | 16 | 70 | 6 | £27.98 | 5 days | |
| UE504H04020 | 4 | 4 | 20 | 70 | 6 | £27.98 | 5 days | |
| UE504H050 | 5 | 4 | 15 | 50 | 6 | £25.80 | In Stock | |
| UE504H05030 | 5 | 4 | 30 | 80 | 6 | £28.93 | 5 days | |
| UE504H060 | 6 | 4 | 15 | 60 | 6 | £25.80 | 5 days | |
| UE504H06020 | 6 | 4 | 20 | 70 | 6 | £27.98 | 5 days | |
| UE504H06030 | 6 | 4 | 30 | 80 | 6 | £28.93 | 5 days | |
| UE504H08035 | 8 | 4 | 35 | 90 | 8 | £51.80 | 5 days | |
| UE504H080 | 8 | 4 | 20 | 70 | 8 | £47.95 | 5 days | |
| UE504H08030 | 8 | 4 | 30 | 80 | 8 | £49.88 | 5 days | |
| UE504H08040 | 8 | 4 | 40 | 90 | 8 | £51.80 | 5 days | |
| UE504H100 | 10 | 4 | 25 | 75 | 10 | £67.70 | In Stock | |
| UE504H10030 | 10 | 4 | 30 | 80 | 10 | £70.23 | 5 days | |
| UE504H10040 | 10 | 4 | 40 | 90 | 10 | £73.25 | 5 days | |
| UE504H10050 | 10 | 4 | 50 | 100 | 10 | £70.38 | 5 days | |
| UE504H120 | 12 | 4 | 30 | 80 | 12 | £98.20 | 5 days | |
| UE504H12040 | 12 | 4 | 40 | 90 | 12 | £102.30 | 5 days | |
| UE504H12050 | 12 | 4 | 50 | 100 | 12 | £106.28 | 5 days | |
| UE504H12060 | 12 | 4 | 60 | 110 | 12 | £110.58 | 5 days | |
| UE504H160 | 16 | 4 | 40 | 100 | 16 | £331.65 | In Stock | |
| UE504H160110 | 16 | 4 | 110 | 200 | 16 | £473.58 | 5 days | |
| UE504H16050 | 16 | 4 | 50 | 110 | 16 | £345.00 | 5 days | |
| UE504H16060 | 16 | 4 | 60 | 120 | 16 | £358.80 | 5 days | |
| UE504H200110 | 20 | 4 | 110 | 200 | 20 | £705.50 | 5 days | |
| UE504H20060 | 20 | 4 | 60 | 120 | 20 | £529.50 | 5 days | |
| UE504H200 | 20 | 4 | 45 | 100 | 20 | £509.25 | 5 days | |
| UE504H20070 | 20 | 4 | 70 | 130 | 20 | £551.25 | 5 days |
