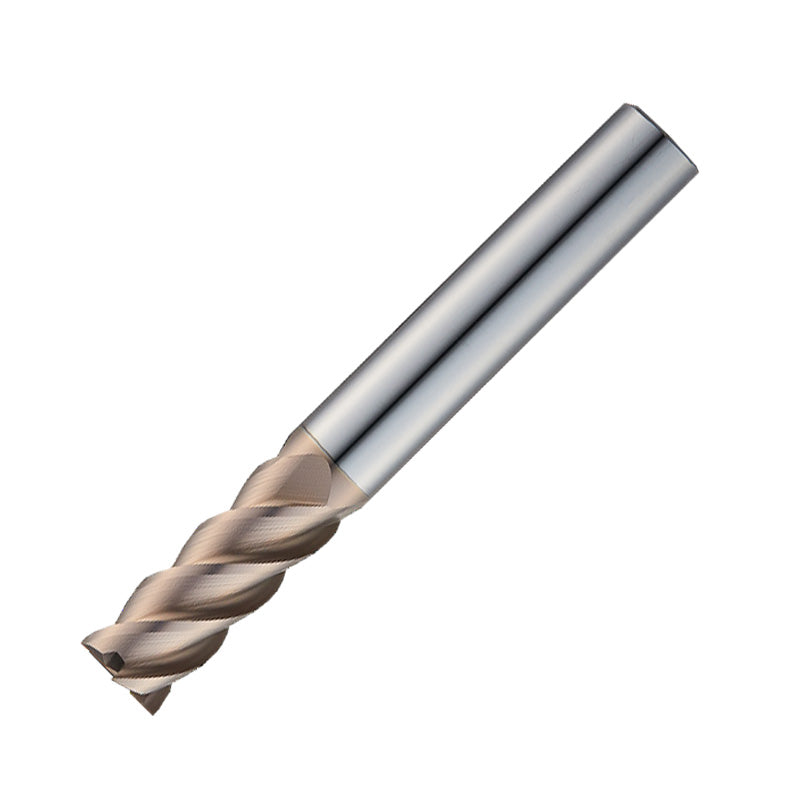

Widin Carbide Square End Mill For Mold & Die - 4 Flute High Helix (45°) - 3mm x12mm

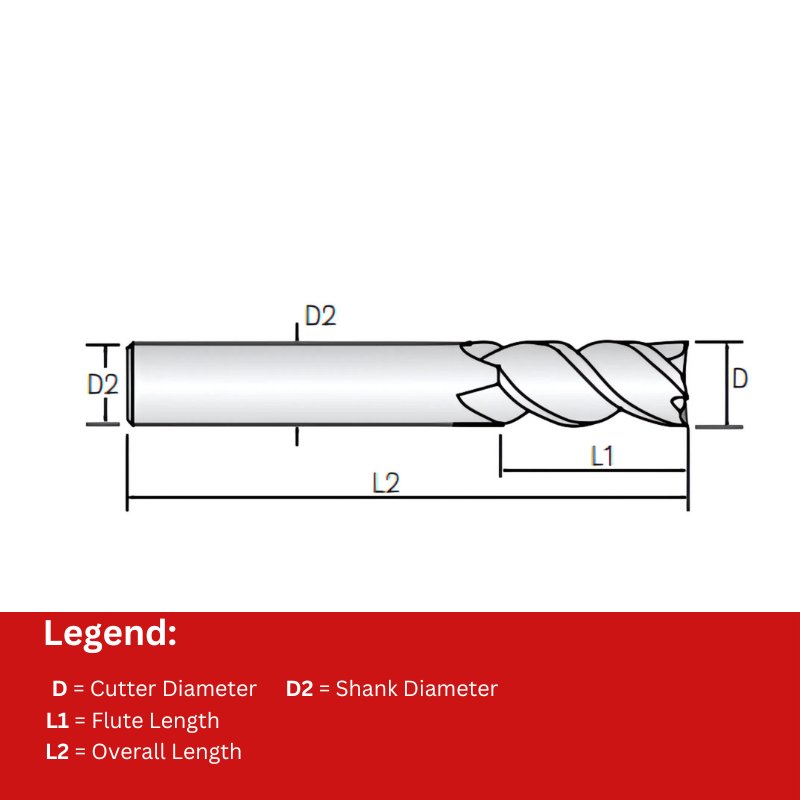

| Cutter Diameter | 3 |
| Number of Flutes | 4 |
| Flute Length | 12 |
| Overall Length | 70 |
| Shank Diameter | 6 |
Learn more about Klarna
A versatile end mill designed for precision machining in mold and die applications. It offers a cutting diameter range of 1.0mm to 20.0mm, providing flexibility for various machining tasks. With a tight cutting diameter tolerance of +0/-0.03mm, this end mill ensures precise and accurate cutting results. The 45° high helix angle reduces cutting load and promotes efficient chip evacuation, resulting in improved performance and reduced tool wear. Crafted with the finest raw materials, this end mill offers better wear resistance and enhanced machining capabilities. The W coating further enhances the tool's durability, ensuring a longer tool life and improved machining stability. This square end mill is particularly suitable for mold and die machining below 55 HRc, as well as pre-hardened steel, alloy steel, and carbon steel.
| Cutter Diameter | 3 |
| Number of Flutes | 4 |
| Flute Length | 12 |
| Overall Length | 70 |
| Shank Diameter | 6 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Square End Mill For Mold & Die - 4 Flute High Helix (45°) (WE504H)
View full collection →You are viewing UE504H03012. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|
| UE504H01004 | 1 | 4 | 4 | 60 | 6 | £27.01 | 5 days | |
| UE504H010 | 1 | 4 | 2.5 | 50 | 6 | £26.03 | 5 days | |
| UE504H01006 | 1 | 4 | 6 | 60 | 6 | £27.01 | 5 days | |
| UE504H015 | 1.5 | 4 | 4 | 50 | 6 | £26.03 | 5 days | |
| UE504H01506 | 1.5 | 4 | 6 | 60 | 6 | £27.01 | 5 days | |
| UE504H01508 | 1.5 | 4 | 8 | 60 | 6 | £27.01 | 5 days | |
| UE504H020 | 2 | 4 | 6 | 50 | 6 | £11.45 | In Stock | |
| UE504H02010 | 2 | 4 | 10 | 60 | 6 | £27.01 | 5 days | |
| UE504H02008 | 2 | 4 | 8 | 60 | 6 | £27.01 | 5 days | |
| UE504H03012 Viewing | 3 | 4 | 12 | 70 | 6 | £28.24 | 5 days | |
| UE504H030 | 3 | 4 | 8 | 50 | 6 | £26.03 | 5 days | |
| UE504H03010 | 3 | 4 | 10 | 70 | 6 | £28.24 | 5 days | |
| UE504H03016 | 3 | 4 | 16 | 70 | 6 | £28.24 | 5 days | |
| UE504H040 | 4 | 4 | 10 | 50 | 6 | £11.45 | In Stock | |
| UE504H04012 | 4 | 4 | 12 | 70 | 6 | £28.24 | 5 days | |
| UE504H04016 | 4 | 4 | 16 | 70 | 6 | £28.24 | 5 days | |
| UE504H04020 | 4 | 4 | 20 | 70 | 6 | £28.24 | 5 days | |
| UE504H050 | 5 | 4 | 15 | 50 | 6 | £11.45 | In Stock | |
| UE504H05030 | 5 | 4 | 30 | 80 | 6 | £29.20 | 5 days | |
| UE504H060 | 6 | 4 | 15 | 60 | 6 | £26.03 | 5 days | |
| UE504H06020 | 6 | 4 | 20 | 70 | 6 | £28.24 | 5 days | |
| UE504H06030 | 6 | 4 | 30 | 80 | 6 | £29.20 | 5 days | |
| UE504H08035 | 8 | 4 | 35 | 90 | 8 | £50.90 | 5 days | |
| UE504H080 | 8 | 4 | 20 | 70 | 8 | £47.12 | 5 days | |
| UE504H08030 | 8 | 4 | 30 | 80 | 8 | £49.02 | 5 days | |
| UE504H08040 | 8 | 4 | 40 | 90 | 8 | £50.90 | 5 days | |
| UE504H100 | 10 | 4 | 25 | 75 | 10 | £28.06 | In Stock | |
| UE504H10030 | 10 | 4 | 30 | 80 | 10 | £66.15 | 5 days | |
| UE504H10040 | 10 | 4 | 40 | 90 | 10 | £68.99 | 5 days | |
| UE504H10050 | 10 | 4 | 50 | 100 | 10 | £66.30 | 5 days | |
| UE504H120 | 12 | 4 | 30 | 80 | 12 | £88.79 | 5 days | |
| UE504H12040 | 12 | 4 | 40 | 90 | 12 | £92.52 | 5 days | |
| UE504H12050 | 12 | 4 | 50 | 100 | 12 | £96.10 | 5 days | |
| UE504H12060 | 12 | 4 | 60 | 110 | 12 | £99.99 | 5 days | |
| UE504H160 | 16 | 4 | 40 | 100 | 16 | £126.90 | In Stock | |
| UE504H160110 | 16 | 4 | 110 | 200 | 16 | £411.81 | 5 days | |
| UE504H16050 | 16 | 4 | 50 | 110 | 16 | £300.00 | 5 days | |
| UE504H16060 | 16 | 4 | 60 | 120 | 16 | £312.00 | 5 days | |
| UE504H200110 | 20 | 4 | 110 | 200 | 20 | £613.48 | 5 days | |
| UE504H20060 | 20 | 4 | 60 | 120 | 20 | £460.44 | 5 days | |
| UE504H200 | 20 | 4 | 45 | 100 | 20 | £442.82 | 5 days | |
| UE504H20070 | 20 | 4 | 70 | 130 | 20 | £479.35 | 5 days |
