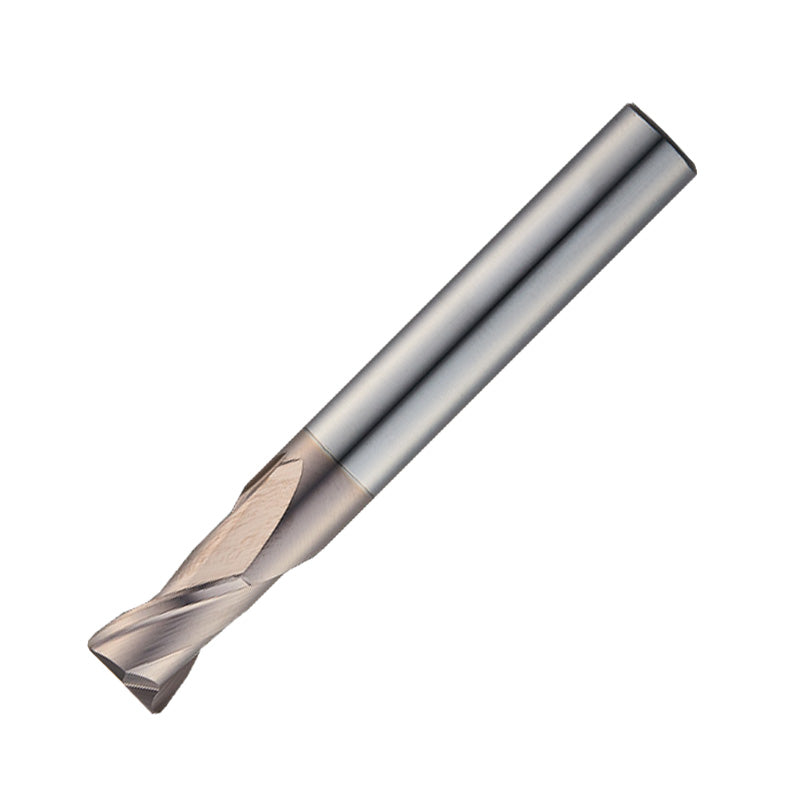

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 0.2mm x0.5mm x R0.05

Meet the Widin Carbide Corner Radius End Mill, a precision micro cutting tool designed for mold and die work. Featuring a 0.2 mm diameter, 0.5 mm cutting length, a corner radius of R0.05, and a long neck, it combines two-flute stability with a 30° helix for clean, repeatable finishes in tight spaces.

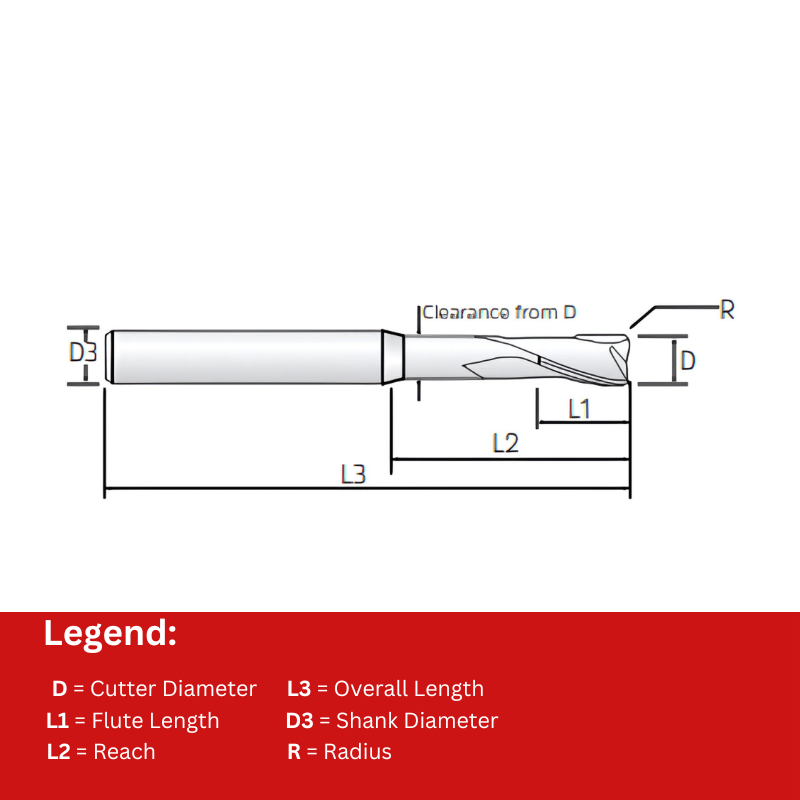

• Diameter: 0.2 mm
• Cutting Length: 0.5 mm
• Corner Radius: R0.05
• Flutes: 2-flute design for rigidity and efficient chip evacuation
• Helix Angle: 30° for smooth cutting and reduced cutting load
• Shank/Neck: Long neck for extended reach and stability in deep features
• Material: Solid carbide for hardness and wear resistance
• Applications: Specifically suited for mold and die micro-milling, tight radii, and deep grooves

This end mill delivers precise corner relief and consistent surface quality on small features. The 2-flute geometry helps keep cutting forces manageable while maintaining efficient chip clearance, supporting stable feeds and finishes. The long neck provides extended reach for deep grooves and internal corners without sacrificing rigidity, making it ideal for intricate mold and die components. The 0.05 mm corner radius offers smooth transitions in corners, reducing stress concentration and improving durability in demanding machining tasks.
