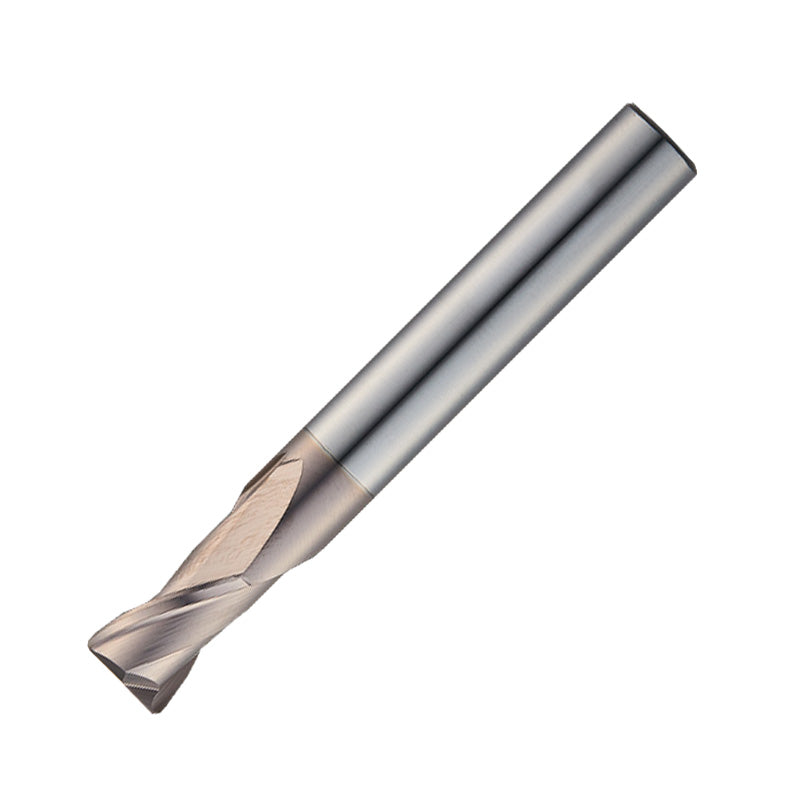

Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 1mm x20mm x R0.1

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for mold and die work, built to deliver tight fillets and clean surfaces in narrow cavities. With its compact 1 mm diameter and long-neck design, it’s ideal for intricate milling tasks that require both reach and stability.

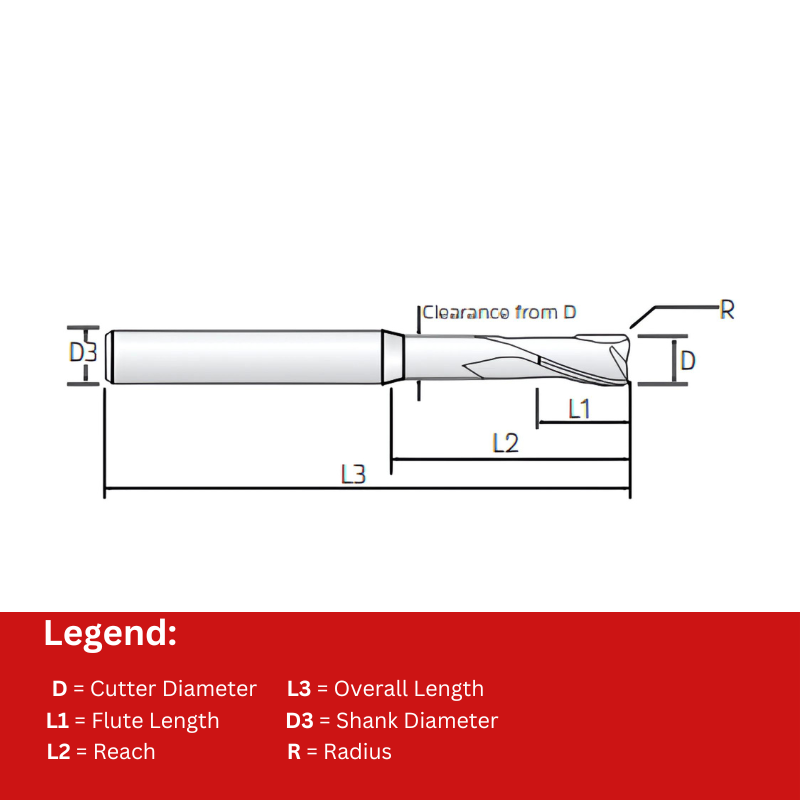

• Diameter: 1 mm cutting diameter for fine, detailed material removal
• Cutting Length: 20 mm length of cut to access deeper grooves and pockets
• Corner Radius: R0.1 for smooth corners and accurate fillets in mold/die features
• Flutes: 2-flute geometry optimized for efficient chip removal and smooth finishes
• Helix Angle: 30° for improved processability and reduced cutting load
• Material: Solid carbide for enhanced hardness, wear resistance, and long tool life
• Shank Type: Long-neck design provides extended reach and stability in deep grooves
• Application: Suited for precision mold and die machining, including detailed pocketing and corner radii

This end mill specializes in creating precise, consistent radii and fine surface finishes while maintaining rigidity in challenging mold and die geometries. The 30° helix reduces cutting forces, enabling smoother operation and higher throughput, especially in metalworking applications that demand tight tolerances. The combination of a small diameter, short cutting length, and long neck makes it a reliable choice for deep, narrow features where accuracy and control are paramount.
