Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 1.5mm x10mm x R0.2

The Widin Carbide Corner Radius End Mill is a precision routing tool designed for mold and die machining. With a 1.5 mm cutting diameter, a 10 mm cutting length, and a compact 0.2 mm corner radius, it delivers reliable radii in tight cavities while the long-neck design provides extended reach for intricate work.

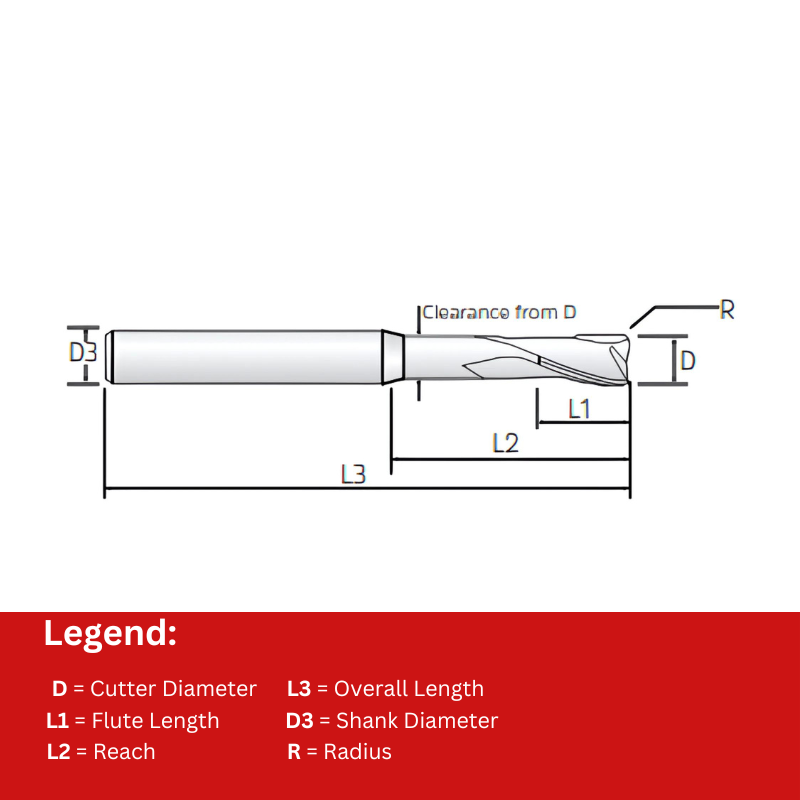

• Diameter: 1.5 mm cutting diameter for fine-detail pocketing and precise contouring.
• Length of Cut: 10 mm cutting length for accessing deeper pockets and features.
• Corner Radius: 0.2 mm radius to create smooth inside corners and reduce stress concentrations in mold features.
• Flutes: 2-flute geometry that supports efficient chip evacuation and stable cutting at small diameters.
• Helix Angle: 30° helix for balanced cutting speed and reduced cutting load, contributing to cleaner finishes.
• Shank/Neck Design: Long-neck design enabling extended reach into deep grooves and complex profiles.
• Material: Carbide for rigidity, wear resistance, and longer tool life in challenging mold and die materials.
• Intended Use: Optimized for mold and die work—pocketing, contouring, and radii creation in confined spaces.

This end mill is built to deliver consistent radii and smooth surface finishes in mold and die applications. The combination of a precise 1.5 mm diameter, a generous 10 mm reach, and a compact corner radius makes it a reliable choice for detailed cavity work, deep grooves, and intricate profiles. The 2-flute configuration supports efficient material removal while maintaining stability, helping you achieve repeatable results with less tool deflection and effort.
