Widin Carbide Corner Radius End Mill For Mold & Die - 2 Flute Long Neck - 1mm x16mm x R0.1

The Widin Carbide Corner Radius End Mill is a precision cutting tool designed for mold and die work, delivering clean corner radii and smooth surface finishes. With a 1 mm diameter, 16 mm overall length, and a long-neck design, it provides extended reach for deep groove machining while maintaining stable performance.

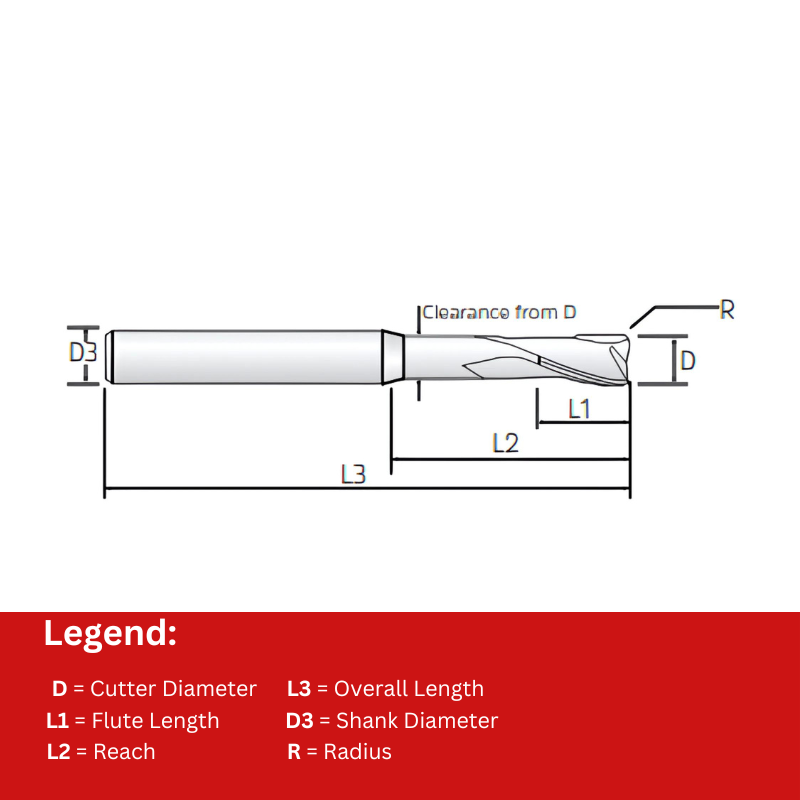

• Diameter: 1 mm
• Flutes: 2-flute design for rigidity and efficient material removal
• Corner Radius: R0.1 (0.1 mm) to preserve fillet geometry and reduce stress concentrations
• Length: 16 mm overall length with a long-neck for extended reach
• Helix Angle: 30° for improved processability and lower cutting load
• Material: Carbide for hardness, wear resistance, and long tool life
• Application: Ideal for mold and die work, deep grooves, and intricate cavity features

Designed to deliver consistent, high-precision finishes on tight radii and in hard-to-reach pockets, this end mill helps mold and die processes run more efficiently. The 30° helix reduces cutting forces, enabling smoother cuts and faster material removal without compromising edge life. The long-neck geometry provides extended reach for deep grooves and undercuts, reducing the need for re-fixturing and improving dimensional control on complex designs. The 0.1 mm corner radius preserves critical fillet geometry, supporting accurate part fit and smoother subsequent finishing steps. Built from carbide, it offers reliable wear resistance and repeatable performance across multiple passes in a range of machinable materials commonly used in mold and die applications.
