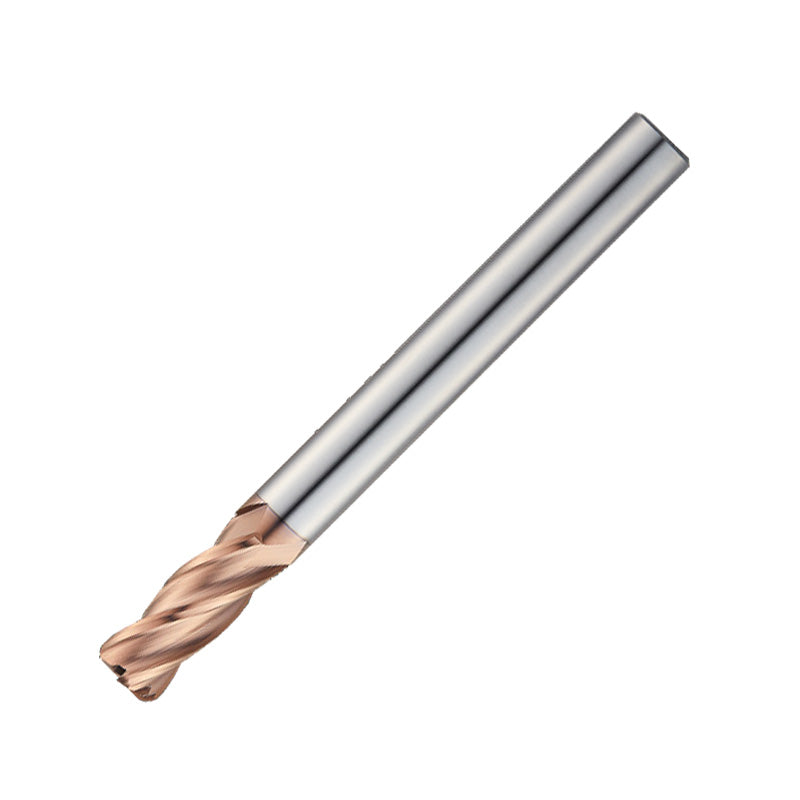

Widin Carbide Corner Radius End Mill - 4 Flute Long Shank - 4mm x R0.2

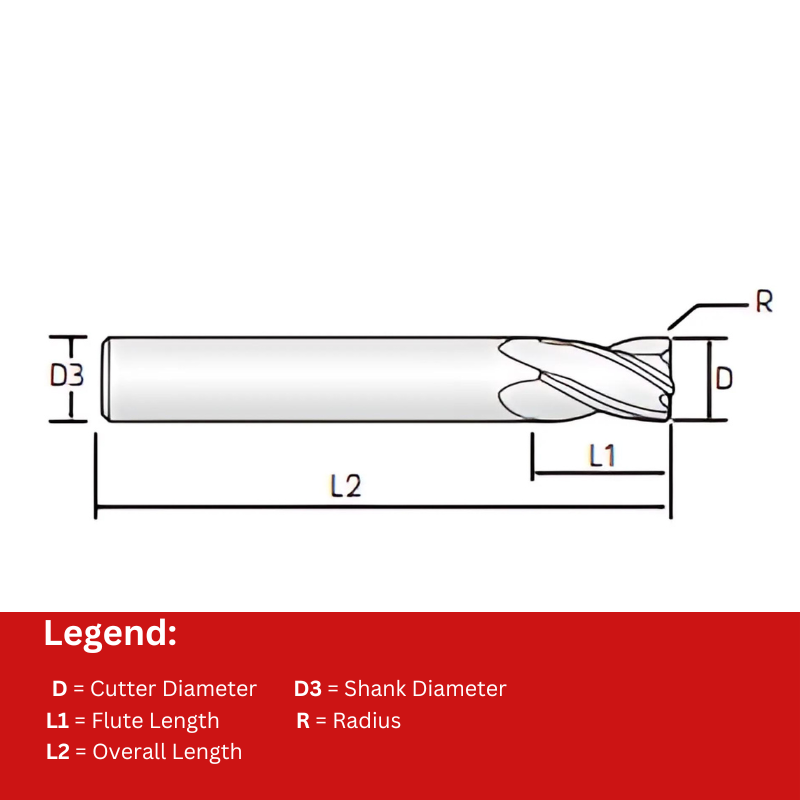

| Cutter Diameter | 4 |
| Number of Flutes | 4 |
| Flute Length | 10 |
| Overall Length | 70 |
| Shank Diameter | 6 |
| Corner Radius | 0.2 |
Learn more about Klarna
Meet the Widin carbide corner radius end mill—designed for machinists, mold makers, and precision fabricators who tackle hard metals and deep grooves. The 4-flute, long-shank geometry with a precise R0.2 corner radius delivers consistent fillets and clean finishes in difficult workpieces.
- Diameter: 4 mm cutting diameter for precise material removal in small slots and pockets.
- Corner Radius: R0.2 corner radius to create smooth internal corners and consistent fillets.
- Flutes: 4-flute configuration for efficient chip evacuation and stable cutting at higher speeds.
- Material: Solid carbide for high hardness resistance, rigidity, and longer tool life.
- Shank: Long shank design provides extended reach for deep grooves, pockets, and undercut features.
- Cutting Edge Design: Optimized geometry reduces vibration and improves surface finish on tough materials.
This end mill is ideal for operators working with hard-to-cut materials and applications that demand deep access—such as deep groove milling, pocketing, and contour finishing. The long shank enhances reach without sacrificing rigidity, while the carbide construction maintains accuracy and durability over extended cutting sessions. Expect precise radii, smooth tool paths, and dependable performance in demanding machining tasks.
| Cutter Diameter | 4 |
| Number of Flutes | 4 |
| Flute Length | 10 |
| Overall Length | 70 |
| Shank Diameter | 6 |
| Corner Radius | 0.2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Long Shank (ZR734)
View full collection →You are viewing ESR73404002. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ESR73401001 | 1 | 4 | 2 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73401002 | 1 | 4 | 2 | 50 | 6 | 0.2 | £38.64 | 5 days | |
| ESR73401003 | 1 | 4 | 2 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73401501 | 1.5 | 4 | 3 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73401502 | 1.5 | 4 | 3 | 50 | 6 | 0.2 | £38.64 | 5 days | |
| ESR73401503 | 1.5 | 4 | 3 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73401505 | 1.5 | 4 | 3 | 50 | 6 | 0.5 | £38.64 | 5 days | |
| ESR73402001 | 2 | 4 | 5 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73402002 | 2 | 4 | 5 | 50 | 6 | 0.2 | £15.46 | In Stock | |
| ESR73402005 | 2 | 4 | 5 | 50 | 6 | 0.5 | £38.64 | 5 days | |
| ESR73402003 | 2 | 4 | 5 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £39.78 | 5 days | |
| ESR73402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £39.78 | 5 days | |
| ESR73402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £39.78 | 5 days | |
| ESR73403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £39.78 | 5 days | |
| ESR73402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £39.78 | 5 days | |
| ESR73403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £39.78 | 5 days | |
| ESR73403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £39.78 | 5 days | |
| ESR73403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £39.78 | 5 days | |
| ESR73404002 Viewing | 4 | 4 | 10 | 70 | 6 | 0.2 | £16.37 | 5 days | View |
| ESR73404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £40.91 | 5 days | |
| ESR73404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £40.91 | 5 days | |
| ESR73404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £40.91 | 5 days | |
| ESR73404010 | 4 | 4 | 10 | 70 | 6 | 1 | £40.91 | 5 days | |
| ESR73405001 | 5 | 4 | 13 | 80 | 6 | 0.1 | £46.59 | 5 days | |
| ESR73405002 | 5 | 4 | 13 | 80 | 6 | 0.2 | £46.59 | 5 days | |
| ESR73405003 | 5 | 4 | 13 | 80 | 6 | 0.3 | £46.59 | 5 days | |
| ESR73405005 | 5 | 4 | 13 | 80 | 6 | 0.5 | £46.59 | 5 days | |
| ESR73405010 | 5 | 4 | 13 | 80 | 6 | 1 | £46.59 | 5 days | |
| ESR73406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £47.73 | 5 days | |
| ESR73406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £47.73 | 5 days | |
| ESR73406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £47.73 | 5 days | |
| ESR73406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £19.10 | In Stock | |
| ESR73406010 | 6 | 4 | 15 | 90 | 6 | 1 | £47.73 | 5 days | |
| ESR73408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £62.02 | 5 days | |
| ESR73408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £62.02 | 5 days | |
| ESR73408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £62.02 | 5 days | |
| ESR73408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £62.02 | 5 days | |
| ESR73408010 | 8 | 4 | 20 | 100 | 8 | 1 | £62.02 | 5 days | |
| ESR73408020 | 8 | 4 | 20 | 100 | 8 | 2 | £62.02 | 5 days | |
| ESR73410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £85.01 | 5 days | |
| ESR73410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £85.01 | 5 days | |
| ESR73410005 | 10 | 4 | 25 | 100 | 10 | 0.5 | £85.01 | 5 days | |
| ESR73410010 | 10 | 4 | 25 | 100 | 10 | 1 | £85.01 | 5 days | |
| ESR73410020 | 10 | 4 | 25 | 100 | 10 | 2 | £85.01 | 5 days | |
| ESR73412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £120.13 | 5 days | |
| ESR73412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £120.13 | 5 days | |
| ESR73412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £120.13 | 5 days | |
| ESR73412010 | 12 | 4 | 30 | 110 | 12 | 1 | £120.13 | 5 days | |
| ESR73412020 | 12 | 4 | 30 | 110 | 12 | 2 | £120.13 | 5 days |
