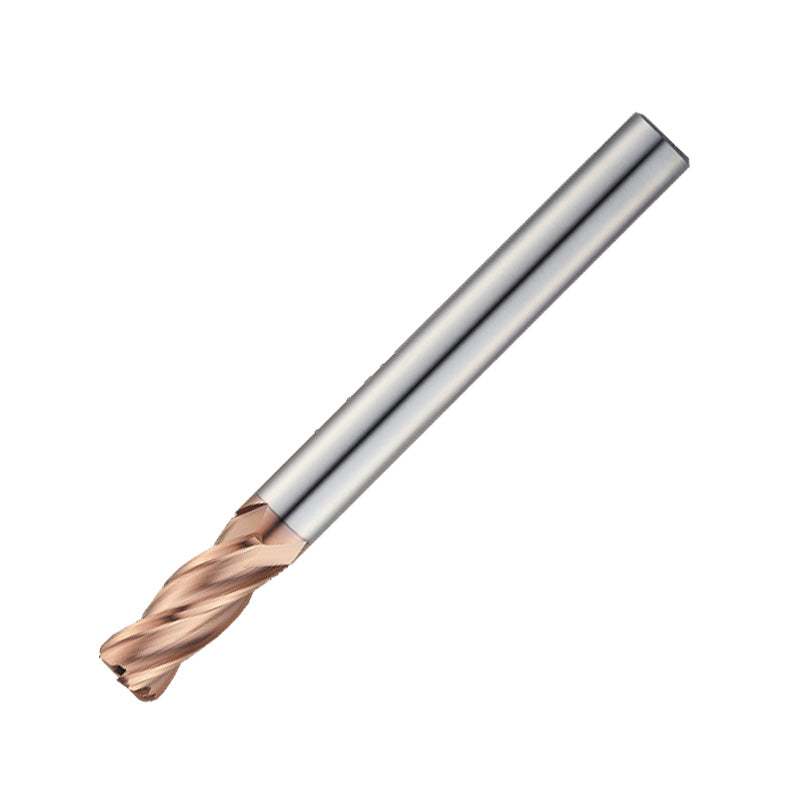

Widin Carbide Corner Radius End Mill - 4 Flute Long Shank - 10mm x R0.5

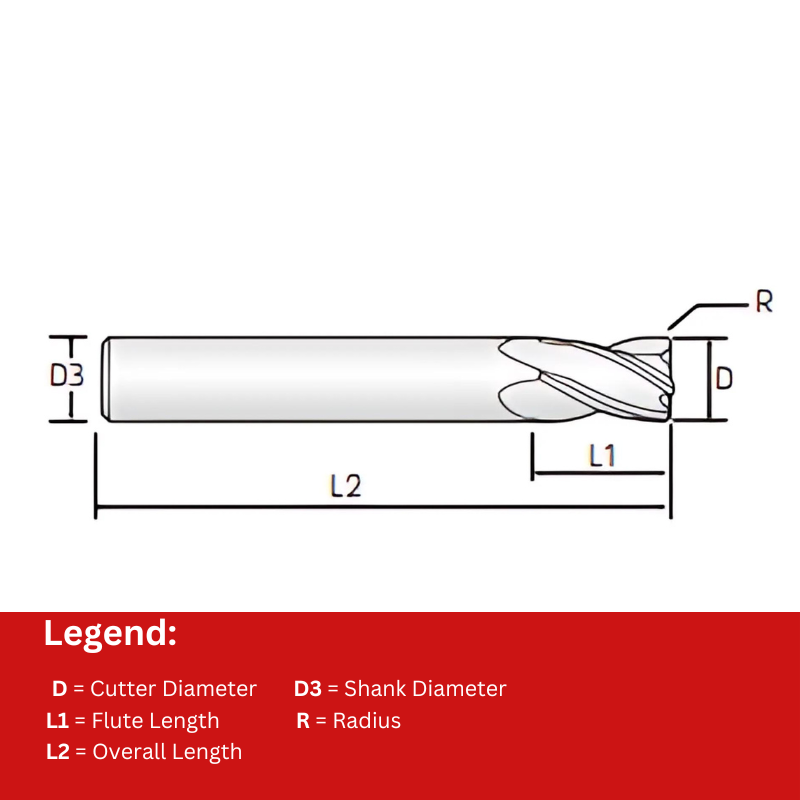

| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
Learn more about Klarna
Introducing the Widin Carbide Corner Radius End Mill—a precision cutting tool built for machinists who demand clean radii and reliable performance when working with hard materials. Its 10 mm diameter, 0.5 mm corner radius, 4-flute configuration, and long shank are engineered for deep groove milling and demanding profiling tasks.
- Diameter & Corner Radius: 10 mm diameter with an R0.5 corner radius for precise fillets and consistent part geometry.
- Flute Configuration: 4-flute design balances material removal, surface finish, and chip evacuation.
- Material: Carbide construction delivers exceptional hardness, wear resistance, and long tool life in tough metals.
- Long Shank: Extended shank provides reach into deep grooves and pockets without sacrificing rigidity.
- Cutting Edge Geometry: Optimized edge design enhances stability, reduces chatter, and maintains accuracy under load.
- Ideal Applications: Deep groove milling, radii finishing, and contour work in hard alloys such as die/mold steel, stainless steel, and titanium.
With its high-strength corner radius and extended reach, this end mill delivers reliable, repeatable results in challenging machining scenarios. The long shank helps you access deep features while the four flutes maintain efficient material removal and a smooth finish. Use it to produce precise radii, improve surface quality, and extend tool life in hard-to-machine materials.
| Cutter Diameter | 10 |
| Number of Flutes | 4 |
| Flute Length | 25 |
| Overall Length | 100 |
| Shank Diameter | 10 |
| Corner Radius | 0.5 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Long Shank (ZR734)
View full collection →You are viewing ESR73410005. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|
| ESR73401001 | 1 | 4 | 2 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73401002 | 1 | 4 | 2 | 50 | 6 | 0.2 | £38.64 | 5 days | |
| ESR73401003 | 1 | 4 | 2 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73401501 | 1.5 | 4 | 3 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73401502 | 1.5 | 4 | 3 | 50 | 6 | 0.2 | £38.64 | 5 days | |
| ESR73401503 | 1.5 | 4 | 3 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73401505 | 1.5 | 4 | 3 | 50 | 6 | 0.5 | £38.64 | 5 days | |
| ESR73402001 | 2 | 4 | 5 | 50 | 6 | 0.1 | £38.64 | 5 days | |
| ESR73402002 | 2 | 4 | 5 | 50 | 6 | 0.2 | £15.46 | In Stock | |
| ESR73402005 | 2 | 4 | 5 | 50 | 6 | 0.5 | £38.64 | 5 days | |
| ESR73402003 | 2 | 4 | 5 | 50 | 6 | 0.3 | £38.64 | 5 days | |
| ESR73402501 | 2.5 | 4 | 7 | 60 | 6 | 0.1 | £39.78 | 5 days | |
| ESR73402502 | 2.5 | 4 | 7 | 60 | 6 | 0.2 | £39.78 | 5 days | |
| ESR73402503 | 2.5 | 4 | 7 | 60 | 6 | 0.3 | £39.78 | 5 days | |
| ESR73403001 | 3 | 4 | 8 | 60 | 6 | 0.1 | £39.78 | 5 days | |
| ESR73402505 | 2.5 | 4 | 7 | 60 | 6 | 0.5 | £39.78 | 5 days | |
| ESR73403002 | 3 | 4 | 8 | 60 | 6 | 0.2 | £39.78 | 5 days | |
| ESR73403003 | 3 | 4 | 8 | 60 | 6 | 0.3 | £39.78 | 5 days | |
| ESR73403005 | 3 | 4 | 8 | 60 | 6 | 0.5 | £39.78 | 5 days | |
| ESR73404002 | 4 | 4 | 10 | 70 | 6 | 0.2 | £16.37 | 5 days | View |
| ESR73404001 | 4 | 4 | 10 | 70 | 6 | 0.1 | £40.91 | 5 days | |
| ESR73404003 | 4 | 4 | 10 | 70 | 6 | 0.3 | £40.91 | 5 days | |
| ESR73404005 | 4 | 4 | 10 | 70 | 6 | 0.5 | £40.91 | 5 days | |
| ESR73404010 | 4 | 4 | 10 | 70 | 6 | 1 | £40.91 | 5 days | |
| ESR73405001 | 5 | 4 | 13 | 80 | 6 | 0.1 | £46.59 | 5 days | |
| ESR73405002 | 5 | 4 | 13 | 80 | 6 | 0.2 | £46.59 | 5 days | |
| ESR73405003 | 5 | 4 | 13 | 80 | 6 | 0.3 | £46.59 | 5 days | |
| ESR73405005 | 5 | 4 | 13 | 80 | 6 | 0.5 | £46.59 | 5 days | |
| ESR73405010 | 5 | 4 | 13 | 80 | 6 | 1 | £46.59 | 5 days | |
| ESR73406001 | 6 | 4 | 15 | 90 | 6 | 0.1 | £47.73 | 5 days | |
| ESR73406002 | 6 | 4 | 15 | 90 | 6 | 0.2 | £47.73 | 5 days | |
| ESR73406003 | 6 | 4 | 15 | 90 | 6 | 0.3 | £47.73 | 5 days | |
| ESR73406005 | 6 | 4 | 15 | 90 | 6 | 0.5 | £19.10 | In Stock | |
| ESR73406010 | 6 | 4 | 15 | 90 | 6 | 1 | £47.73 | 5 days | |
| ESR73408001 | 8 | 4 | 20 | 100 | 8 | 0.1 | £62.02 | 5 days | |
| ESR73408002 | 8 | 4 | 20 | 100 | 8 | 0.2 | £62.02 | 5 days | |
| ESR73408003 | 8 | 4 | 20 | 100 | 8 | 0.3 | £62.02 | 5 days | |
| ESR73408005 | 8 | 4 | 20 | 100 | 8 | 0.5 | £62.02 | 5 days | |
| ESR73408010 | 8 | 4 | 20 | 100 | 8 | 1 | £62.02 | 5 days | |
| ESR73408020 | 8 | 4 | 20 | 100 | 8 | 2 | £62.02 | 5 days | |
| ESR73410002 | 10 | 4 | 25 | 100 | 10 | 0.2 | £85.01 | 5 days | |
| ESR73410003 | 10 | 4 | 25 | 100 | 10 | 0.3 | £85.01 | 5 days | |
| ESR73410005 Viewing | 10 | 4 | 25 | 100 | 10 | 0.5 | £85.01 | 5 days | |
| ESR73410010 | 10 | 4 | 25 | 100 | 10 | 1 | £85.01 | 5 days | |
| ESR73410020 | 10 | 4 | 25 | 100 | 10 | 2 | £85.01 | 5 days | |
| ESR73412002 | 12 | 4 | 30 | 110 | 12 | 0.2 | £120.13 | 5 days | |
| ESR73412003 | 12 | 4 | 30 | 110 | 12 | 0.3 | £120.13 | 5 days | |
| ESR73412005 | 12 | 4 | 30 | 110 | 12 | 0.5 | £120.13 | 5 days | |
| ESR73412010 | 12 | 4 | 30 | 110 | 12 | 1 | £120.13 | 5 days | |
| ESR73412020 | 12 | 4 | 30 | 110 | 12 | 2 | £120.13 | 5 days |
