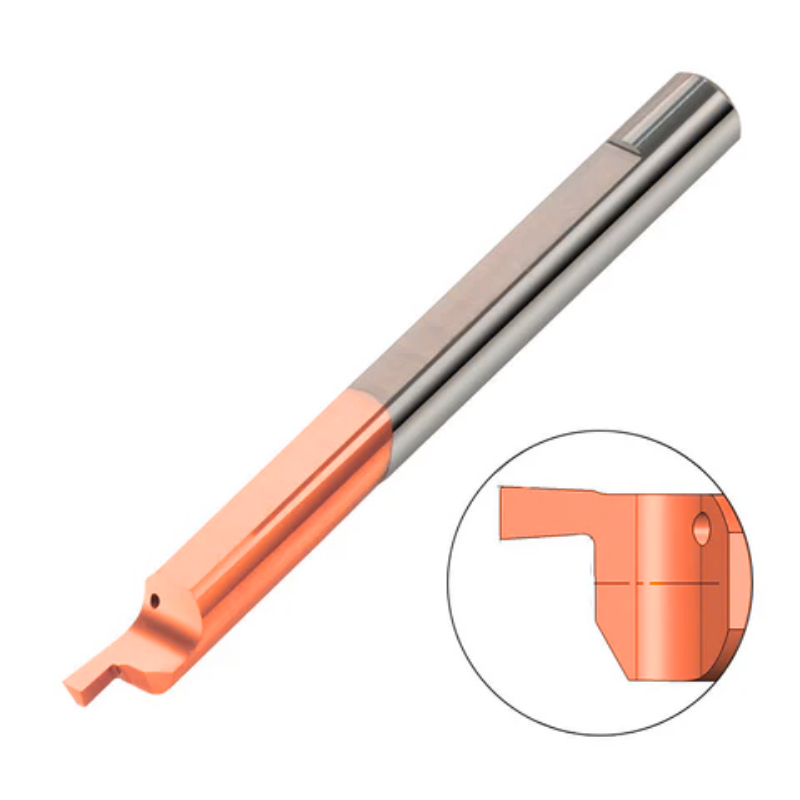

Carmex Carbide Tiny Tools - Face Grooving - Grade TNX (MFR)
£28.84
Solid carbide bars from Tiny Tools family, developed specially for face grooving applications. These bars produce straight grooves (as opposed to MZR/L bars that produce rounded ones). BXC - PVD TiN coated grade for low cutting speeds. Works well with a wide range of stainless steels. (ISO P30-P50 / K25-K40) BMK - Sub-micron grade with advanced PVD triple coating (ISO K10-K20). Extremely high heat resistance for maximum performance; Smooth cutting operation. General purpose for all materials.
| Product SKU | Minimum Diameter | Groove Width | Groove Depth | Reach | Radius | Grade | Holder | Price | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| MFL5B2.0L23TNX | 6 | 2 | 5 | 23 | 0.1 | TNX | SIM****H5 | £34.26 |
5 days | View product |
| MFL5B0.75L22TNX | 6 | 0.75 | 1.2 | 22 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL6B1.0L22TNX | 8 | 1 | 1.5 | 22 | 0.1 | TNX | SIM****H6 | £33.28 |
5 days | View product |
| MFL4B0.75L15TNX | 5 | 0.75 | 1.2 | 15 | 0.1 | TNX | SIM****H4 | £28.84 |
5 days | View product |
| MFL4B2.0L17TNX | 5 | 2 | 5 | 17 | 0.1 | TNX | SIM****H4 | £31.78 |
5 days | View product |
| MFL6B2.5L22TNX | 8 | 2.5 | 4.8 | 22 | 0.1 | TNX | SIM****H6 | £33.28 |
5 days | View product |
| MFL5B1.0L22TNX | 6 | 1 | 1.5 | 22 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL6B2.0L22TNX | 8 | 2 | 3 | 22 | 0.1 | TNX | SIM****H6 | £33.28 |
5 days | View product |
| MFL4B0.5L15TNX | 5 | 0.5 | 1.2 | 15 | 0.05 | TNX | SIM****H4 | £28.84 |
5 days | View product |
| MFL6B3.0L30TNX | 8 | 3 | 6 | 30 | 0.1 | TNX | SIM****H6 | £34.92 |
5 days | View product |
| MFL5B2.0L22TNX | 6 | 2 | 3.8 | 22 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL5B1.5L23TNX | 6 | 1.5 | 3.5 | 23 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL4B1.5L15TNX | 5 | 1.5 | 2.8 | 15 | 0.1 | TNX | SIM****H4 | £28.84 |
5 days | View product |
| MFL5B0.5L22TNX | 6 | 0.5 | 1.2 | 22 | 0.05 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL5B1.0L23TNX | 6 | 1 | 2.5 | 23 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL4B1.0L15TNX | 5 | 1 | 1.5 | 15 | 0.1 | TNX | SIM****H4 | £28.84 |
5 days | View product |
| MFL5B1.5L22TNX | 6 | 1.5 | 2.5 | 22 | 0.1 | TNX | SIM****H5 | £32.58 |
5 days | View product |
| MFL8B2.5L22TNX | 10 | 2.5 | 3.5 | 22 | 0.1 | TNX | SIM****H8 | £39.53 |
5 days | View product |
| MFL4B1.5L17TNX | 5 | 1.5 | 3.5 | 17 | 0.1 | TNX | SIM****H4 | £30.28 |
5 days | View product |
| MFL6B1.5L22TNX | 8 | 1.5 | 2.5 | 22 | 0.1 | TNX | SIM****H6 | £33.28 |
5 days | View product |
| MVR6B2.5L15TNX | 10 | 2.5 | 15 | 0.2 | TNX | SIM****H6 | £66.80 |
5 days | View product | |
| MVR8B3.0L27TNX | 15 | 3 | 27 | 0.2 | TNX | SIM****H8 | £90.93 |
5 days | View product | |
| MVR6B2.0L22TNX | 12 | 2 | 22 | 0.2 | TNX | SIM****H6 | £71.45 |
5 days | View product | |
| MVR8B4.0L43TNX | 20 | 4 | 43 | 0.2 | TNX | SIM****H8 | £109.09 |
5 days | View product | |
| MVR6B2.0L10TNX | 10 | 2 | 10 | 0.2 | TNX | SIM****H6 | £66.80 |
5 days | View product | |
| MVR8B3.0L43TNX | 15 | 3 | 43 | 0.2 | TNX | SIM****H8 | £109.09 |
5 days | View product | |
| MVR6B2.0L15TNX | 12 | 2 | 15 | 0.2 | TNX | SIM****H6 | £66.80 |
5 days | View product | |
| MVR6B3.0L22TNX | 10 | 3 | 22 | 0.2 | TNX | SIM****H6 | £71.45 |
5 days | View product | |
| MVR6B2.5L22TNX | 12 | 2.5 | 22 | 0.2 | TNX | SIM****H6 | £71.45 |
5 days | View product | |
| MZR6R0.5L22TNX | 8 | 1 | 1.2 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MZR4R0.5L15TNX | 5 | 1 | 1.2 | 15 | TNX | SIM****H4 | £28.84 |
5 days | View product | |
| MZR6R0.75L22TNX | 8 | 1.5 | 1.5 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MZR5R0.5L22TNX | 6 | 1 | 1.2 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZR5R1.0L22TNX | 6 | 2 | 2.5 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZR6R1.0L22TNX | 8 | 2 | 2.5 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MZR4R0.75L15TNX | 5 | 1.5 | 1.5 | 15 | TNX | SIM****H4 | £28.84 |
5 days | View product | |
| MZR5R0.75L22TNX | 6 | 1.5 | 1.5 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZL5R0.5L22TNX | 6 | 1 | 1.2 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZL5R0.75L22TNX | 6 | 1.5 | 1.5 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZL4R0.75L15TNX | 5 | 1.5 | 1.5 | 15 | TNX | SIM****H4 | £28.84 |
5 days | View product | |
| MZL5R1.0L22TNX | 6 | 2 | 2.5 | 22 | TNX | SIM****H5 | £32.58 |
5 days | View product | |
| MZL6R1.0L22TNX | 8 | 2 | 2.5 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MZL6R0.75L22TNX | 8 | 1.5 | 1.5 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MZL4R0.5L15TNX | 5 | 1 | 1.2 | 15 | TNX | SIM****H4 | £28.84 |
5 days | View product | |
| MZL6R0.5L22TNX | 8 | 1 | 1.2 | 22 | TNX | SIM****H6 | £33.28 |
5 days | View product | |
| MIR5L15A55TNX | (0.5-1.25mm) (48-24 TPI) | 5.1 | 15 | TNX | SIM****H5 | £30.07 |
5 days | View product | ||
| MIR4L15A55TNX | (0.5-1.0mm) (48-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR6L22A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR6L15A55TNX | (0.5-1.5mm) (48-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 |
5 days | View product | ||
| MIR3L15A55TNX | (0.5-1.0mm) (48-24 TPI) | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR5L22A55TNX | (0.5-1.25mm) (48-20 TPI) | 5.1 | 22 | TNX | SIM****H5 | £31.50 |
5 days | View product | ||
| MIR1L5A60TNX | (0.25-0.35mm) (100-72 TPI) | 1.4 | 5 | TNX | SIM****H3 | £33.77 |
5 days | View product | ||
| MIR4L17A60TNX | (0.35-0.45mm) (72-56 TPI) | 4.1 | 17 | TNX | SIM****H4 | £30.07 |
5 days | View product | ||
| MIR5L15A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 15 | TNX | SIM****H5 | £30.07 |
5 days | View product | ||
| MIR5L22A60TNX | (1.0-1.25mm) (24-20 TPI) | 5.1 | 22 | TNX | SIM****H6 | £31.50 |
5 days | View product | ||
| MIR6L15A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 15 | TNX | SIM****H6 | £30.62 |
5 days | View product | ||
| MIR3L15A60TNX | (0.7-1.0mm) (32-24 TPI) | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR4L15A60TNX | (0.8-1.0mm) (32-24 TPI) | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR6L22A60TNX | (1.0-1.5mm) (24-16 TPI) | 6 | 22 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR2L8A60TNX | (0.45-0.7mm) (56-32 TPI) | 2.1 | 8 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR1.5L6A60TNX | (0.35-0.45mm) (72-56 TPI) | 1.2 | 6 | TNX | SIM****H3 | £33.77 |
5 days | View product | ||
| MIR8L22A60TNX | (1.0-2.0mm) (24-13 TPI) | 8 | 22 | TNX | SIM****H8 | £36.81 |
5 days | View product | ||
| MIR5L151.0ISOTNX | 1 | 4.9 | 15 | TNX | SIM****H5 | £30.07 |
5 days | View product | ||
| MIR3L150.75ISOTNX | 0.75 | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR3L150.7ISOTNX | 0.7 | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR3L150.5ISOTNX | 0.5 | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR3L100.5ISOTNX | 0.5 | 2.4 | 10 | TNX | SIM****H3 | £30.80 |
5 days | View product | ||
| MIR6L221.25ISOTNX | 1.25 | 6.1 | 22 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR4L150.8ISOTNX | 0.8 | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR4L150.5ISOTNX | 0.5 | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR6L221.5ISOTNX | 1.5 | 6.1 | 22 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR4L150.75ISOTNX | 0.75 | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR3L1032UNTNX | 32 | 2.7 | 10 | TNX | SIM****H3 | £30.80 |
5 days | View product | ||
| MIR5L1528UNTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £30.07 |
5 days | View product | ||
| MIR5L1820UNTNX | 20 | 5 | 18 | TNX | SIM****H5 | £30.07 |
5 days | View product | ||
| MIR6L1818UNTNX | 18 | 6.2 | 18 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR3L1536UNTNX | 36 | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR4L1532UNTNX | 32 | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR6L1824UNTNX | 24 | 6.5 | 18 | TNX | SIM****H6 | £32.20 |
5 days | View product | ||
| MIR3L1532UNTNX | 32 | 3.2 | 15 | TNX | SIM****H3 | £29.44 |
5 days | View product | ||
| MIR4L1536UNTNX | 36 | 4.1 | 15 | TNX | SIM****H4 | £29.44 |
5 days | View product | ||
| MIR6L1527NPTTNX | 27 | 5.9 | 15 | 1/16 X 27NPT | 1/8 X 27NPT | TNX | SIM****H6 | £30.62 |
5 days | View product |
| MIR10L525ACMETNX | 5 | 20 | 52 | TNX | SIM****H10 | £66.56 |
5 days | View product | ||
| MIR10L358ACMETNX | 8 | 12.5 | 35 | TNX | SIM****H10 | £55.00 |
5 days | View product | ||
| MIR6L2014ACMETNX | 14 | 6 | 20 | TNX | SIM****H6 | £35.23 |
5 days | View product | ||
| MIR4L1516ACMETNX | 16 | 4.6 | 15 | TNX | SIM****H4 | £32.30 |
5 days | View product | ||
| MIR7L2212ACMETNX | 12 | 7.2 | 22 | TNX | SIM****H7 | £41.14 |
5 days | View product | ||
| MIR8L3010ACMETNX | 10 | 10 | 30 | TNX | SIM****H8 | £51.89 |
5 days | View product | ||
| MIR10L456ACMETNX | 6 | 14.6 | 45 | TNX | SIM****H10 | £60.55 |
5 days | View product | ||
| MIR10L454TRTNX | 4 | 11.5 | 45 | TR16X4 | TR18X4 | TR20X4 | TNX | £60.69 |
5 days | View product |
| MIR7L252TRTNX | 2 | 6.9 | 25 | TR9X2 | TR10X2 | TR11X2 | TR12X2 | £45.19 |
5 days | View product |
| MIR7L353TRTNX | 3 | 7.5 | 35 | TR11X3 | TR12X3 | TNX | SIM****H7 | £49.66 |
5 days | View product |
| MIR10L352TRTNX | 2 | 11 | 35 | TR14X2 | TR16X2 | TR18X2 | TR20X2 | £54.82 |
5 days | View product |
| MIR10L353TRTNX | 3 | 10.5 | 35 | TR14X3 | TR22X3 | TR24X3 | TR26X3 | £54.82 |
5 days | View product |
| MIR6L221.5TRTNX | 1.5 | 6.4 | 22 | TR8X2 | TR9X2 | TR10X2 | TNX | £39.81 |
5 days | View product |
| MIR10L555TRTNX | 5 | 11 | 55 | TR22X5 | TR24X5 | TR28X5 | TNX | £78.64 |
5 days | View product |
| MIR4L150.8MJTNX | MJ | 0.8 | 4.9 | 15 | TNX | SIM****H4 | £29.51 |
5 days | View product | |
| MIR3L150.7MJTNX | MJ | 0.7 | 3.2 | 15 | TNX | SIM****H3 | £29.51 |
5 days | View product | |
| MIR5L151.0MJTNX | MJ | 1 | 5 | 15 | TNX | SIM****H5 | £29.51 |
5 days | View product | |
| MIR5L1820UNJTNX | 20 | 5 | 18 | TNX | SIM****H5 | £29.51 |
5 days | View product | ||
| MIR3L1532UNJTNX | 32 | 3.2 | 15 | TNX | SIM****H3 | £29.51 |
5 days | View product | ||
| MIR5L1528UNJTNX | 28 | 4.9 | 15 | TNX | SIM****H5 | £29.51 |
5 days | View product | ||
| MIR5L1720WTNX | G55° BSW | 20 | 4.7 | 17 | TNX | SIM****H5 | £30.80 |
5 days | View product | |
| MIR6L1719WTNX | 19 | 7 | 17 | TNX | SIM****H6 | £35.23 |
5 days | View product | ||
| MIR6L1728WTNX | 28 | 6.5 | 17 | TNX | SIM****H6 | £35.23 |
5 days | View product |
