Widin
|
Authorised UK Distributor

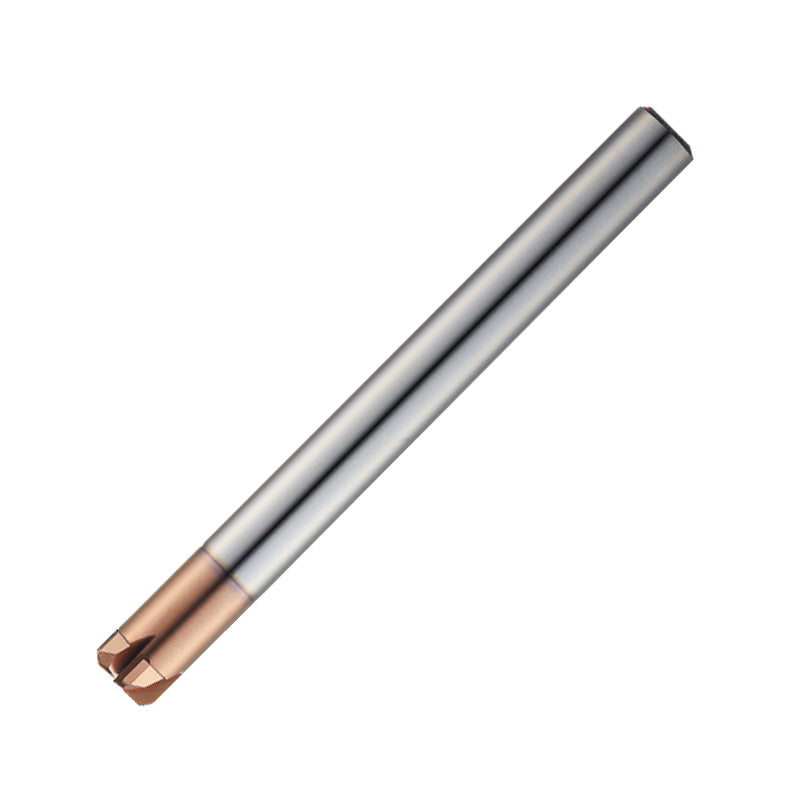

Widin Carbide Corner Radius End Mill
4 Flute Stub Cut Length (ZSPM4)
A high-performance end mill designed to deliver exceptional results in precision machining applications. This end mill features a straight flute type, which enhances rigidity and minimizes corner damage during cutting operations. By providing optimal stability and control, it ensures clean and accurate machining results. The ZSPM4 is equipped with a Back Draft Type cutting edge, which effectively reduces chattering and movement during the machining process. This feature further enhances the tool's performance, allowing for smoother and more efficient cutting operations. With reduced vibration and improved stability, you can achieve superior surface finishes and maintain tight tolerances with ease.
Click any SKU to view full product details, specifications and datasheets.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESPM4030-05 | 3 | 4 | 1.2 | 50 | 6 | 8 | 0.5 |
£11.91 |
5 days | View |
| ESPM4040-05 | 4 | 4 | 1.5 | 50 | 6 | 10 | 0.5 | £29.78 | 5 days |
|
| ESPM4060-05 | 6 | 4 | 2.5 | 60 | 6 | 12 | 0.5 | £33.56 | 5 days |
|
| ESPM4060-10 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1 | £33.56 | 5 days |
|
| ESPM4060-15L | 6 | 4 | 2.5 | 90 | 6 | 12 | 1.5 | £39.75 | 5 days |
|
| ESPM4060-15 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1.5 | £33.56 | 5 days |
|
| ESPM4080-10 | 8 | 4 | 3.5 | 60 | 8 | 16 | 1 | £43.52 | 5 days |
|
| ESPM4080-20 | 8 | 4 | 3.5 | 60 | 8 | 16 | 2 |
£17.40 |
In Stock |
|
| ESPM4080-20L | 8 | 4 | 3.5 | 100 | 8 | 16 | 2 | £53.20 | 5 days |
|
| ESPM4100-10 | 10 | 4 | 4 | 70 | 10 | 20 | 1 | £61.32 | 5 days |
|
| ESPM4100-20 | 10 | 4 | 4 | 70 | 10 | 20 | 2 | £61.32 | In Stock |
|
| ESPM4100-20L | 10 | 4 | 4 | 100 | 10 | 20 | 2 |
£29.68 |
5 days | View |
| ESPM4120-20 | 12 | 4 | 5 | 80 | 12 | 25 | 2 | £89.13 | 5 days |
|
| ESPM4120-30 | 12 | 4 | 5 | 80 | 12 | 25 | 3 | £89.13 | 5 days |
|
| ESPM4120-30L | 12 | 4 | 5 | 110 | 12 | 25 | 3 | £100.27 | 5 days |
|
