Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length - 12mm x 80mm x R2.0

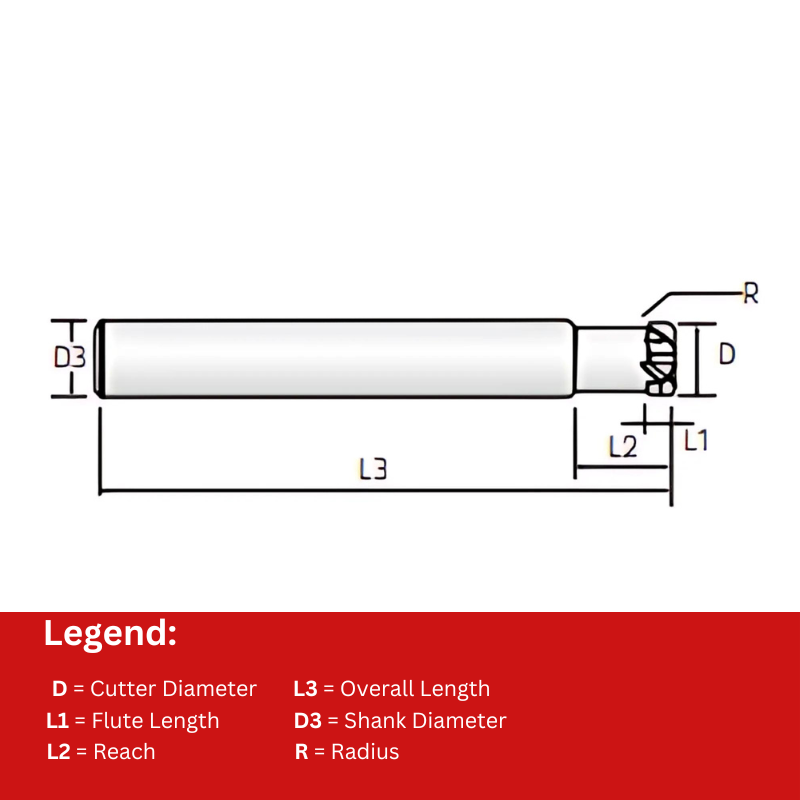

| Cutter Diameter | 12 |
| Number of Flutes | 4 |
| Flute Length | 5 |
| Overall Length | 80 |
| Shank Diameter | 12 |
| Reach | 25 |
Learn more about Klarna

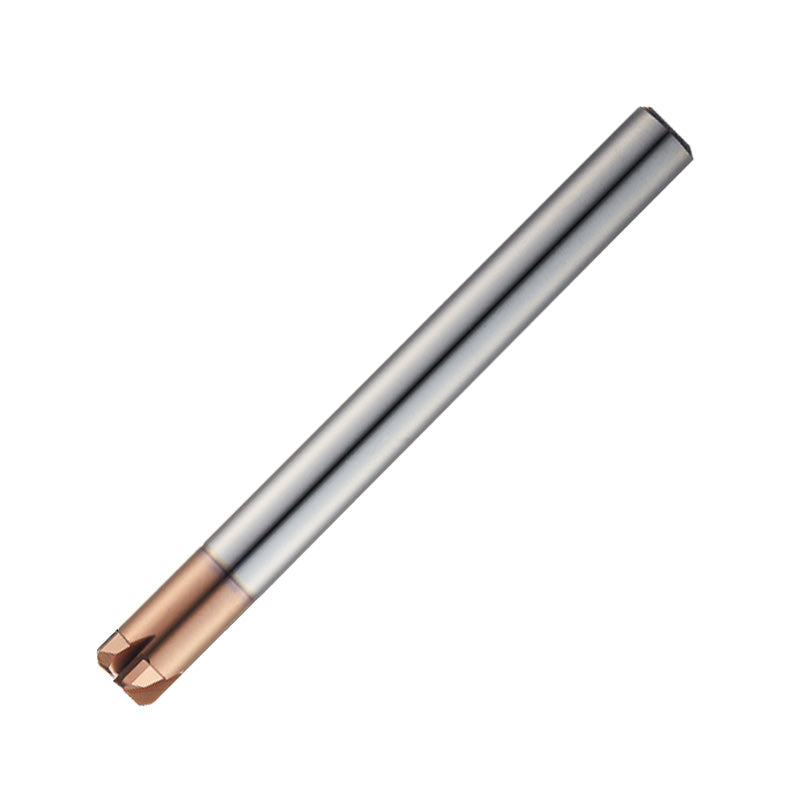

Introducing the Widin Carbide Corner Radius End Mill, a precision milling tool designed for engineers and machinists who demand clean corners, tight tolerances, and reliable performance. This 12 mm diameter, 80 mm total length end mill with a 2.0 mm corner radius is built for demanding cutting operations where stability matters.
- Diameter: 12 mm
- Overall length: 80 mm
- Corner radius: R2.0 (2.0 mm)
- Flute configuration: 4-flute, straight flute for enhanced rigidity and precise corner control
- Material: Carbide for high hardness, wear resistance, and long tool life
- Cutting edge: Back Draft Type edge to reduce chatter and improve stability during cutting
This end mill is specifically designed to minimize deflection and corner damage, delivering smoother cutting action and superior surface finishes. The straight flute geometry provides rigidity essential for repeatable accuracy, while the back draft cutting edge helps suppress vibration, enabling consistent results across a range of materials and applications. The stub-cut length further enhances stability in deep or narrow features, making it a dependable choice for precise pocketing, finish passes, and radii work.
| Cutter Diameter | 12 |
| Number of Flutes | 4 |
| Flute Length | 5 |
| Overall Length | 80 |
| Shank Diameter | 12 |
| Reach | 25 |
| Corner Radius | 2 |
What time are Protool open?
We are open Monday to Friday between 8:30am and 5pm.
Do you offer Free Next Day delivery?
Yes! We offer Free Next Day delivery via Royal Mail Tracked 24 on all orders over £50 ex VAT*. We also offer Free DPD Local Next Day delivery on all orders over £100 ex VAT*.
We also offer the following:
- Royal Mail Tracked 24 — £5.90 (FREE on orders over £50 ex VAT*). Order before 4:30pm for next day delivery. No signature required.
- DPD Local Next Day — £8.00 (FREE on orders over £100 ex VAT*). Standard next day delivery to UK mainland addresses.
- Royal Mail Special Delivery — £12.50. Guaranteed delivery before 1pm the next working day.
- DPD Saturday Delivery — £25.00. Must be ordered on Friday before 4pm. Pre-12pm delivery.
For delivery to Scottish Highlands & Islands, Northern Ireland, Republic of Ireland, or overseas locations, additional charges apply. Please see our delivery page for full details, or call us on 01732 887 334.
*T's & C's and exclusions apply. Please see our delivery page for more information on all our services.
Full Range: Widin Carbide Corner Radius End Mill - 4 Flute Stub Cut Length (ZSPM4)
View full collection →You are viewing ESPM4120-20. Click any other SKU to view its full details.
| Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Corner Radius | Price | Stock | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| ESPM4030-05 | 3 | 4 | 1.2 | 50 | 6 | 8 | 0.5 | £11.91 | 5 days | View |
| ESPM4040-05 | 4 | 4 | 1.5 | 50 | 6 | 10 | 0.5 | £29.78 | 5 days | |
| ESPM4060-05 | 6 | 4 | 2.5 | 60 | 6 | 12 | 0.5 | £33.56 | 5 days | |
| ESPM4060-10 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1 | £33.56 | 5 days | |
| ESPM4060-15L | 6 | 4 | 2.5 | 90 | 6 | 12 | 1.5 | £39.75 | 5 days | |
| ESPM4060-15 | 6 | 4 | 2.5 | 60 | 6 | 12 | 1.5 | £33.56 | 5 days | |
| ESPM4080-10 | 8 | 4 | 3.5 | 60 | 8 | 16 | 1 | £43.52 | 5 days | |
| ESPM4080-20 | 8 | 4 | 3.5 | 60 | 8 | 16 | 2 | £17.40 | In Stock | |
| ESPM4080-20L | 8 | 4 | 3.5 | 100 | 8 | 16 | 2 | £53.20 | 5 days | |
| ESPM4100-10 | 10 | 4 | 4 | 70 | 10 | 20 | 1 | £61.32 | 5 days | |
| ESPM4100-20 | 10 | 4 | 4 | 70 | 10 | 20 | 2 | £61.32 | In Stock | |
| ESPM4100-20L | 10 | 4 | 4 | 100 | 10 | 20 | 2 | £29.68 | 5 days | View |
| ESPM4120-20 Viewing | 12 | 4 | 5 | 80 | 12 | 25 | 2 | £89.13 | 5 days | |
| ESPM4120-30 | 12 | 4 | 5 | 80 | 12 | 25 | 3 | £89.13 | 5 days | |
| ESPM4120-30L | 12 | 4 | 5 | 110 | 12 | 25 | 3 | £100.27 | 5 days |
